RE 210 (7800952-00) - Snapper 33" Rear-Engine Riding Mower, 15.5hp Console & Gas Tank Group Parts Diagram

33" Rear-Engine Riding Mower, 15.5hp

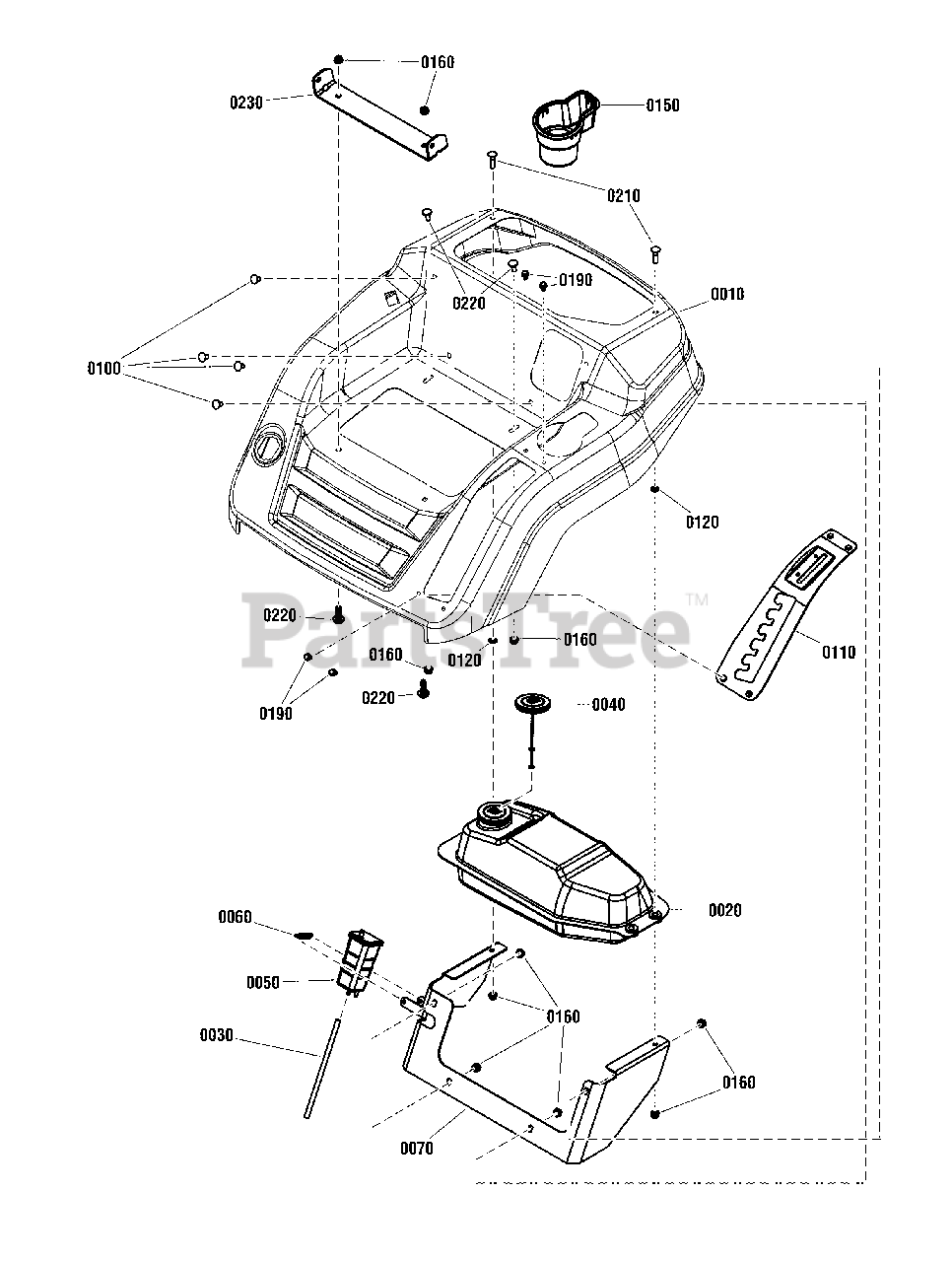

Console & Gas Tank Group Parts Diagram

  • Title

0010

Snapper 7301327DYP

CONSOLE, Seat/Controls - Hydro, Red

$404.99

$

Usually ships in 2-12 days

0

0020

Snapper 7105576YP

ASSEMBLY, Fuel Tank
(Superseded to 7106241YP)

$229.99

$

Usually ships in 2-12 days

0

0040

Snapper 7105682YP

ASSEMBLY, Fuel Cap, Non-Vented

$

$

Not available

0030

Snapper 7106041YP

HOSE, Vapor, 10" Long

$

$

Not available

0050

Snapper 7104634YP

CANISTER, Carbon, 140CC
(Superseded to 1687882)

$86.99

$

Usually ships in 2-12 days

0

0060

Snapper 7104930YP

SPRING, Tension, 1.95 FWD React

$4.99

$

Usually ships in 2-12 days

0

0070

Snapper 7301342BMYP

BRACKET, Fuel Tank Mounting

$95.99

$

Usually ships in 2-12 days

0

0100

Snapper 703125

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear
(Superseded to 703447)

$4.49

$

In Stock, Qty 18

0

0110

Snapper 7301262BMYP

PLATE, HOC Detent

$28.99

$

Usually ships in 2-12 days

0

0120

Snapper 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0150

Snapper 7105766YP

CUP HOLDER

$16.99

$

Usually ships in 2-12 days

0

0160

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.99

$

In Stock, Qty 20+

0

0190

Snapper 703953

SCREW, 1/4-20 X 5/8, Torx Pan Head Self-Tapping, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0210

Snapper 703446

BOLT, 5/16-18 X 1.25, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0220

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0230

Snapper 1750968BMYP

BRACKET, Seat Pivot

$18.99

$

Usually ships in 2-12 days

0
