RE-5 (990915) - Homelite Lawn Tractor, 5hp Engine, Seat & Hood Group (3855I01) Parts Diagram

Lawn Tractor, 5hp

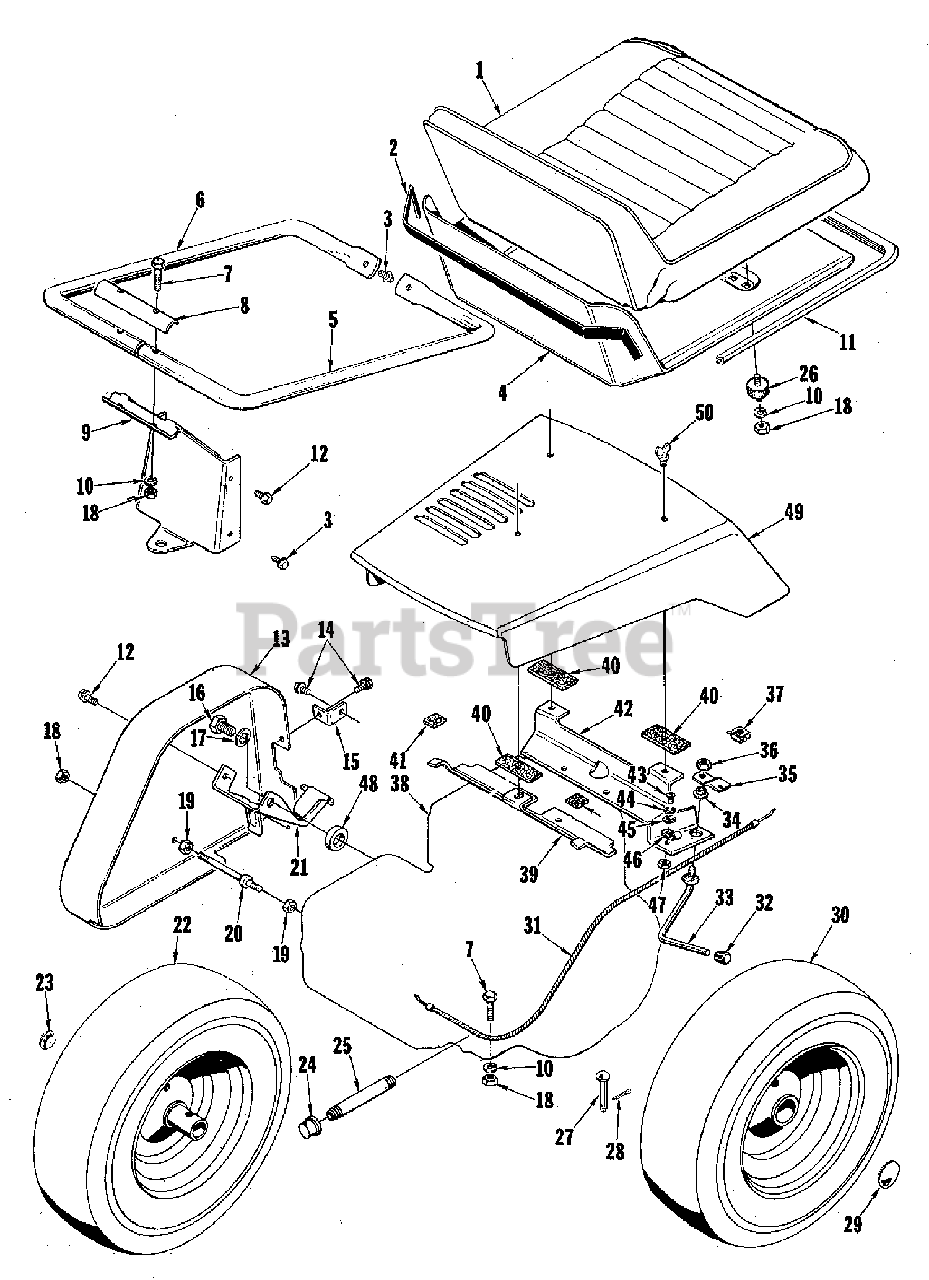

Engine, Seat & Hood Group (3855I01) Parts Diagram

  • Title

1

Simplicity LM-16020-94

PAD, Seat

$

$

Not available

2

Simplicity LM-01591-77

TAPE, Seat Pan

$

$

Not available

3

Simplicity LM-09250-03

SCREW, Taptite, 1/4-20 x 1/2

$

$

Not available

4

Simplicity LM-01650-66

PANEL, Seat

$

$

Not available

5

Simplicity LM-01746-29

HANDLE, R.H., Rear

$

$

Not available

6

Simplicity LM-01585-83

HANDLE, L.H., Rear

$

$

Not available

7

Simplicity LM-09199-33

SCREW, Hex Cap, 5/16-18 x 1-1/2

$

$

Not available

8

Simplicity LM-01585-84

BRACKET, Handle Support

$

$

Not available

9

Simplicity LM-01585-18

PLATE, Hitch, Rear

$

$

Not available

10

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

11

Simplicity LM-16048-92

TRIM, "U" Channel

$

$

Not available

12

Simplicity LM-09248-56

SCREW, Hex Swage, 5/16-18 x 1/2

$

$

Not available

13

Simplicity LM-01585-77

GUARD, Pulley

$

$

Not available

14

Simplicity LM-09287-29

SCREW, Hex Taptite, 5/16-18 x 3/8

$

$

Not available

15

Simplicity LM-01766-11

BRACKET, Pulley Guard

$

$

Not available

16

Simplicity LM-09240-86

SCREW, Hex Cap, 1/2-20 x 3/4

$

$

Not available

17

Simplicity LM-09095-89

WASHER, Lock, 1/2

$

$

Not available

18

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

19

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

20

Simplicity LM-01584-18

STUD, Pulley Guard

$

$

Not available

21

Simplicity LM-01585-27

STOP, Belt

$

$

Not available

22

Simplicity LM-16083-81

WHEEL & TIRE, L.H., Rear, 4.8 x 4.0 x 8

$

$

Not available

23

Simplicity LM-10584-33

BUTTON, Plug

$

$

Not available

24

Simplicity LM-09017-51

CAP, Pipe

$

$

Not available

25

Simplicity LM-01586-10

NIPPLE, Pipe

$

$

Not available

26

Simplicity LM-01590-85

CONNECTOR, Cushion

$

$

Not available

27

Simplicity LM-01180-53

PIN

$

$

Not available

28

Simplicity LM-09184-51

PIN, Cotter, 1/8 x 3/4

$

$

Not available

29

Simplicity LM-01584-36

BUTTON, Plug

$

$

Not available

30

Simplicity LM-16083-83

WHEEL & TIRE, R.H., Rear, 4/8 x 4.0 x 8

$

$

Not available

31

Simplicity LM-01584-25

CABLE & WIRE, Throttle

$

$

Not available

32

Simplicity LM-01591-12

KNOB

$

$

Not available

33

Simplicity LM-01585-87

HANDLE

$

$

Not available

34

Simplicity LM-01591-07

WASHER, Throttle

$

$

Not available

35

Simplicity LM-01584-24

ARM, Throttle

$

$

Not available

36

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

37

Simplicity LM-09287-01

NUT, Tinnerman

$

$

Not available

38

ENGINE, 5 HP

$

$

Not available

39

Simplicity LM-01584-49

SUPPORT, Hood, Rear

$

$

Not available

40

Simplicity LM-01213-99

GASKET, Felt

$

$

Not available

41

Simplicity LM-01575-82

GASKET, Felt

$

$

Not available

42

Simplicity LM-01747-46

SUPPORT, Hood, Front

$

$

Not available

43

Simplicity LM-09174-52

SCREW, Round, #10-32 x 1/2

$

$

Not available

44

Simplicity LM-09227-11

WASHER, Lock, Extension Tooth #10

$

$

Not available

45

Simplicity LM-09232-12

WASHER, Flat, #10

$

$

Not available

46

Simplicity LM-01584-75

CLIP

$

$

Not available

47

Simplicity LM-09174-15

NUT, Hex, #10-32

$

$

Not available

48

Simplicity LM-09184-31

WASHER, Flat, 1/2

$

$

Not available

49

Simplicity LM-01585-15

HOOD

$

$

Not available

50

Simplicity LM-09286-93

SCREW, Thumb, 5/16-18 x 3/4

$

$

Not available
