RE-5 (990915) - Homelite Lawn Tractor, 5hp Mower Deck & Arbor Housing Group (3855I05) Parts Diagram

Lawn Tractor, 5hp

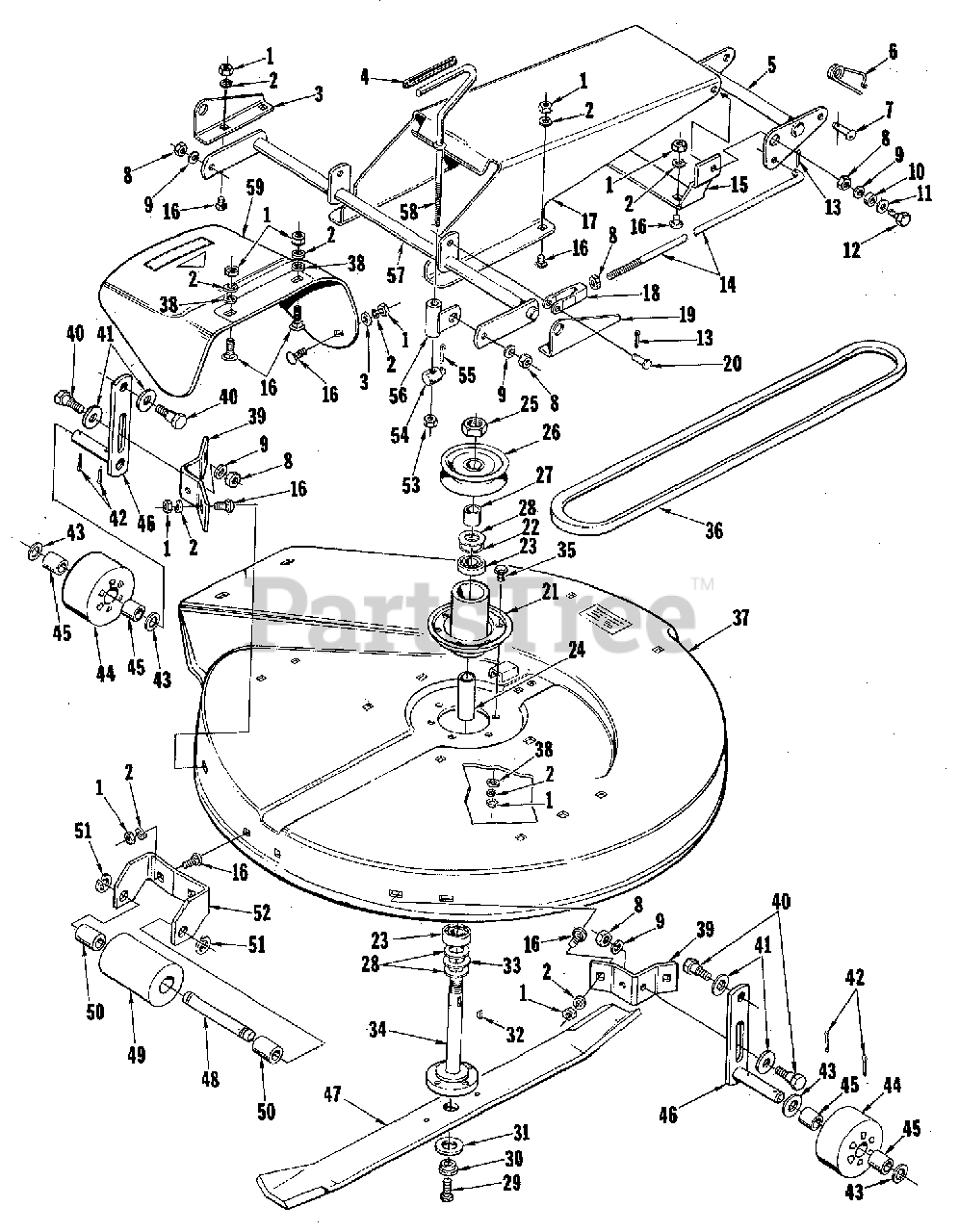

Mower Deck & Arbor Housing Group (3855I05) Parts Diagram

  • Title

1

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

2

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

3

Simplicity LM-01767-69

BRACKET, Pivot, L.H.

$

$

Not available

4

Simplicity LM-01769-85

GRIP, Handle

$

$

Not available

5

Simplicity LM-01767-63

BELL CRANK

$

$

Not available

6

Simplicity LM-01760-12

PIN, Clip, Safety

$

$

Not available

7

Simplicity LM-01180-53

PIN

$

$

Not available

8

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

9

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

10

Simplicity LM-01530-81

SPACER

$

$

Not available

11

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

12

Simplicity LM-09077-31

SCREW, Hex Cap, 3/8-16 x 1

$

$

Not available

13

Simplicity LM-09184-47

PIN, Cotter, 3/32 x 3/4

$

$

Not available

14

Simplicity LM-01767-68

ROD, Height Adjustable

$

$

Not available

15

Simplicity LM-01767-37

BRACKET

$

$

Not available

16

Simplicity LM-09194-13

BOLT, Carriage, 5/16-18 x 5/8

$

$

Not available

17

Simplicity LM-01767-38

COVER, Belt

$

$

Not available

18

Simplicity LM-01081-57

CLEVIS, Adjustable

$

$

Not available

19

Simplicity LM-01767-70

BRACKET, Pivot, R.H.

$

$

Not available

20

Simplicity LM-09230-87

PIN, Yoke

$

$

Not available

21

Simplicity LM-16086-64

ARBOR TUBE ASSEMBLY

$

$

Not available

22

Simplicity LM-01081-34

RING, Backing

$

$

Not available

23

Simplicity LM-01082-02

BEARING

$

$

Not available

24

Simplicity LM-16022-65

SPACER

$

$

Not available

25

Simplicity LM-16070-21

NUT, Lock, Jam, 3/4-16

$

$

Not available

26

Simplicity LM-01749-10

PULLEY

$

$

Not available

27

Simplicity LM-01749-00

SPACER

$

$

Not available

28

Simplicity LM-01084-72

WASHER, Special

$

$

Not available

29

Simplicity LM-16059-33

SCREW, Hex, Cap, 1/2-20 x 1-1/2

$

$

Not available

30

Simplicity LM-16057-45

WASHER, Shoulder

$

$

Not available

31

Simplicity LM-16057-46

WASHER, Belleville

$

$

Not available

32

Simplicity LM-09183-12

KEY, Woodruff, #61

$

$

Not available

33

Simplicity LM-01082-57

WASHER, Special

$

$

Not available

34

Simplicity LM-01746-03

ARBOR ASSEMBLY

$

$

Not available

35

Simplicity LM-09173-97

SCREW, Hex Cap, 5/16-18 x 3/4

$

$

Not available

36

Simplicity LM-01749-11

BELT, Mower Drive

$

$

Not available

37

Simplicity LM-16021-81

HOUSING, 26" Mower

$

$

Not available

38

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

39

Simplicity LM-16022-11

BRACKET, Roller Support

$

$

Not available

40

Simplicity LM-16021-86

BOLT, Shoulder

$

$

Not available

41

Simplicity LM-09184-30

WASHER, Flat, 7/16

$

$

Not available

42

Simplicity LM-09184-58

PIN, Cotter, 3/16 x 1

$

$

Not available

43

Simplicity LM-09193-87

WASHER, Flat

$

$

Not available

44

Simplicity LM-16032-06

ROLLER ASSEMBLY, 3-1/2 O.D.

$

$

Not available

45

Simplicity LM-01084-19

BUSHING

$

$

Not available

46

Simplicity LM-16076-03

SUPPORT, Roller

$

$

Not available

47

Simplicity LM-16075-34

BLADE, Mower, 26"

$

$

Not available

48

Simplicity LM-16032-05

SHAFT, Center Roller

$

$

Not available

49

Simplicity LM-01084-31

ROLLER ASSEMBLY

$

$

Not available

50

Simplicity LM-01084-19

BUSHING

$

$

Not available

51

Simplicity LM-16021-55

RING, "E"

$

$

Not available

52

Simplicity LM-16032-04

BRACKET, Center Roller

$

$

Not available

53

Simplicity LM-09234-28

NUT, Hex, Lock, 3/8-16 x 1-1/4

$

$

Not available

54

Simplicity LM-01081-72

PIVOT

$

$

Not available

55

Simplicity LM-09220-00

PIN, Cotter, 3/32 x 5/8

$

$

Not available

56

Simplicity LM-01767-77

GUIDE, Rod

$

$

Not available

57

Simplicity LM-01767-65

LEVER, Rear

$

$

Not available

58

Simplicity LM-01767-75

HANDLE

$

$

Not available

59

Simplicity LM-01748-20

DEFLECTOR

$

$

Not available
