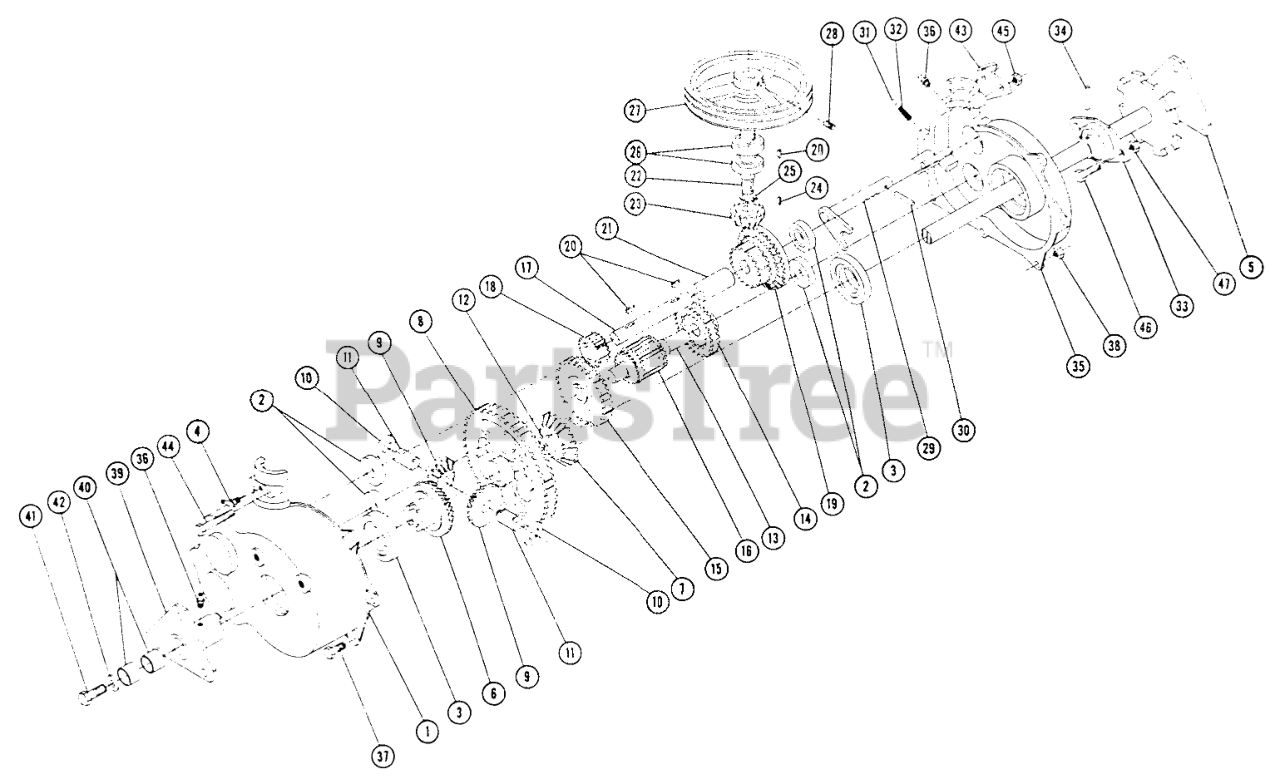

RE-65 - Toro Rear-Engine Riding Mower (1965) Lawn Skiff Transmission #5050 Parts List Parts Diagram

Rear-Engine Riding Mower

Lawn Skiff Transmission #5050 Parts List Parts Diagram

  • Title

1

Toro 5738

DISCONTINUED

$

$

Not available

2

Toro 5740

See Supercession: 7060
(Superseded to 7060)

$

$

Not available

3

Toro 5741

DISCONTINUED

$

$

Not available

4

Toro 1481

FITTING-GREASE

$6.99

$

In Stock, only 2 left!

0

5

Toro 5742

Ass-y. Axle

$

$

Currently unavailable

6

Toro 6328

4XC6475 GIS ROTARY

$3.23

$

Usually ships in 3-6 days

0

7

Toro 5747

DISCONTINUED

$

$

Not available

8

Toro 5745

DISCONTINUED

$

$

Not available

9

Toro 5748

DISCONTINUED

$

$

Not available

10

Toro 5749

DISCONTINUED

$

$

Not available

11

Toro 5750

DISCONTINUED

$

$

Not available

12

Toro 937017

WOODRUFF KEY

$

$

Not available

13

Toro 5751

DISCONTINUED

$

$

Not available

14

Toro 5752

See Supercession: 105174
(Superseded to 105174)

$372.99

$

Usually ships in 3-6 days

0

15

Toro 5755

DISCONTINUED

$

$

Not available

16

Toro 5758

DISCONTINUED

$

$

Not available

17

Toro 5760

Shaft-Hi Low Pinion

$

$

Currently unavailable

18

Toro 5761

DISCONTINUED

$

$

Not available

19

Toro 5762

DISCONTINUED

$

$

Not available

20

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 16

0

21

Toro 5763

Spacer

$

$

Currently unavailable

22

Toro 5764

Shaft Input

$

$

Currently unavailable

23

Toro 5765

DUP PART SEE $BOOK

$

$

Not available

24

Toro 937007

WOODRUFF KEY

$

$

Not available

25

Toro 936117

See Supercession: 32151-84
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

26

Toro 6192

DISCONTINUED

$

$

Not available

27

Toro 5766

DISCONTINUED

$

$

Not available

28

Toro 909850-6

Set Screw 1/4-20 x 3/8

$

$

Currently unavailable

29

Toro 5767

DISCONTINUED

$

$

Not available

30

Toro 933190

PIN-SPIROL

$

$

Not available

31

Toro 3517

BALL-DETENT

$0.99

$

In Stock, only 3 left!

0

32

Toro 6188

DUP PART SEE $BOOK

$

$

Not available

33

Toro 5770

See Supercession: 110115
(Superseded to 110115)

$

$

Not available

34

Toro 933171

Spirol Pin
(Superseded to 32121-94)

$

$

Not available

35

Toro 5739

DISCONTINUED

$

$

Not available

36

Toro 1030

DUP PART SEE $BOOK

$

$

Not available

37

Toro 908018-4

Bolt, 5/16-18 X 7/8

$

$

Currently unavailable

38

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

39

Toro 5771

Ass-y Hub Flange

$

$

Currently unavailable

40

Toro 1504

BUSHING-BRONZE

$53.99

$

Usually ships in 3-6 days

0

41

Toro 908032-6

Bolt 3/8-16 x 3/4 Hex

$

$

Currently unavailable

42

Toro 2844

WASHER

$3.49

$

In Stock, Qty 16

0

43

Toro 5823

Bracket-Shift Rod

$

$

Currently unavailable

44

Toro 908025-4

Bolt Hex 5/6-18 X 2-1/2

$

$

Currently unavailable

45

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

46

Toro 908031-4

Bolt Hex 3/8-16 x 5/8

$

$

Currently unavailable

47

Toro 915113-6

Nut

$

$

Currently unavailable
