RE-8 (990946) - Homelite Lawn Tractor, 8hp Front Frame & Steering Group (3856I01) Parts Diagram

Lawn Tractor, 8hp

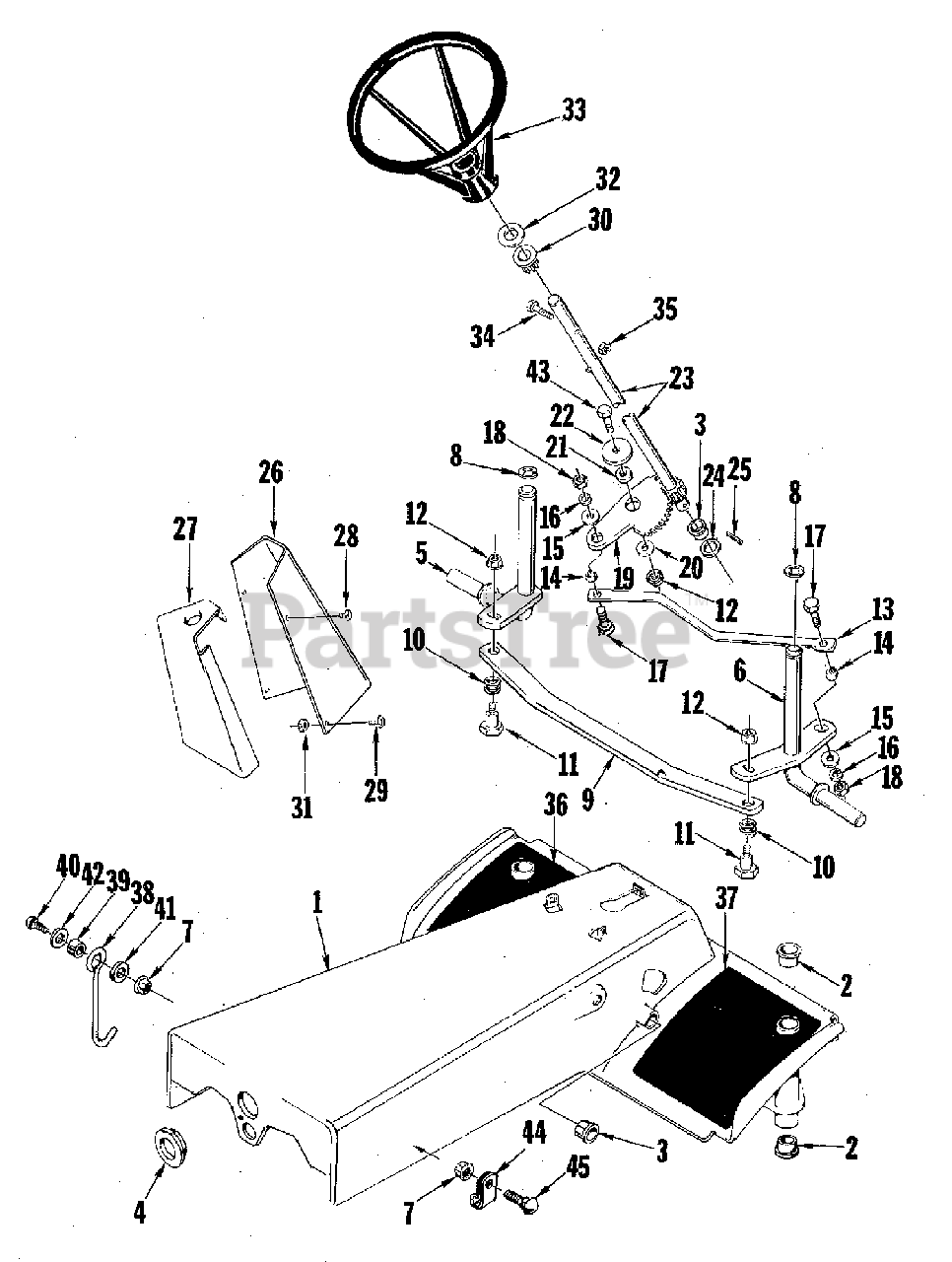

Front Frame & Steering Group (3856I01) Parts Diagram

  • Title

1

Simplicity LM-01754-52

FRAME FRONT ASSEMBLY

$

$

Not available

2

Simplicity LM-01764-40

BUSHING

$

$

Not available

3

Simplicity LM-01764-44

BUSHING

$

$

Not available

4

Simplicity LM-01764-41

BUSHING, Pivot

$

$

Not available

5

Simplicity LM-01756-51

SPINDLE

$

$

Not available

6

Simplicity LM-01756-54

SPINDLE

$

$

Not available

7

Simplicity LM-09290-01

NUT, Flange, 5/16-18

$

$

Not available

8

Simplicity LM-01572-86

RING, Retaining

$

$

Not available

9

Simplicity LM-01767-11

ROD, Tie

$

$

Not available

10

Simplicity LM-01585-78

SPRING

$

$

Not available

11

Simplicity LM-01084-12

BOLT, Shoulder

$

$

Not available

12

Simplicity LM-07180-64

NUT, Flange, 3/8-26

$

$

Not available

13

Simplicity LM-01756-76

LINK, Drag

$

$

Not available

14

Simplicity LM-01756-48

BUSHING

$

$

Not available

15

Simplicity LM-09176-42

WASHER, Plain, 5/16

$

$

Not available

16

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

17

Simplicity LM-09174-00

SCREW, Hex, 3/8-16 x 1-1/4

$

$

Not available

18

Simplicity LM-09169-50

NUT, Hex Full, 3/8-16

$

$

Not available

19

Simplicity LM-01756-17

GEAR, Steering

$

$

Not available

20

Simplicity LM-01729-08

WASHER

$

$

Not available

21

Simplicity LM-01765-00

BUSHING

$

$

Not available

22

Simplicity LM-81611-99

WASHER, Special

$

$

Not available

23

Simplicity LM-01756-13

SHAFT, Steering

$

$

Not available

24

Simplicity LM-01212-10

WASHER

$

$

Not available

25

Simplicity LM-07220-10

PIN, Cotter, 1/8 x 1-1/4

$

$

Not available

26

Simplicity LM-01763-89

SUPPORT, Steering

$

$

Not available

27

Simplicity LM-01763-91

PANEL, Rear

$

$

Not available

28

Simplicity LM-09221-22

SCREW, Self Tapping, 10 x 1/2

$

$

Not available

29

Simplicity LM-07150-60

SCREW, Flange Head, 1/4-20 x 3/4

$

$

Not available

30

Simplicity LM-01570-77

BUSHING

$

$

Not available

31

Simplicity LM-09260-22

NUT, Retainer, #20-4

$

$

Not available

32

Simplicity LM-01582-23

WASHER

$

$

Not available

33

Simplicity LM-01765-01

WHEEL, Steering

$

$

Not available

34

Simplicity LM-09219-77

SCREW, Hex, 5/16-18 x 1-1/4

$

$

Not available

35

Simplicity LM-09233-62

NUT, Hex Full Lock, 5/16-18

$

$

Not available

36

Simplicity LM-01768-09

FOOT, Pad

$

$

Not available

37

Simplicity LM-01768-10

FOOT, Pad

$

$

Not available

38

Simplicity LM-01768-58

HOOK, Transport

$

$

Not available

39

Simplicity LM-81710-45

SPACER

$

$

Not available

40

Simplicity LM-07030-10

BOLT, Carriage, 5/16-18

$

$

Not available

41

Simplicity LM-01540-26

WASHER

$

$

Not available

42

Simplicity LM-01591-07

WASHER

$

$

Not available

43

Simplicity LM-09287-27

SCREW, Hex Cap, 3/8-16 x 1-1/4

$

$

Not available

44

Simplicity LM-01221-86

CLAMP

$

$

Not available

45

Simplicity LM-09237-00

BOLT, Carriage, 5/16-18 x 1/2

$

$

Not available
