RE-8 (990946) - Homelite Lawn Tractor, 8hp Front & Rear Tires Group (3856I09) Parts Diagram

Lawn Tractor, 8hp

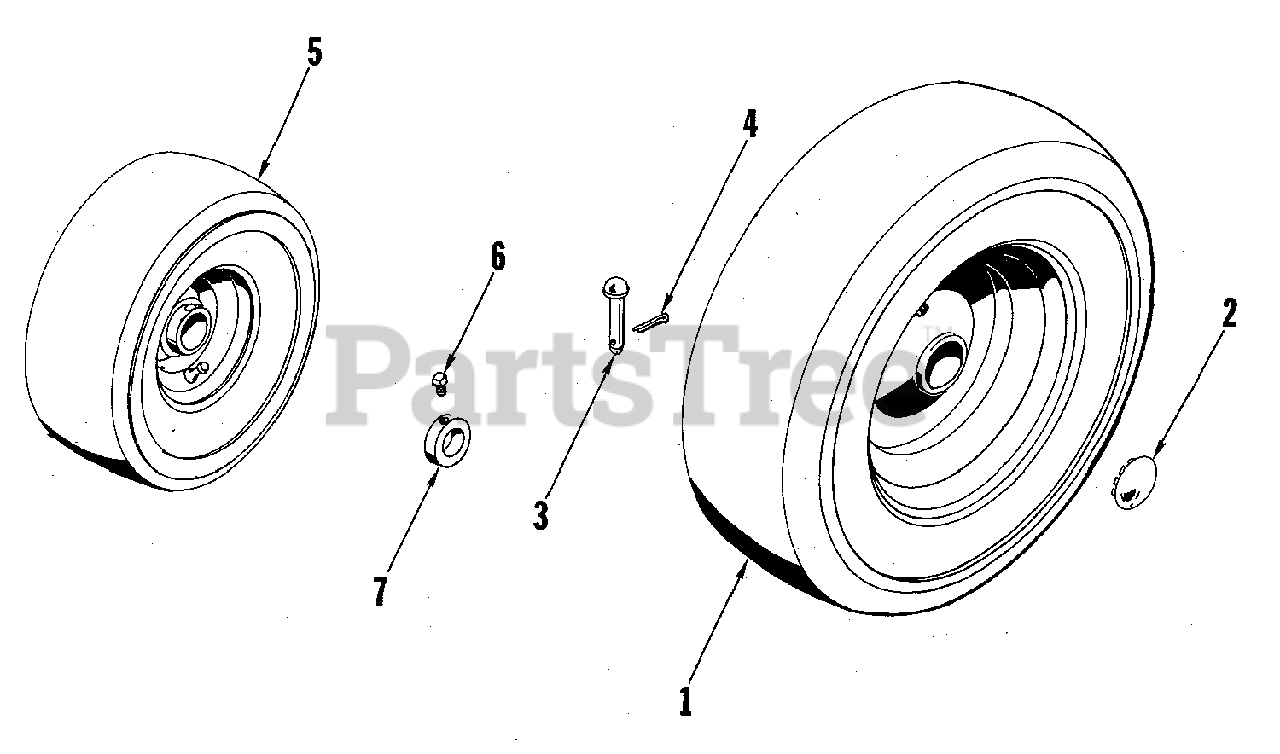

Front & Rear Tires Group (3856I09) Parts Diagram

  • Title

1

Simplicity LM-01718-51

REAR WHEEL & TIRE ASSEMBLY

$

$

Not available

2

Simplicity LM-01584-33

BUTTON, Plug

$

$

Not available

3

Simplicity LM-01180-53

PIN

$

$

Not available

4

Simplicity LM-09184-51

PIN, Cotter, 1/8 x 3/4

$

$

Not available

5

Simplicity LM-01631-06

FRONT WHEEL & TIRE ASSEMBLY

$

$

Not available

6

Simplicity LM-09286-91

SCREW, Set, 5/16-18 x 5/16

$

$

Not available

7

Simplicity LM-80210-10

COLLAR, Set

$

$

Not available
