Rebel - Bad Boy Zero-Turn Mower (2021) DECK CONTROL ASSEMBLY Parts Diagram

Zero-Turn Mower

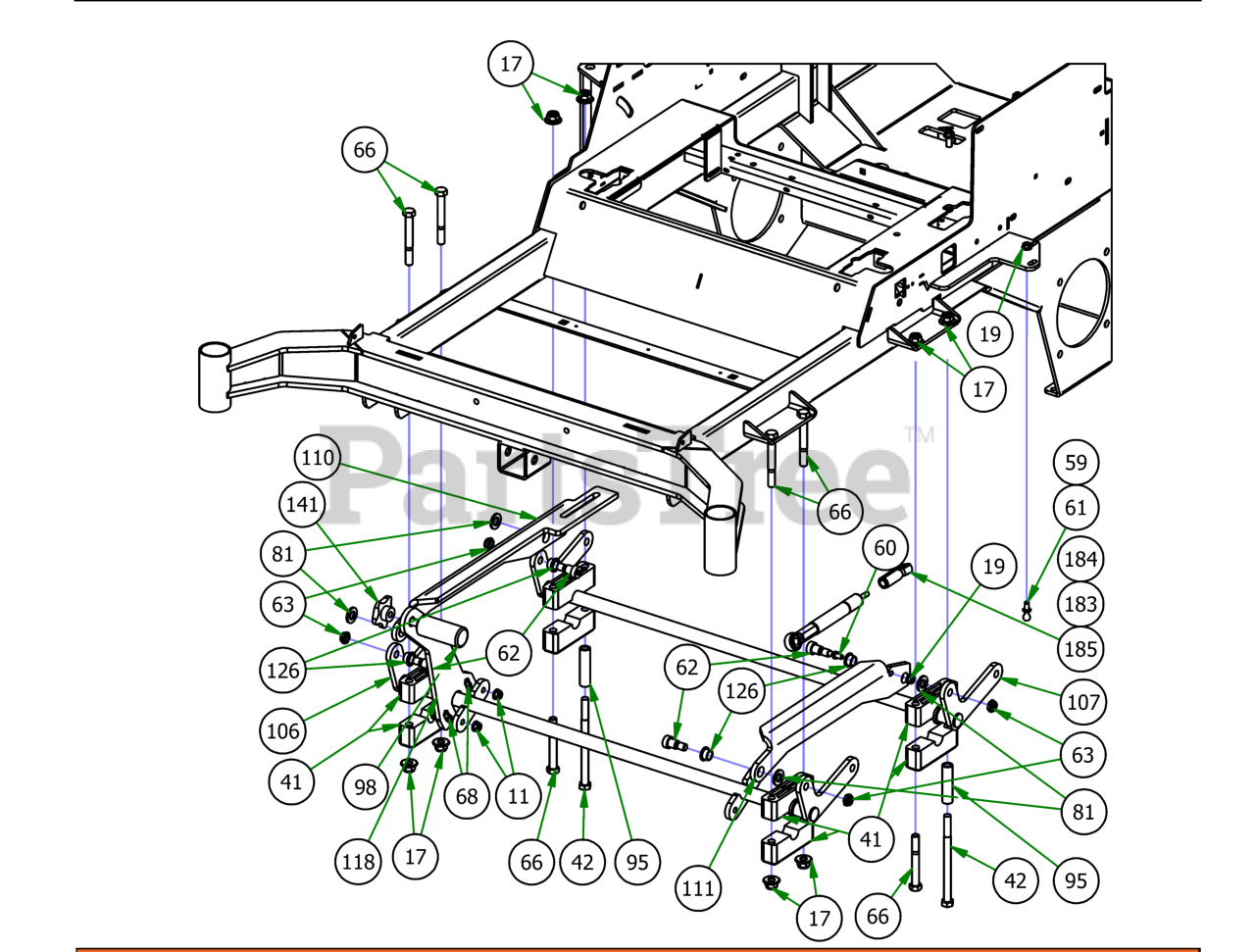

DECK CONTROL ASSEMBLY Parts Diagram

  • Title

11

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

17

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 2 left!

0

41

Bad Boy 017-9075-00

Pillow Block Assembly

$41.99

$

Usually ships in 4-7 days

0

42

Bad Boy 018-0004-00

1/2 x 7 Hex Bolt Grade 5

$5.99

$

In Stock, Qty 6

0

59

Bad Boy 018-2049-00

13mm Damper Ball Stud-Steering

$5.49

$

In Stock, Qty 5

0

60

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 3 left!

0

61

Bad Boy 018-2055-00

10mm Damper Ball Stud-XP Linkage

$2.49

$

In Stock, only 2 left!

0

62

Bad Boy 018-3001-00

5/8'' x 5/8'' Shoulder Bolt

$16.99

$

In Stock, Qty 8

0

63

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 8

0

66

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

68

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

81

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, Qty 5

0

95

Bad Boy 025-0033-00

2019 Deck Stop Spacer

$9.49

$

Usually ships in 4-7 days

0

98

Bad Boy 026-0026-00

Knurled Pedal

$41.99

$

In Stock, only 3 left!

0

106

Bad Boy 028-0026-00

2019 Outlaw Actuator - Front

$136.99

$

Usually ships in 4-7 days

0

107

Bad Boy 028-0027-00

2019 Outlaw Actuator - Rear

$87.99

$

Usually ships in 4-7 days

0

110

Bad Boy 028-6075-00

2019 Actuator Linkage - Right

$56.99

$

Usually ships in 4-7 days

0

111

Bad Boy 028-6076-00

2019 Actuator Linkage - Left

$13.99

$

Usually ships in 4-7 days

0

118

Bad Boy 031-0003-00

Foot Lift Upright Lever

$18.99

$

Usually ships in 4-7 days

0

126

Bad Boy 032-5052-00

Bronze Bushing - SF - 2024-8

$4.99

$

In Stock, Qty 6

0

141

Bad Boy 045-6044-00

Foot Pedal Knob 1/2-13

$13.99

$

In Stock, only 2 left!

0

183

Bad Boy 087-5400-00

200 lb Gas Spring- 54" Deck outlaw

$66.99

$

Usually ships in 4-7 days

0

184

Bad Boy 087-6100-00

250lb Gas Spring - 61" Deck

$83.99

$

In Stock, only 2 left!

0

185

Bad Boy 087-7200-00

300lb Gas Spring - 72" Deck

$66.99

$

In Stock, only 3 left!

0

169

Bad Boy 070-5371-19

2019 Rebel Frame - Powdercoated

$

$

Not available
