Rebel - Bad Boy Zero-Turn Mower (2021) ENGINE - 747cc KOHLER COMMAND Parts Diagram

Zero-Turn Mower

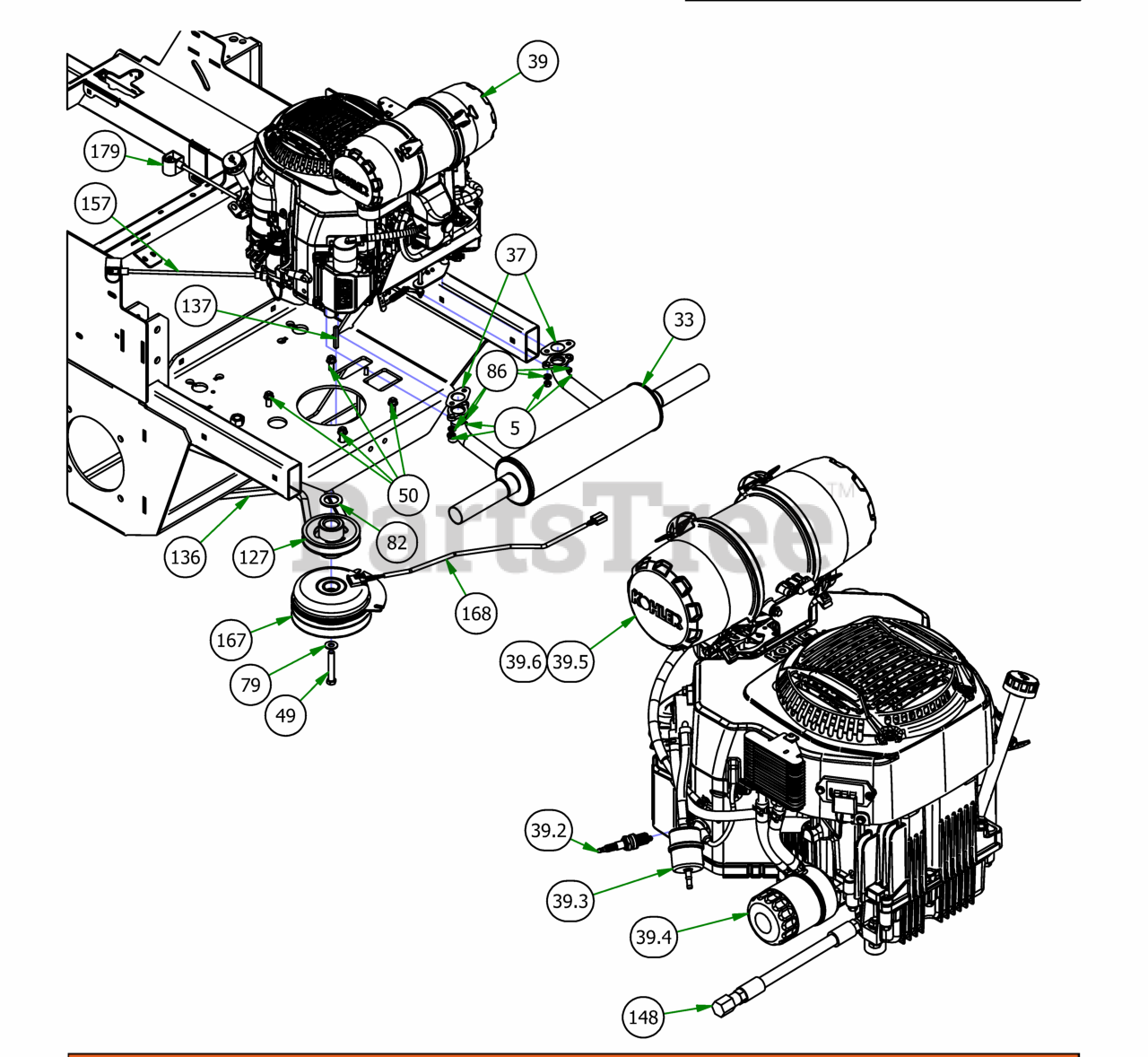

ENGINE - 747cc KOHLER COMMAND Parts Diagram

  • Title

5

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

Usually ships in 4-7 days

0

10

Bad Boy 013-5201-00

3/8-16 HEX SERRATED FLANGE NUT HARD/ZINC

$1.99

$

In Stock, Qty 20+

0

33

Bad Boy 015-1013-00

2019 Rebel Kohler CV752 Muffler

$226.99

$

Usually ships in 4-7 days

0

37

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, only 2 left!

0

39

Bad Boy 015-7520-00

Kohler Command Engine

$2279.99

$

Usually ships in 0 days

0

49

Bad Boy 018-0074-00

7/16-20 x 2 3/4 Hex C/S GR 8 Yellow Zinc

$3.49

$

Usually ships in 4-7 days

0

50

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, only 2 left!

0

72

Bad Boy 018-6012-00

3/8-16 X 1-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 20+

0

79

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, only 1 left!

0

82

Bad Boy 019-6029-00

1 1/8" Flat Spacer

$1.49

$

In Stock, only 2 left!

0

86

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 2 left!

0

127

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

136

Bad Boy 041-8050-00

2019 Rebel Pump Belt

$85.99

$

In Stock, Qty 7

0

137

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 2 left!

0

148

Bad Boy 051-5403-00

Oil drain Hose for Yamaha

$38.99

$

Usually ships in 4-7 days

0

157

Bad Boy 064-5301-01

14" Red Battery Cable-Base Outlaw

$13.99

$

Usually ships in 4-7 days

0

167

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 15

0

168

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

169

Bad Boy 070-5371-19

2019 Rebel Frame - Powdercoated

$

$

Not available

179

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

39.2

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 12

0

39.3

Bad Boy 063-5001-00

25/26 HP Kohler Fuel Filter

$20.99

$

In Stock, Qty 8

0

39.4

Bad Boy 063-5400-00

Oil Filter

$23.99

$

In Stock, Qty 14

0

39.5

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 6

0

39.6

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, only 1 left!

0
