REC-600 - Echo Pneumatic Pole Saw Carburetor Parts Diagram

Pneumatic Pole Saw

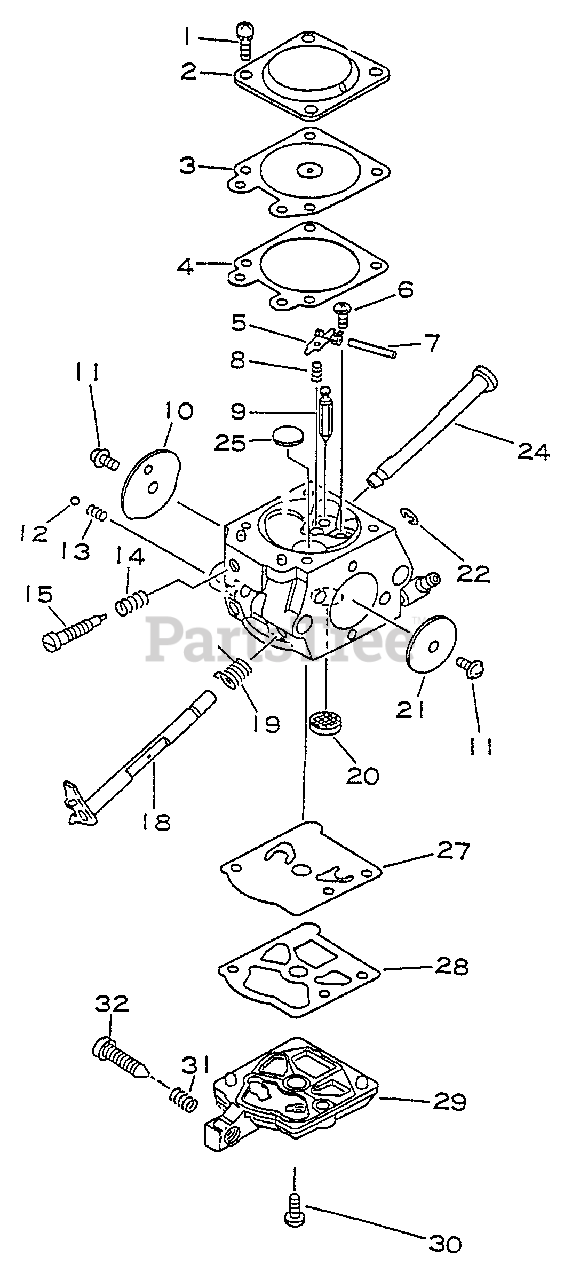

Carburetor Parts Diagram

  • Title

Echo 12300010560

CARBURETOR WT-233
(Superseded to Discontinued)

$

$

Not available

1

------------------

SCREW

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

2

Echo 12314203930

COVER, METERING

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM, METERING

Note: Included in Repair Kit P/N P/N 12310133730 & Repair Kit P/N To Be Announced

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Repair Kit P/N P/N 12310133730 & Repair Kit P/N To Be Announced

$

$

Not available

5

------------------

LEVER, METERING

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

6

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

7

------------------

PIN, METERING LEVER

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

9

Echo 12313704260

VALVE, INLET NEEDLE

$3.99

$

Usually ships in 2-4 days

0

10

------------------

VALVE, CHOKE

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

11

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 17

0

12

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

13

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12312122130

SPRING

$3.49

$

Usually ships in 2-4 days

0

15

Echo 12311840430

NEEDLE - LOW SPEED

$4.49

$

Usually ships in 2-4 days

0

18

Echo 12311710630

SHAFT, THROTTLE
(Superseded to 12311710631)

$

$

Not available

19

Echo 12311315030

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

20

------------------

STRAINER

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

21

Echo 12311605230

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

22

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, Qty 10

0

24

Echo 12313110460

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

25

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

27

------------------

DIAPHRAGM, PURGE

Note: Included in Repair Kit P/N P/N 12310133730 & Repair Kit P/N To Be Announced

$

$

Not available

28

------------------

GASKET, PURGE

Note: Included in Repair Kit P/N P/N 12310133730 & Repair Kit P/N To Be Announced

$

$

Not available

29

Echo 12312410560

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

30

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 2 left!

0

31

Echo 12313326030

SPRING, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

32

Echo 12313403930

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

Echo 12310113730

DIAPHRAGM/GASKET KIT
(Superseded to Discontinued)

$

$

Not available

------------------

REPAIR KIT

Note: P/N To Be Announced

$

$

Not available
