REC-600 - Echo Pneumatic Pole Saw Carburetor Parts Diagram

Pneumatic Pole Saw

Carburetor Parts Diagram

  • Title

Echo 12300010560

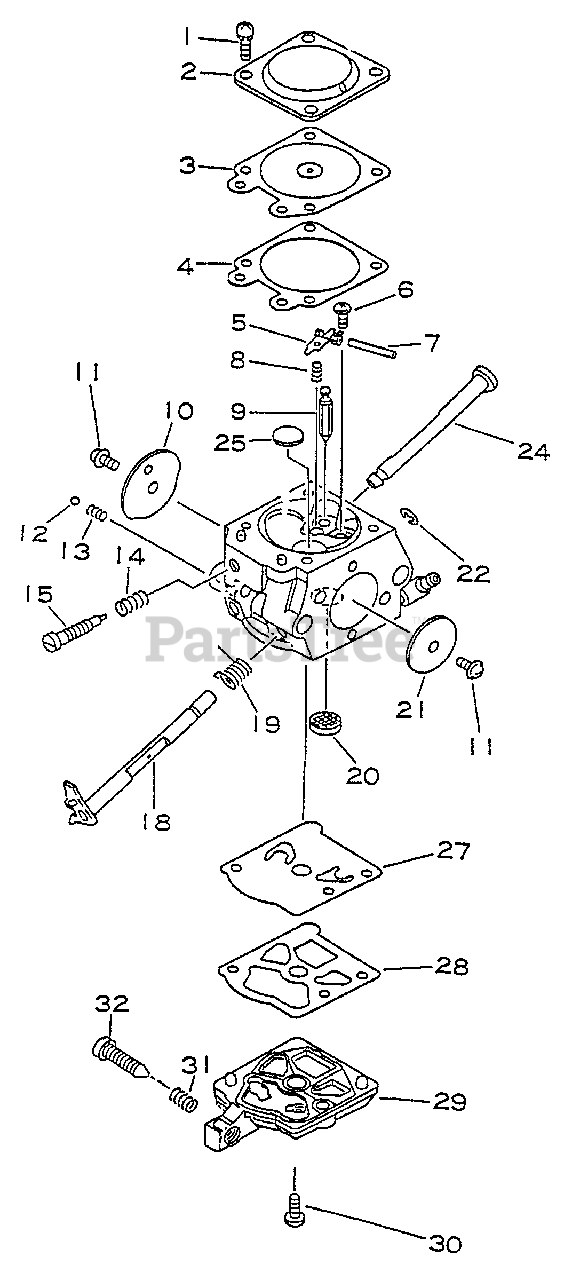

CARBURETOR - WT-233
(Superseded to Discontinued)

$

$

Not available

1

SCREW

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

2

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

3

DIAPHRAGM, METERING

Note: Included in Repair Kit P/N P/N 12310133730 & Repair Kit P/N To Be Announced

$

$

Not available

4

GASKET, METERING

Note: Included in Repair Kit P/N P/N 12310133730 & Repair Kit P/N To Be Announced

$

$

Not available

5

LEVER, METERING

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

6

Echo 12313903930

SCREW, METERING LEVER PIN

$6.99

$

Usually ships in 2-4 days

0

7

PIN, METERING LEVER

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

8

SPRING, METERING LEVER

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

9

Echo 12313704260

VALVE, INLET NEEDLE

$15.99

$

In Stock, only 2 left!

0

10

VALVE, CHOKE

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

11

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

12

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

In Stock, only 1 left!

0

13

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12312122130

SPRING, NEEDLE

$3.99

$

Usually ships in 2-4 days

0

15

Echo 12311840430

NEEDLE, LOW SPEED

$7.49

$

Usually ships in 2-4 days

0

18

Echo 12311710630

SHAFT, THROTTLE
(Superseded to 12311710631)

$

$

Not available

19

Echo 12311315030

SPRING, THROTTLE RETURN

$1.99

$

Usually ships in 2-4 days

0

20

STRAINER

Note: Included in Repair Kit P/N To Be Announced

$

$

Not available

21

Echo 12311605230

VALVE, THROTTLE

$2.49

$

In Stock, only 4 left!

0

22

Echo 12312715030

E-RING

$0.99

$

In Stock, Qty 5

0

24

Echo 12313110460

SHAFT, CHOKE
(Superseded to Discontinued)

$

$

Not available

25

Echo 12314610631

PLUG, WELCH

$1.99

$

In Stock, only 1 left!

0

------------------

DIAPHRAGM, PUMP

Note: Included in Repair Kit P/N P/N 12310133730 & Repair Kit P/N To Be Announced

$

$

Not available

------------------

GASKET, PUMP

Note: Included in Repair Kit P/N P/N 12310133730 & Repair Kit P/N To Be Announced

$

$

Not available

29

Echo 12312410560

COVER, FUEL PUMP
(Superseded to Discontinued)

$

$

Not available

30

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

31

Echo 12313326030

SPRING

$1.49

$

Usually ships in 2-4 days

0

32

Echo 12313403930

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

Echo 12310113730

DIAPHRAGM/GASKET KIT
(Superseded to Discontinued)

$

$

Not available

REPAIR KIT

Note: P/N To Be Announced

$

$

Not available
