REC-600 - Echo Pneumatic Pole Saw Engine, Crankcase, Cover Parts Diagram

Pneumatic Pole Saw

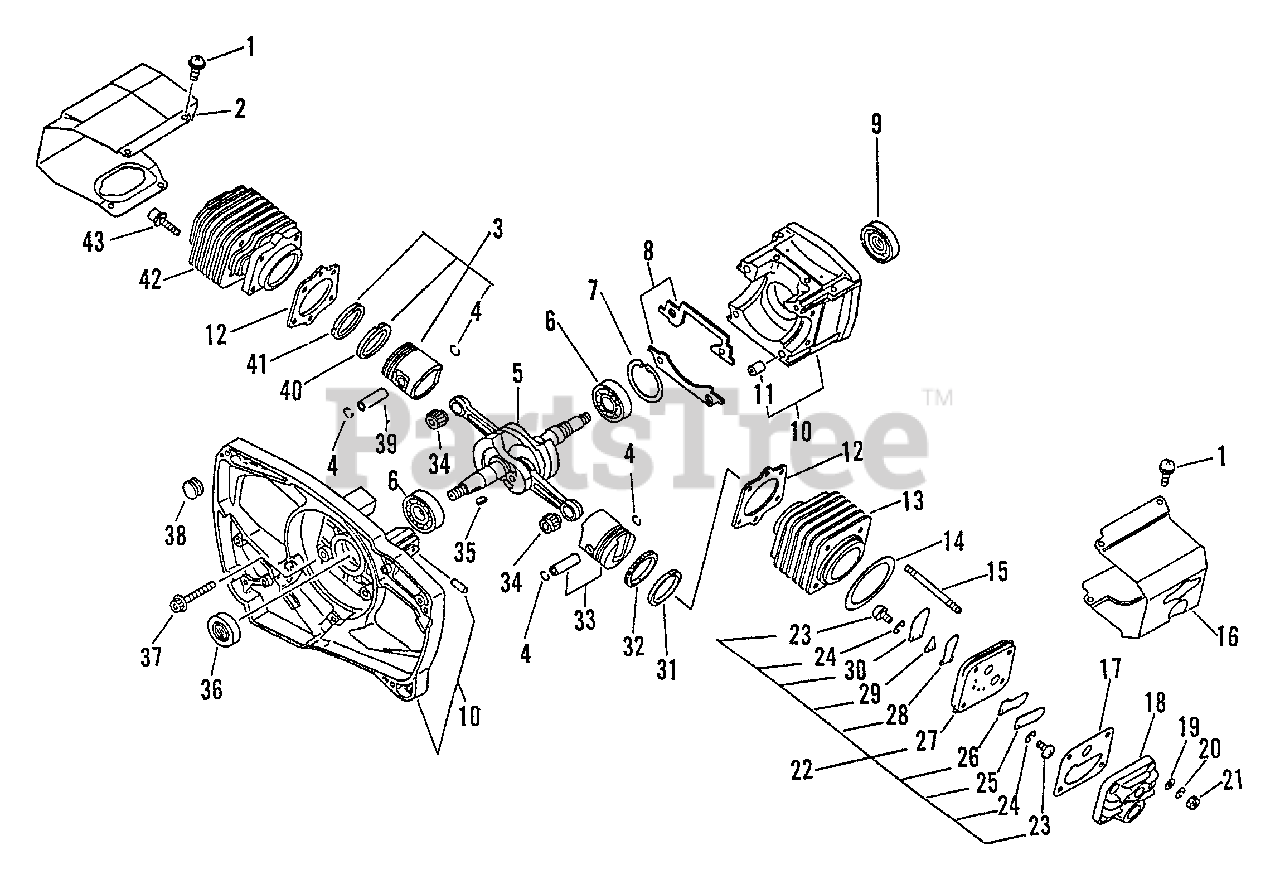

Engine, Crankcase, Cover Parts Diagram

  • Title

1

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

2

Echo 10150610760

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

3

Echo 10000032830

PISTON KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 4, 34, 39 - 41

$

$

Not available

4

Echo 10001503930

RING, RETAINING
(Superseded to 10001503931)

$0.99

$

In Stock, Qty 13

0

5

Echo 10010010760

CRANKSHAFT ASSY
(Superseded to 10010010560)

$

$

Not available

6

Echo 90081006202

BEARING, BALL - 6202

$10.99

$

In Stock, only 2 left!

0

7

Echo 90070200035

RING, RETAINING - 35

$2.49

$

In Stock, Qty 11

0

8

------------------

GASKET, CRANKCASE

Note: USE KIT 88900016131

$

$

Not available

9

Echo 10021302830

SEAL, OIL

$7.49

$

In Stock, only 2 left!

0

10

Echo 10020010460

CRANKCASE KIT
(Superseded to Discontinued)

Note: Includes ITEM 11

$

$

Not available

11

Echo 10021505730

PIN - LOCATING
(Superseded to Discontinued)

$

$

Not available

12

Echo 10101010560

GASKET, CYLINDER
(Superseded to Discontinued)

Note: USE KIT 88900016131

$

$

Not available

13

Echo 39001210460

CYLINDER
(Superseded to Discontinued)

$

$

Not available

14

Echo 39011110460

PACKING
(Superseded to Discontinued)

$

$

Not available

15

Echo 39001610460

STUD
(Superseded to Discontinued)

$

$

Not available

16

Echo 39001310760

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

17

Echo 39001510460

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

18

Echo 39001410460

HEAD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

19

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

21

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 39010010460

REED VALVE SET
(Superseded to Discontinued)

Note: INCLUDES ITEMS 23 - 30

$

$

Not available

23

Echo 90022003008

SCREW - 3X8

$0.99

$

Usually ships in 2-4 days

0

24

Echo 90060500003

LOCKWASHER - 3

$0.99

$

Usually ships in 2-4 days

0

25

Echo 39011610460

GUIDE, VALVE
(Superseded to Discontinued)

$

$

Not available

26

Echo 39011510460

VALVE, REED
(Superseded to Discontinued)

$

$

Not available

27

Echo 39011010460

FIXTURE, REED VALVE
(Superseded to Discontinued)

$

$

Not available

28

Echo 39011210460

VALVE, REED
(Superseded to Discontinued)

$

$

Not available

29

Echo 39011310460

VALVE, REED
(Superseded to Discontinued)

$

$

Not available

30

Echo 39011410460

GUIDE, VALVE
(Superseded to Discontinued)

$

$

Not available

31

Echo 39001110460

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

32

Echo 39001710460

RING, OIL
(Superseded to Discontinued)

$

$

Not available

33

Echo 39000310460

PISTON ASSY
(Superseded to Discontinued)

$

$

Not available

34

Echo 10001216131

BEARING, NEEDLE

$12.99

$

In Stock, only 1 left!

0

35

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 15

0

36

Echo 10021216130

SEAL, OIL

$4.99

$

Usually ships in 2-4 days

0

37

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 20+

0

38

Echo 16391130130

PLUG

$1.99

$

Usually ships in 2-4 days

0

39

Echo 10001316131

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

40

Echo 10001632830

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

41

Echo 10001132830

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

42

Echo 10174310460

CYLINDER
(Superseded to Discontinued)

$

$

Not available

43

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0
