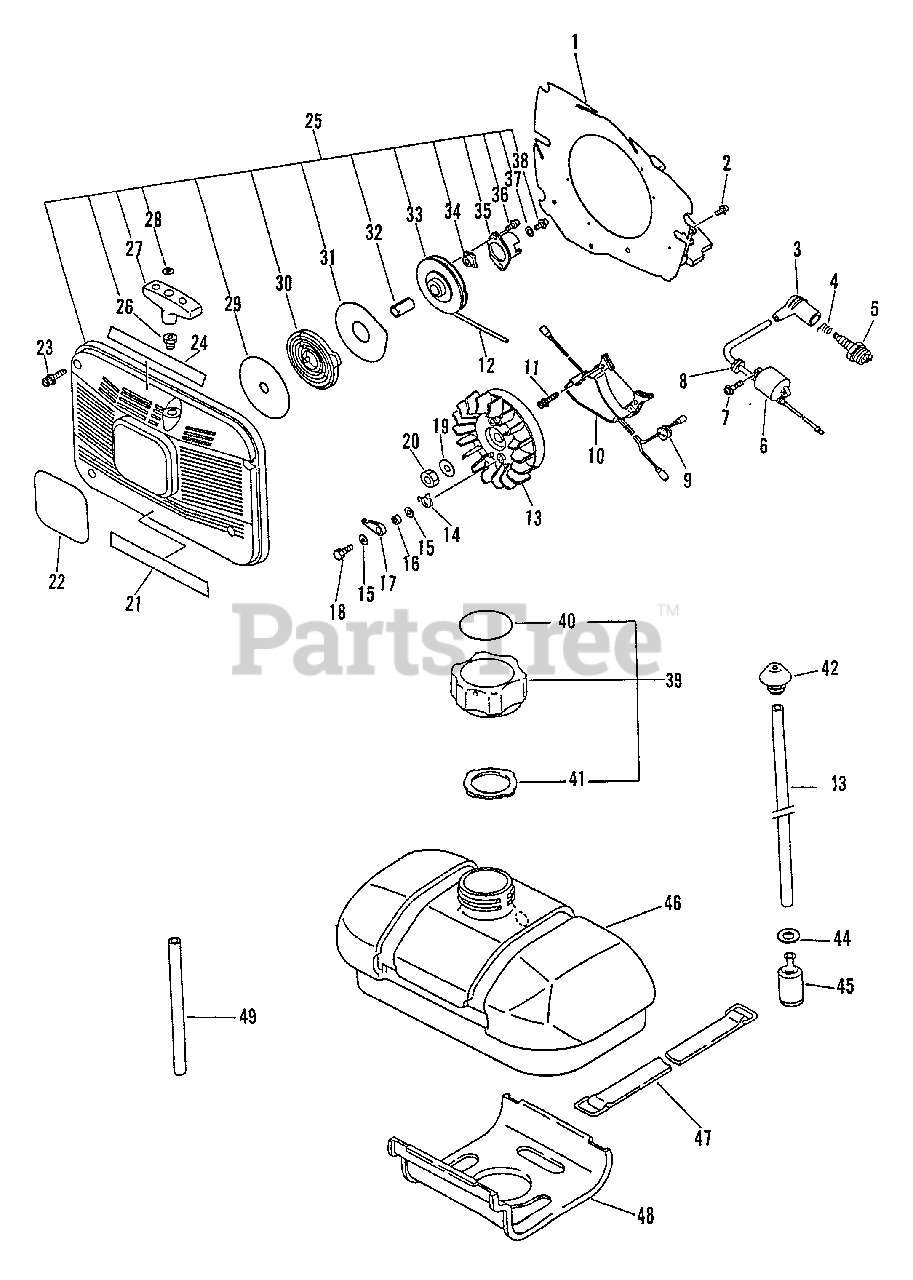

REC-600 - Echo Pneumatic Pole Saw Fuel System, Ignition, Starter Parts Diagram

Pneumatic Pole Saw

Fuel System, Ignition, Starter Parts Diagram

  • Title

1

Echo 17730810461

PLATE
(Superseded to Discontinued)

$

$

Not available

2

Echo 90025204012

SCREW 4×12

$0.99

$

Usually ships in 2-4 days

0

3

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

4

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

5

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

6

Echo 15062616131

COIL, IGNITION
(Superseded to 15662616130)

$

$

Not available

7

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

8

Echo 150112-00310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

9

Echo 15061402910

GROMMET

$0.99

$

In Stock, only 1 left!

0

10

Echo 15660110461

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

11

Echo 90016204018

SCREW - 4×18

$1.49

$

Usually ships in 2-4 days

0

12

Echo 17722607060

ROPE, STARTER 4.0×950

Note: RePower BULK OPTION: 99944450000

$12.99

$

In Stock, only 3 left!

0

13

Echo 15080016131

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

14

Echo 17723402831

SPRING

$2.99

$

Usually ships in 2-4 days

0

15

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 17721703430

SPACER

$1.99

$

Usually ships in 2-4 days

0

17

Echo 17721802830

PAWL, STARTER

$7.49

$

Usually ships in 2-4 days

0

18

Echo 90010005016

BOLT - 5×16

$0.99

$

In Stock, only 1 left!

0

19

Echo 90060800010

WASHER - 10
(Superseded to Discontinued)

$

$

Not available

20

Echo 90052100010

NUT - 10
(Superseded to Discontinued)

$

$

Not available

21

Echo 89018411960

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available

22

Echo 89011211960

LABEL, REC-600
(Superseded to Discontinued)

$

$

Not available

23

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

24

Echo 89018811960

LABEL, CAUTION
(Superseded to Discontinued)

$

$

Not available

25

Echo 17720010460

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 12, 26 - 38

$

$

Not available

26

Echo 17722705020

GUIDE, ROPE

$4.99

$

In Stock, only 4 left!

0

27

Echo 17722812330

HANDLE

$30.99

$

In Stock, Qty 11

0

28

Echo 17722914330

SPACER

$1.49

$

In Stock, only 4 left!

0

29

Echo 17722102830

PLATE, STARTER

$7.49

$

In Stock, only 1 left!

0

30

Echo 17722002834

SPRING, RECOIL

$25.99

$

Usually ships in 2-4 days

0

31

Echo 17724212330

PLATE, SIDE

$6.49

$

In Stock, only 3 left!

0

32

Echo 17721602832

BUSHING

$1.99

$

Usually ships in 2-4 days

0

33

Echo 17721502834

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

34

Echo 17724602832

RETAINER, ROPE

$

$

Not available

35

Echo 17724302833

PAWL CATCHER

$12.99

$

Usually ships in 2-4 days

0

36

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

37

Echo 177214-02830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

38

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

39

Echo 13160011960

CAP ASSY
(Superseded to 13100406610)

Note: INCLUDES ITEMS 40 & 41

$13.99

$

In Stock, only 2 left!

0

40

Echo 89015410461

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

41

Echo 13101610760

GASKET, CAP
(Superseded to Discontinued)

$

$

Not available

42

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

43

Echo 43720514730

PIPE - 3×6×220
(Superseded to Discontinued)

Note: RePower BULK OPTION: 90015

$

$

Not available

44

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

45

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

46

Echo 13101011960

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

47

Echo 13191721530

BAND, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

48

Echo 13192022030

CUSHION
(Superseded to Discontinued)

$

$

Not available

49

Echo 13201022130

PIPE, FUEL 3×6×150
(Superseded to 13201022131)

$2.99

$

Usually ships in 2-4 days

0
