REC-600 - Echo Pneumatic Pole Saw Hand Shear Assy Parts Diagram

Pneumatic Pole Saw

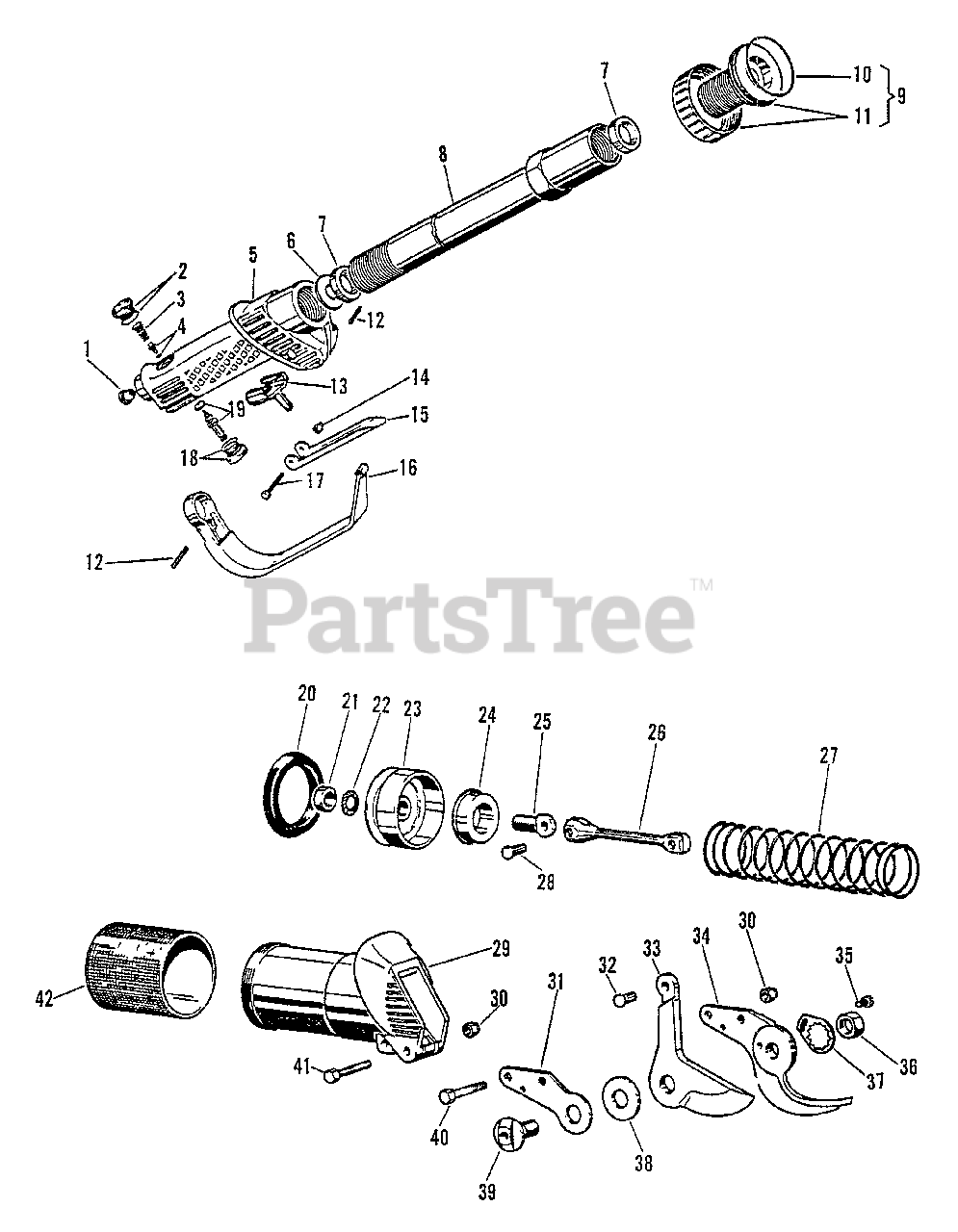

Hand Shear Assy Parts Diagram

  • Title

Echo 9994530000

HAND SHEAR

$

$

Currently unavailable

Echo 7001400103

COMPLETE TRIGGER & HANDLE ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 1-19

$

$

Not available

1

Echo 7001020108

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

2

Echo 7001330110

FITTING, END W/O-RING
(Superseded to Discontinued)

$

$

Not available

3

Echo 7001640102

SPRING
(Superseded to Discontinued)

$

$

Not available

4

Echo 7001250117

VALVE, PIN W/O-RING
(Superseded to Discontinued)

$

$

Not available

5

Echo 7001710103

BODY, HANDLE
(Superseded to Discontinued)

$

$

Not available

6

Echo 7001010113

SPACER
(Superseded to Discontinued)

$

$

Not available

7

Echo 7001420102

WASHER - RUBBER
(Superseded to Discontinued)

$

$

Not available

8

Echo 7001650106

EXTENSION, AIR 1 FOOT
(Superseded to Discontinued)

$

$

Not available

9

Echo 7001660123

COMPLETE ADAPTER FOR SE-2
(Superseded to Discontinued)

Note: Includes ITEMS 10-11

$

$

Not available

10

Echo 7001230018

O-RING
(Superseded to Discontinued)

$

$

Not available

11

Echo 7001660117

ADAPTER FOR SE-2
(Superseded to Discontinued)

$

$

Not available

12

Echo 7001590102

PIN, ROLLER
(Superseded to Discontinued)

$

$

Not available

13

Echo 7001680104

SAFETY
(Superseded to Discontinued)

$

$

Not available

14

Echo 7001000117

NUT
(Superseded to Discontinued)

$

$

Not available

15

Echo 7001480114

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

16

Echo 7001320111

GUARD, HANDLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 7001060201

PIN, TRIGGER
(Superseded to Discontinued)

$

$

Not available

7001330111

Echo 7001330111

CAP
(Superseded to Discontinued)

$

$

Not available

19

Echo 7001290137

VALVE W/O-RING
(Superseded to Discontinued)

$

$

Not available

20

Echo 7001230102

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

21

Echo 7001000115

NUT
(Superseded to Discontinued)

$

$

Not available

22

Echo 7001010119

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

23

Echo 7001690122

PISTON
(Superseded to Discontinued)

$

$

Not available

24

Echo 7001730102

STOPPER
(Superseded to Discontinued)

$

$

Not available

25

Echo 7001600112

PISTON, LINK
(Superseded to Discontinued)

$

$

Not available

26

Echo 7001700105

ROD
(Superseded to Discontinued)

$

$

Not available

27

Echo 7001640110

SPRING
(Superseded to Discontinued)

$

$

Not available

28

Echo 7001770101

RIVET
(Superseded to Discontinued)

$

$

Not available

29

Echo 7001710130

BODY, CYLINDER
(Superseded to Discontinued)

$

$

Not available

30

Echo 7001000101

LOCKNUT
(Superseded to Discontinued)

$

$

Not available

31

Echo 7001740105

SUPPORT, BLADE
(Superseded to Discontinued)

$

$

Not available

32

Echo 7001770102

RIVET
(Superseded to Discontinued)

$

$

Not available

33

Echo 7001750120

BLADE, BASIC
(Superseded to Discontinued)

$

$

Not available

34

Echo 7001750121

ANVIL, BASIC
(Superseded to Discontinued)

$

$

Not available

35

Echo 7001060143

SCREW, SET
(Superseded to Discontinued)

$

$

Not available

36

Echo 7001000116

LOCKNUT
(Superseded to Discontinued)

$

$

Not available

37

Echo 7001010120

HOLDER, NUT
(Superseded to Discontinued)

$

$

Not available

38

Echo 7001010121

SPACER, BLADE
(Superseded to Discontinued)

$

$

Not available

39

Echo 7001250121

BOLT
(Superseded to Discontinued)

$

$

Not available

40

Echo 7001060144

BOLT
(Superseded to Discontinued)

$

$

Not available

41

Echo 7001060145

BOLT
(Superseded to Discontinued)

$

$

Not available

42

Echo 7001410104

GRIP, HANDLE
(Superseded to Discontinued)

$

$

Not available
