RECON 48 (53AH8ST3050) - Cub Cadet 48" Zero-Turn Mower, 23hp Kohler Kohler CV23-75624 Engine Controls Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

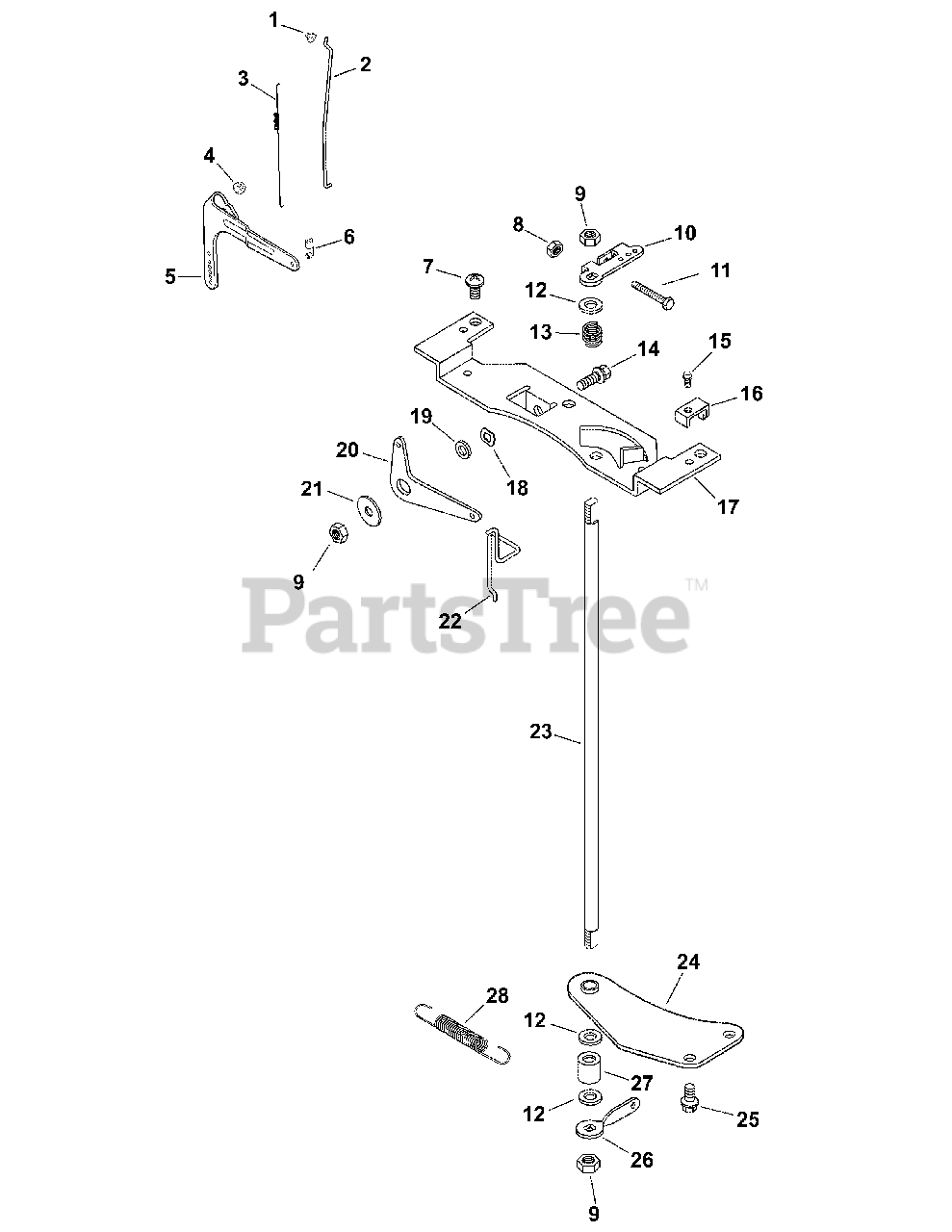

Kohler CV23-75624 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-25-158-08

Bushing, Lingage Retaining

$5.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-079-04

Linkage, Throttle

$

$

Not available

3

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

4

Cub Cadet KH-M-641060-S

Nut, FLG M6 x 1.0

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-24-090-51-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

7

Cub Cadet KH-24-086-06

Screw, Phl Hd 11-16 x 3/4"

$

$

Not available

8

Cub Cadet KH-M-446030-S

Nut, M4 x 0.7

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-M-647060

Nut, Lock M6 x 1.0

$

$

Not available

10

Cub Cadet KH-24-090-09

Lever, Throttle Control

$

$

Not available

11

Cub Cadet KH-M-401030

Screw, Cap M4 x 0.7 x 30

$

$

Not available

12

Cub Cadet KH-X-25-72

Washer, Flat 1/4"

$

$

Not available

13

Cub Cadet KH-24-089-20

Spring, Throttle Shaft

$

$

Not available

14

Cub Cadet KH-M-639016-S

Screw, Flg M6x1.0x16

$2.49

$

In Stock, only 4 left!

0

15

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-24-126-111-S

Bracket, Control
(Superseded to KH-24-126-219-S)

$37.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-277341

Washer, Spring 3/8"

$

$

Not available

19

Cub Cadet KH-25-431-01-S

Spacer

$7.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-24-090-20

Lever, Choke

$

$

Not available

21

Cub Cadet KH-X-25-52

Washer, Flat 1/4"
(Superseded to 736-0173)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet KH-24-079-10

Linkage, Choke

$

$

Not available

23

Cub Cadet KH-24-144-11

Shaft, Throttle

$

$

Not available

24

Cub Cadet KH-24-126-162-S

Bracket, Throttle Shaft

$8.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6 x 1.0 x16

$4.99

$

In Stock, Qty 9

0

26

Cub Cadet KH-24-090-12

Lever, Throttle Control

$

$

Not available

27

Cub Cadet KH-24-112-10

Spacer

$

$

Not available

28

Cub Cadet KH-24-089-46-S

Spring, Governor

$8.99

$

In Stock, Qty 7

0

Cub Cadet KH-24-211-03-S

Bolt, Rd Hd Sq Neck M6x1.0x25

Note: (not shown)

$2.99

$

In Stock, Qty 12

0
