Renegade Diesel - Bad Boy Zero-Turn Mower (2019) REAR SWING ARMS Parts Diagram

Zero-Turn Mower

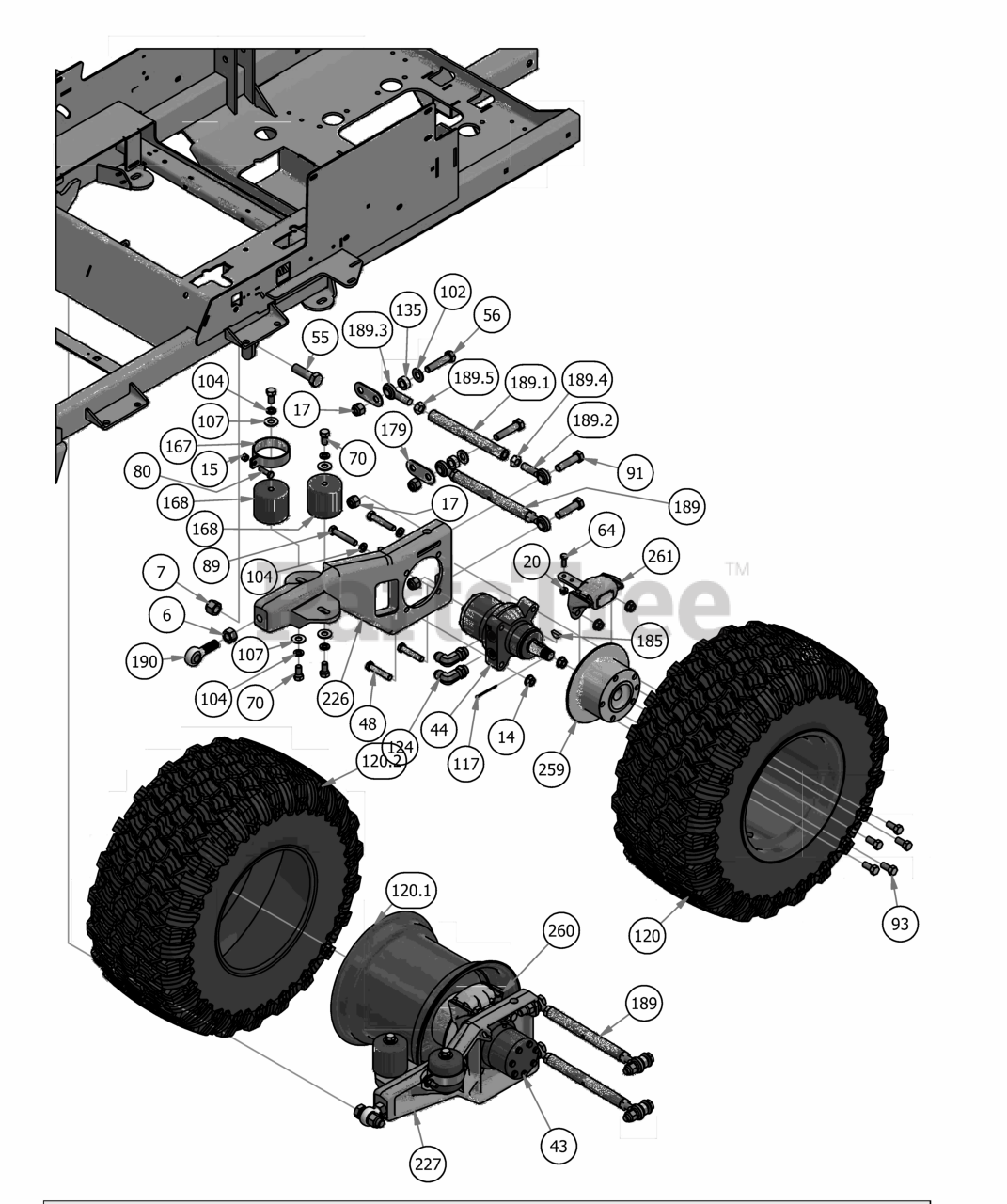

REAR SWING ARMS Parts Diagram

  • Title

6

Bad Boy 013-0022-00

3/4"-16 Fine Full Nut

$7.99

$

In Stock, only 2 left!

0

7

Bad Boy 013-0023-00

3/4" Course Thread Nylon Lock Nut

$7.99

$

Usually ships in 4-7 days

0

14

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

15

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 2 left!

0

17

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

20

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

43

Bad Boy 015-4600-00

18ci Parker Wheel Motor-Right

$683.99

$

Usually ships in 4-7 days

0

44

Bad Boy 015-4601-00

18ci Parker Wheel Motor - Left

$683.99

$

Usually ships in 4-7 days

0

48

Bad Boy 018-0015-00

1/2" x 3" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

55

Bad Boy 018-0045-00

3/4 x 2 1/2 Course Thread Bolt

$3.49

$

Usually ships in 4-7 days

0

56

Bad Boy 018-0049-00

AS 2465 - 5/8 x 2 3/4 UNC

$4.99

$

Usually ships in 4-7 days

0

64

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

70

Bad Boy 018-2030-00

1/2" x 1" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

80

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 17

0

89

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 4 left!

0

91

Bad Boy 018-6059-00

5/8" x 2 1/2" Grade 5 Hex Bolt (Coarse)

$2.99

$

In Stock, only 2 left!

0

93

Bad Boy 018-7033-00

1/2-20 x 1-1/2 Lug Bolts Zinc

$2.49

$

In Stock, Qty 18

0

102

Bad Boy 019-0009-00

5/8" Flat Washer SAE Spec Grade 8

$3.49

$

Usually ships in 4-7 days

0

104

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 16

0

107

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

117

Bad Boy 020-7022-00

1/8x2-1/4 cotter pin Zinc

$0.99

$

In Stock, only 2 left!

0

120

Bad Boy 022-4090-00

2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim

$389.99

$

In Stock, only 2 left!

0

124

Bad Boy 024-2065-00

2019 Rouge/Renegade Wheel Motor 90* Fitting #6801-10L

$19.99

$

Usually ships in 4-7 days

0

135

Bad Boy 025-7020-00

5/8" x 1/" Collar W/One Set Screw

$4.99

$

In Stock, only 2 left!

0

167

Bad Boy 032-7000-00

2019 Bad Boy Max Iso-Band

$83.99

$

Usually ships in 4-7 days

0

168

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0

179

Bad Boy 039-2145-00

2019 Suspension Gusset Outlaw

$15.99

$

Usually ships in 4-7 days

0

185

Bad Boy 042-7041-00

Woodruff Key

$15.99

$

In Stock, Qty 5

0

189

Bad Boy 048-0001-98

2019 Suspension Radius Rod Assembly

$

$

Not available

190

Bad Boy 048-7001-00

3/4-16 RH Male Rod End

$30.99

$

In Stock, Qty 5

0

226

Bad Boy 070-0001-00

2019 Left Trailing Arm

$332.99

$

Usually ships in 4-7 days

0

227

Bad Boy 070-0002-00

2019 Right Trailing Arm

$250.99

$

Usually ships in 4-7 days

0

230

Bad Boy 070-5374-19

2019 Horizontal Diesel Frame

$

$

Currently unavailable

259

Bad Boy 092-5201-00

Brake Disk

$136.99

$

In Stock, Qty 6

0

260

Bad Boy 092-7000-00

XP/AOS Right Brake Caliper

$105.99

$

In Stock, only 2 left!

0

261

Bad Boy 092-7001-00

XP/AOS Left Brake Caliper

$105.99

$

In Stock, only 2 left!

0

120.1

Bad Boy 022-4086-00

2019 10.5" Wheel

$206.99

$

Usually ships in 4-7 days

0

120.2

Bad Boy 022-4085-00

2019 26x12-12 Reaper Turf Tire

$250.99

$

Usually ships in 4-7 days

0

189.1

Bad Boy 048-0001-00

2019 Suspension Link Body

$30.99

$

Usually ships in 4-7 days

0

189.2

Bad Boy 048-6062-00

2019 RH 5/8" Heim

$45.99

$

In Stock, only 3 left!

0

189.3

Bad Boy 048-6063-00

2019 LH 5/8" Heim

$45.99

$

In Stock, only 3 left!

0

189.4

Bad Boy 013-0019-00

Nut, 5/8-18 RH

$4.99

$

Usually ships in 4-7 days

0

189.5

Bad Boy 013-0020-00

Nut, 5/8-18 LH

$4.99

$

Usually ships in 4-7 days

0
