Renegade Diesel - Bad Boy Zero-Turn Mower (2025) Engine Assembly Parts Diagram

Zero-Turn Mower

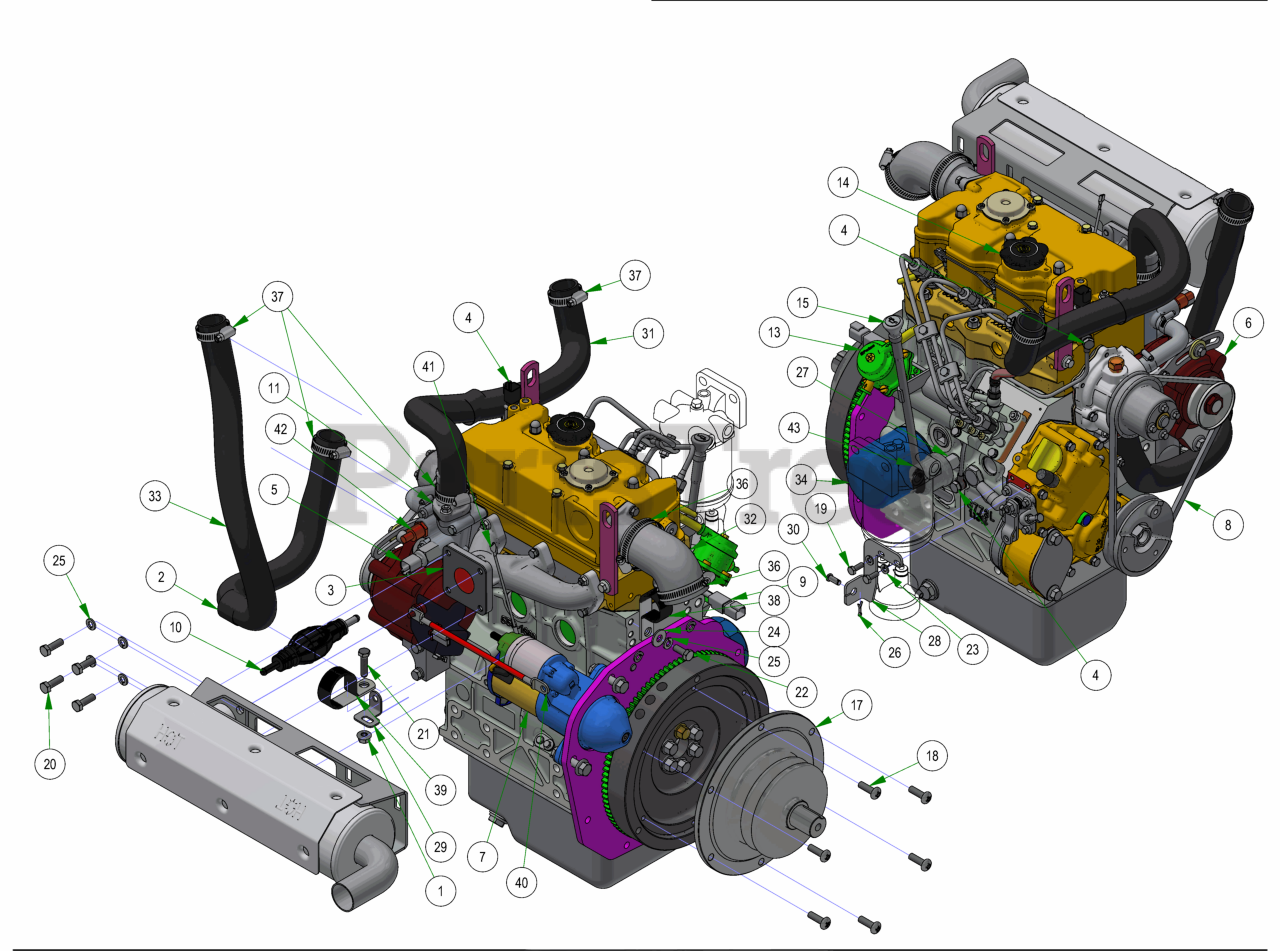

Engine Assembly Parts Diagram

  • Title

1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

Usually ships in 4-7 days

0

2

Bad Boy 014-1053-00

2019 Plastic Mesh Hose Loom

$

$

Not available

3

Bad Boy 015-0010-50

Diesel Muffler Gasket

$18.99

$

Usually ships in 4-7 days

0

4

Bad Boy 015-0096-06

OIL PRESSURE SWITCH

$143.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-0096-07

COOLANT TEMPERATURE SWITCH

$242.99

$

Usually ships in 4-7 days

0

6

Bad Boy 015-0096-09

ALTERNATOR

$911.99

$

Usually ships in 4-7 days

0

7

Bad Boy 015-0097-01

STARTER

$1253.99

$

Usually ships in 4-7 days

0

8

Bad Boy 015-0097-02

ALTERNATOR BELT

$60.99

$

Usually ships in 4-7 days

0

9

Bad Boy 015-0097-03

FUEL SHUTOFF SOLENOID

$269.99

$

Usually ships in 4-7 days

0

10

Bad Boy 015-0097-04

FUEL PRIMING BULB PUMP

$110.99

$

Usually ships in 4-7 days

0

11

Bad Boy 015-0097-06

THERMOSTAT GASKET

$22.99

$

Usually ships in 4-7 days

0

12

Bad Boy 015-0097-07

FUEL PRE-FILTER

$39.99

$

Usually ships in 4-7 days

0

13

Bad Boy 015-0097-08

FUEL LIFT PUMP

$262.99

$

Usually ships in 4-7 days

0

14

Bad Boy 015-0097-11

OIL FILLER CAP

$23.99

$

Usually ships in 4-7 days

0

15

Bad Boy 015-0097-12

OIL LEVEL DIPSTICK

$

$

Not available

16

Bad Boy 015-0097-13

Fuel Separator Bowl

$

$

Not available

17

Bad Boy 017-3001-00

2019 Diesel Stub Shaft Double V

$172.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-0016-00

5/16-18 X 1 BUTTON TORX CAP SCREW ZINC

$3.49

$

Usually ships in 4-7 days

0

19

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 7

0

20

Bad Boy 018-2001-00

M8-1.25 X 25MM DIN 933 HEX TAP BOLT (CL 10.9) ZINC

$0.99

$

Usually ships in 4-7 days

0

21

Bad Boy 018-2006-00

5/16-18 X 1-1/4 HEX C/S (GR.5) ZC

$0.99

$

In Stock, Qty 5

0

22

Bad Boy 018-5321-00

M8-1.25 X 20MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$1.99

$

Usually ships in 4-7 days

0

23

Bad Boy 019-4008-00

1/4

$0.99

$

In Stock, only 4 left!

0

24

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

25

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 2 left!

0

26

Bad Boy 020-2000-00

3/32 X 1/2 COTTER PIN ZINC

$0.99

$

Usually ships in 4-7 days

0

27

Bad Boy 024-0070-00

8mm x 1/8 mpt Adaptor

$53.99

$

Usually ships in 4-7 days

0

28

Bad Boy 039-1010-00

Throttle Bracket

$5.99

$

Usually ships in 4-7 days

0

29

Bad Boy 039-1015-00

Diesel Radiator Hose Clamp Bracket

$2.49

$

Usually ships in 4-7 days

0

30

Bad Boy 044-2006-00

1/4 X 5/8 CLEVIS PIN PLAIN

$0.99

$

Usually ships in 4-7 days

0

31

Bad Boy 051-3003-00

2019 Diesel Radiator Hose Upper

$52.99

$

Usually ships in 4-7 days

0

32

Bad Boy 051-3004-00

2019 Diesel Air intake Hose

$15.99

$

Usually ships in 4-7 days

0

33

Bad Boy 051-3005-00

2019 Diesel Radiator Hose Lower

$47.99

$

Usually ships in 4-7 days

0

34

Bad Boy 063-2010-01

OIL FILTER

$31.99

$

In Stock, only 3 left!

0

35

Bad Boy 063-2011-01

Fuel Filter

$28.99

$

In Stock, only 2 left!

0

36

Bad Boy 072-2002-00

2-1/2" Hose Clamp

$12.99

$

Usually ships in 4-7 days

0

37

Bad Boy 072-2003-00

1 1/8" Hose Clamp

$6.49

$

Usually ships in 4-7 days

0

38

Bad Boy 072-5000-00

Diesel Hydraulic Hose Clamp

$7.99

$

Usually ships in 4-7 days

0

39

Bad Boy 072-8090-00

Diesel Clamp 1 3/4" Vinyl

$3.99

$

Usually ships in 4-7 days

0

40

Bad Boy 086-0003-00

Red Battery Cable Alternator to Starter Cable

$8.49

$

Usually ships in 4-7 days

0

41

Bad Boy 086-0009-00

2022 DIESEL JUMPER WIRE, WHITE, 14AWG

$

$

Currently unavailable

42

Bad Boy 086-7003-00

Coolant Temperature Sender

$33.99

$

Usually ships in 4-7 days

0

43

Bad Boy 086-7004-00

Oil Pressure Guage with Sender

$136.99

$

Usually ships in 4-7 days

0
