Renegade Gas - Bad Boy Zero-Turn Mower (2022) REAR SUSPENSION Parts Diagram

Zero-Turn Mower

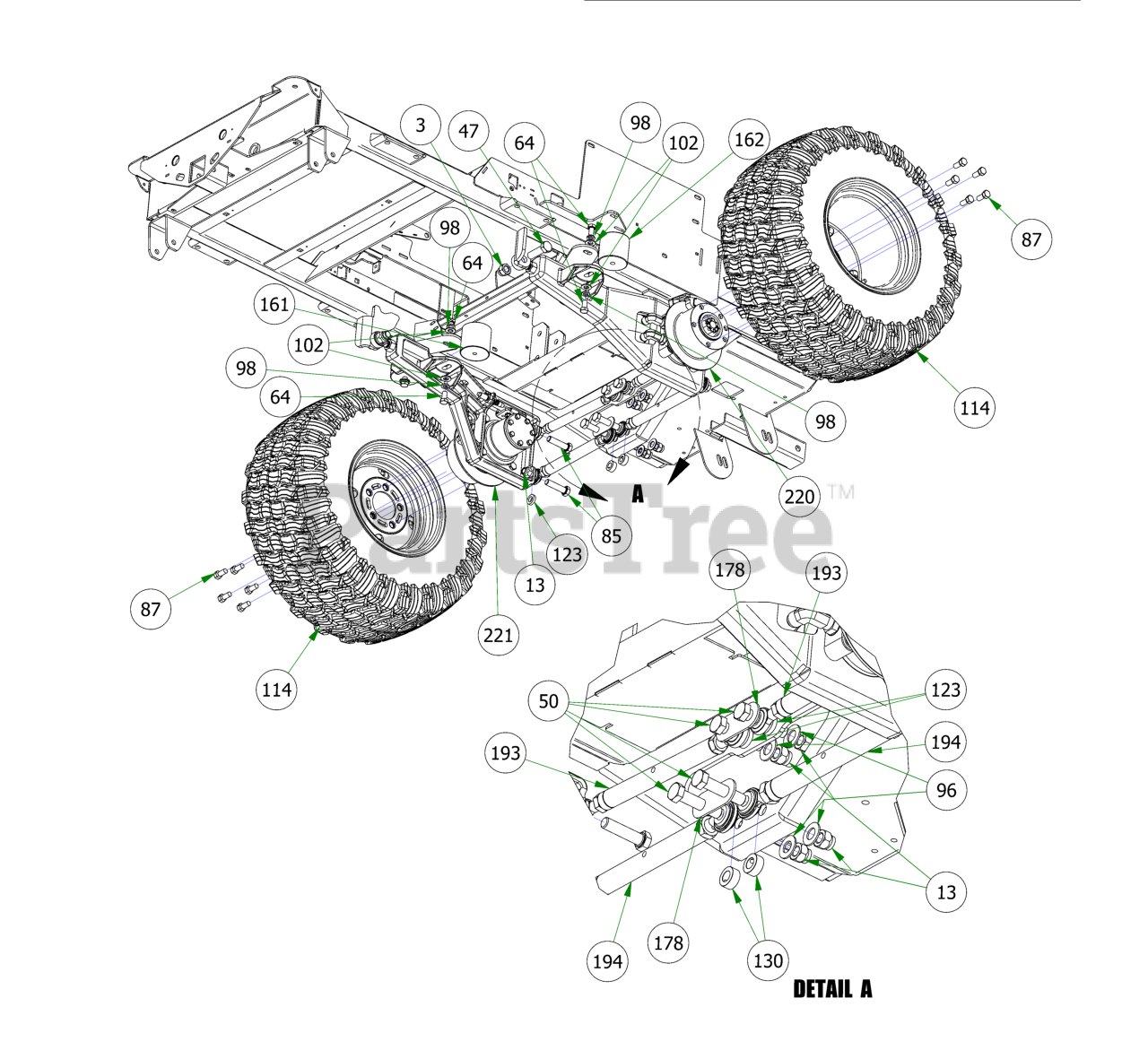

REAR SUSPENSION Parts Diagram

  • Title

3

Bad Boy 013-0023-00

3/4-10 NYLON INSERT LOCKNUT ZINC

$7.99

$

Usually ships in 4-7 days

0

13

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

23

Bad Boy 014-2052-00

2019 2" x .25 Rubber Grommet

$13.99

$

Usually ships in 4-7 days

0

47

Bad Boy 018-0045-00

3/4-10 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

50

Bad Boy 018-0049-00

5/8-11 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

64

Bad Boy 018-2030-00

1/2-13 X 1 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

85

Bad Boy 018-6059-00

5/8-11 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, only 2 left!

0

87

Bad Boy 018-7033-00

1/2-20 x 1-1/2 Lug Bolts Zinc

$5.99

$

In Stock, Qty 7

0

96

Bad Boy 019-0009-00

5/8" Flat Washer SAE Spec Grade 8

$3.49

$

Usually ships in 4-7 days

0

98

Bad Boy 019-5007-00

1/2 SPLIT LOCKWASHER (GR.8) ZINC/YELLOW

$0.99

$

In Stock, only 1 left!

0

102

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

$

In Stock, only 2 left!

0

114

Bad Boy 022-4090-00

2019 Assy-26x12-12 Reaper Turf -10.5" Rim

$389.99

$

In Stock, only 2 left!

0

123

Bad Boy 025-0071-00

Spacer 1.125OD x .625 ID x .250 Length

$15.99

$

Usually ships in 4-7 days

0

130

Bad Boy 025-7020-00

5/8 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

161

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0

162

Bad Boy 032-9000-00

Vibration Mount-Green Dot

$75.99

$

Usually ships in 4-7 days

0

178

Bad Boy 039-2145-00

2019 Suspension Gusset Outlaw

$15.99

$

Usually ships in 4-7 days

0

193

Bad Boy 048-6061-00

2019 Suspension Radius Rod Assembly

$62.99

$

Usually ships in 4-7 days

0

194

Bad Boy 048-6064-00

2019 Suspension Radius Rod Assembly

$83.99

$

In Stock, only 2 left!

0

220

Bad Boy 070-0001-99

2019 Renegade Trailing LH Arm Assy

$

$

Not available

221

Bad Boy 070-0002-99

2019 Renegade Trailing RH Arm Assy

$911.99

$

Usually ships in 4-7 days

0

224

Bad Boy 070-5373-19

2019 Renegade Gas Frame - Powdercoated

$1210.99

$

Usually ships in 4-7 days

0
