Renegade Gas - Bad Boy Zero-Turn Mower (2023) PUMP & IDLER SUBASSEMBLIES Parts Diagram

Zero-Turn Mower

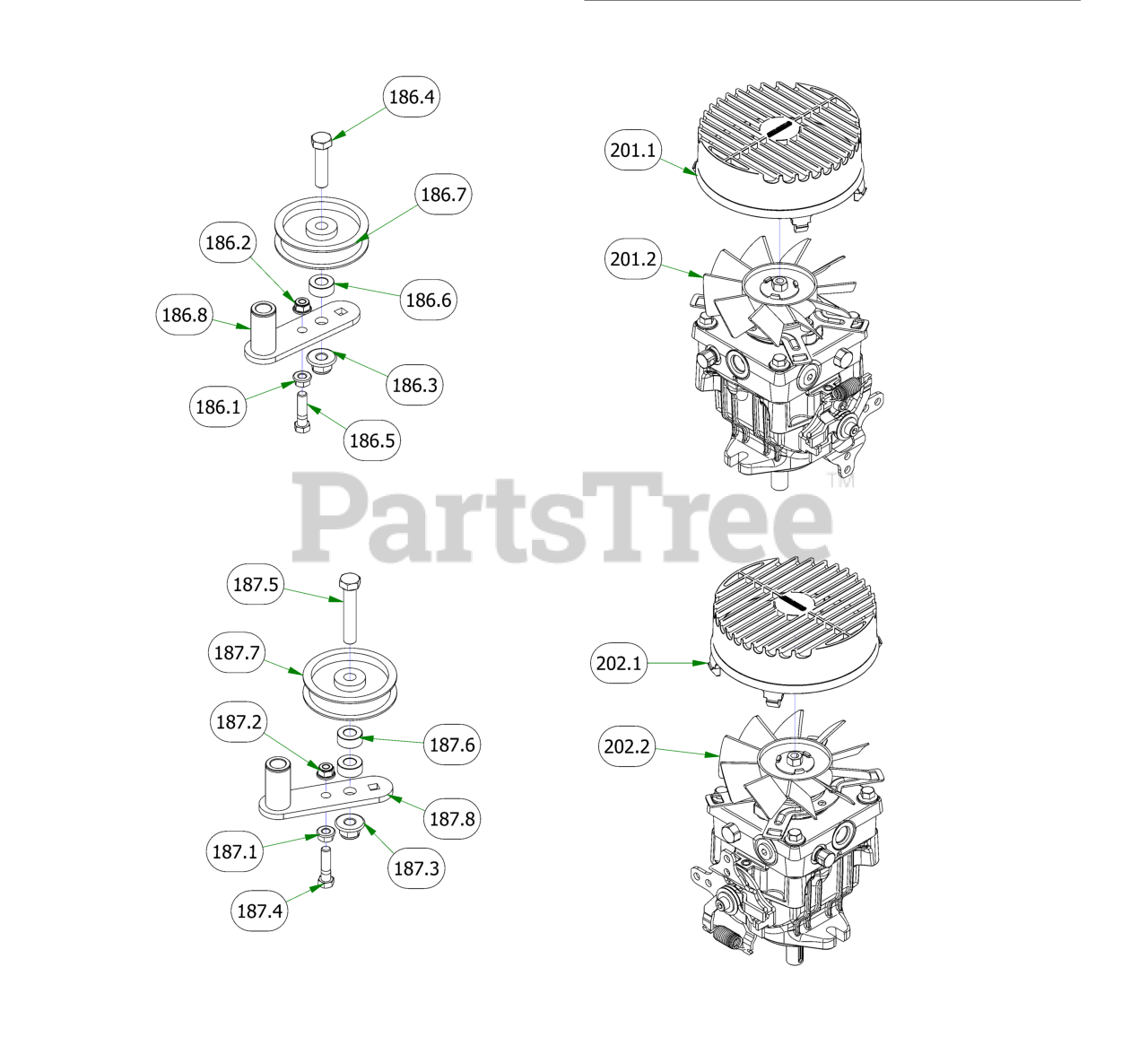

PUMP & IDLER SUBASSEMBLIES Parts Diagram

  • Title

186

Bad Boy 039-6950-98

2019 Renegade Belt Tensioner LH

$90.99

$

Usually ships in 4-7 days

0

187

Bad Boy 039-6950-99

2019 Renegade Pump Belt Tensioner RH

$90.99

$

Usually ships in 4-7 days

0

201

Bad Boy 050-3001-00

2019 Rogue/Renegade Left Pump 16cc

$797.99

$

Usually ships in 4-7 days

0

202

Bad Boy 050-3003-00

2019 Outlaw Renegade Right Pump 16cc

$740.99

$

Usually ships in 4-7 days

0

186.1

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

186.2

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

186.3

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

186.4

Bad Boy 018-0022-00

1/2-13x2 Grade 8 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

186.5

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

186.6

Bad Boy 025-7036-00

1/2 Solid Shaft Collar (W/1 Set Screw) Zinc

$4.99

$

In Stock, only 2 left!

0

186.7

Bad Boy 033-1876-00

3.25 Flat Idler Pulley

$30.99

$

In Stock, only 4 left!

0

186.8

Bad Boy 039-6950-01

Horizontal Idler Arm with Bushings

$31.99

$

Usually ships in 4-7 days

0

187.1

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

187.2

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

187.3

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

187.4

Bad Boy 018-6012-00

3/8" x 1 1/2" Hex Bolt

$0.99

$

In Stock, Qty 20+

0

187.5

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

187.6

Bad Boy 025-7036-00

1/2 Solid Shaft Collar (W/1 Set Screw) Zinc

$4.99

$

In Stock, only 2 left!

0

187.7

Bad Boy 033-1876-00

3.25 Flat Idler Pulley

$30.99

$

In Stock, only 4 left!

0

187.8

Bad Boy 039-6950-01

Horizontal Idler Arm with Bushings

$31.99

$

Usually ships in 4-7 days

0

201.1

Bad Boy 014-5600-00

Fan Guard 6" - Fits Wheel

$42.99

$

Usually ships in 4-7 days

0

201.2

Bad Boy 015-9999-00

Hydro Fan - Light/Pup/Outlaw XP

$45.99

$

In Stock, only 2 left!

0

202.1

Bad Boy 014-5600-00

Fan Guard 6" - Fits Wheel

$42.99

$

Usually ships in 4-7 days

0

202.2

Bad Boy 015-9999-00

Hydro Fan - Light/Pup/Outlaw XP

$45.99

$

In Stock, only 2 left!

0
