Revolt - Bad Boy Stand-On Mower (2022) IDLER ARM MOUNT Parts Diagram

Stand-On Mower

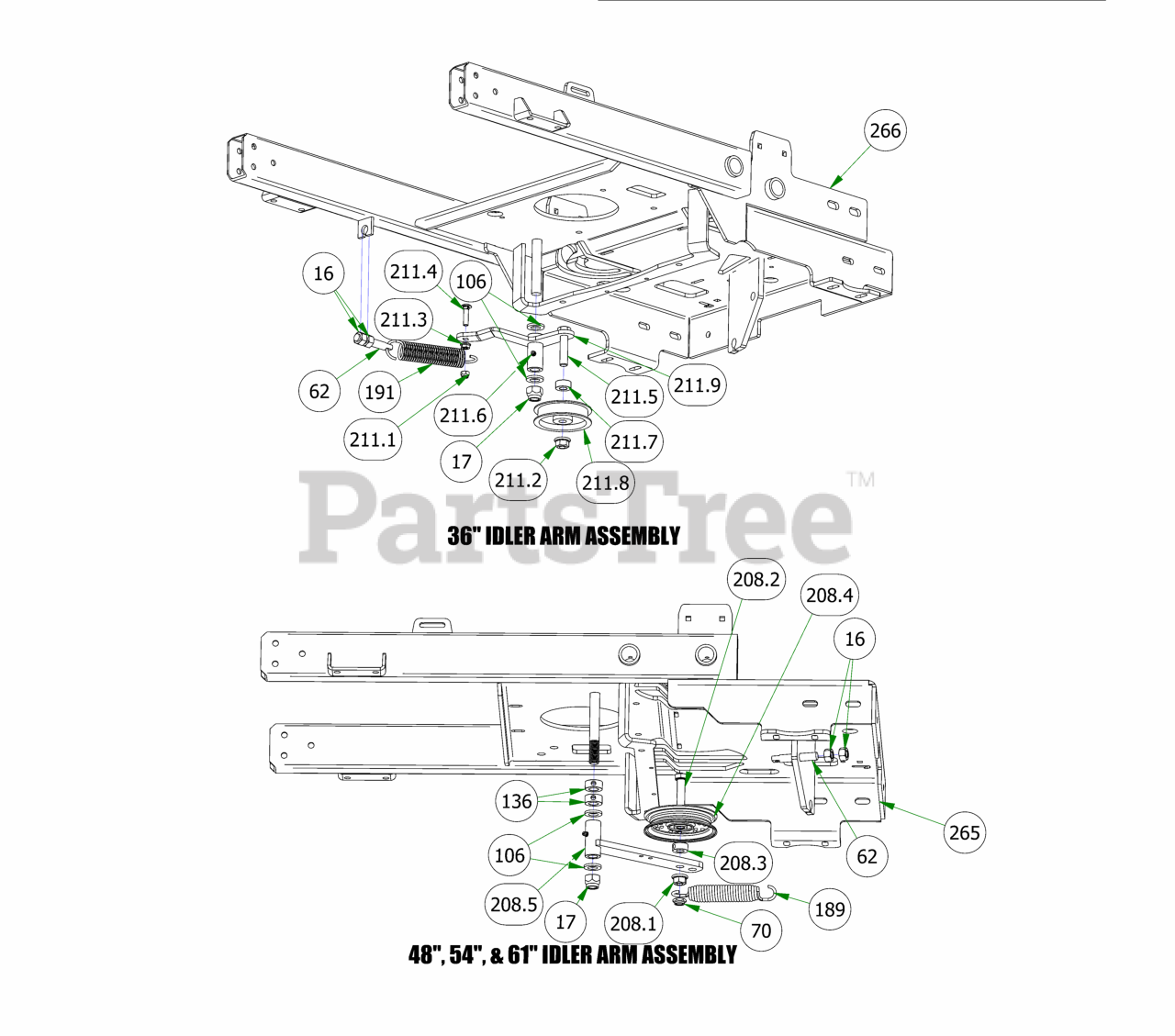

IDLER ARM MOUNT Parts Diagram

  • Title

16

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

17

Bad Boy 013-7021-00

5/8-11 NYLON INSERT LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

62

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, only 2 left!

0

70

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 8

0

106

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 5

0

136

Bad Boy 025-7020-00

5/8 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

189

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

191

Bad Boy 034-9050-00

Deck spring big diameter

$18.99

$

In Stock, only 2 left!

0

208

Bad Boy 039-6945-09

2019 Stand On Idler Assembly

$62.99

$

Usually ships in 4-7 days

0

211

Bad Boy 039-6947-20

2020 36" Stand-On Drive Belt Pulley Assembly

$62.99

$

Usually ships in 4-7 days

0

265

Bad Boy 070-5220-19

2019 Stand On Frame

$854.99

$

Usually ships in 4-7 days

0

266

Bad Boy 070-5221-20

2020 36" Stand On Frame

$1025.99

$

Usually ships in 4-7 days

0

208.1

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

208.2

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 2 left!

0

208.3

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

208.4

Bad Boy 033-6001-00

4 3/4 Idler Pulley - ABFI-76

$33.99

$

In Stock, Qty 20+

0

208.5

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 2 left!

0

211.1

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 2 left!

0

211.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

211.3

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 2 left!

0

211.4

Bad Boy 018-4703-00

5/16-18 X 1-1/4 CARRIAGE BOLT ZINC

$0.99

$

In Stock, only 3 left!

0

211.5

Bad Boy 018-6037-00

1/2-13 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

211.6

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

211.7

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

211.8

Bad Boy 033-1876-00

3.25 Flat Idler Pulley

$30.99

$

In Stock, only 4 left!

0

211.9

Bad Boy 039-6947-00

36 Pump Idler Arm Weldment

$34.99

$

Usually ships in 4-7 days

0
