Revolt - Bad Boy Stand-On Mower (2023) ENGINE- KAWASAKI 781 EVO Parts Diagram

Stand-On Mower

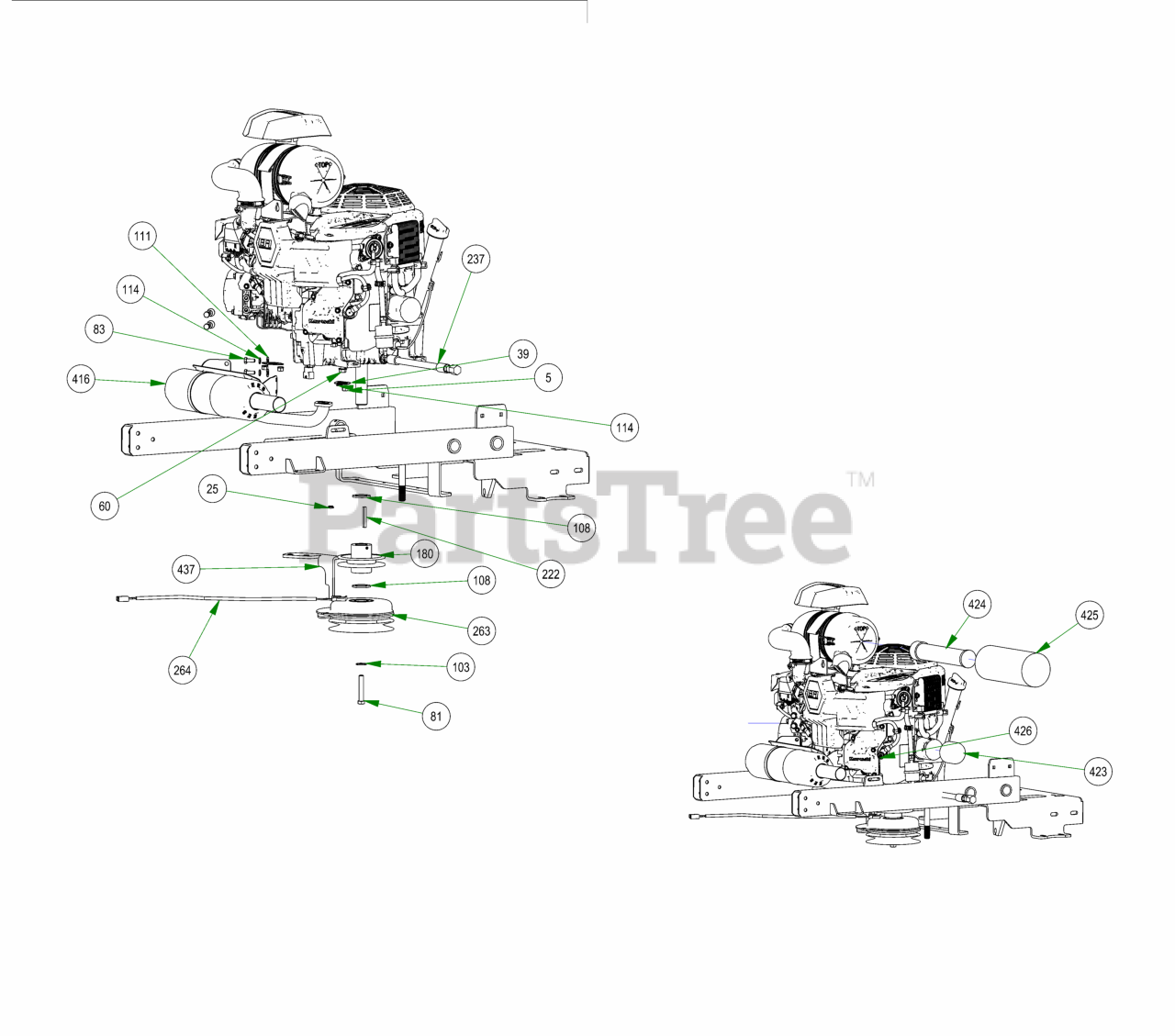

ENGINE- KAWASAKI 781 EVO Parts Diagram

  • Title

5

Bad Boy 013-0075-00

M8-1.25 DIN 934 HEX NUT (CL.8) ZINC

$3.49

$

Usually ships in 4-7 days

0

25

Bad Boy 013-9005-00

5/16-18 NYLON INSERT JAM LOCKNUT ZINC

$3.49

$

Usually ships in 4-7 days

0

39

Bad Boy 015-0781-01

Exhaust Gasket

$13.99

$

Usually ships in 4-7 days

0

60

Bad Boy 018-1075-00

3/8-16 X 1-1/8 HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW

$1.99

$

In Stock, Qty 6

0

81

Bad Boy 018-5300-21

7/16-20 X 2-1/2 HEX CAP SCREW (GR.8) ZINC YELLOW

$3.99

$

Usually ships in 4-7 days

0

83

Bad Boy 018-5321-00

M8-1.25 X 20MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$1.99

$

Usually ships in 4-7 days

0

103

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, only 4 left!

0

108

Bad Boy 019-6029-00

1.140 ID X 1.750 OD X .132 THICK FLAT WASHER PLAIN

$1.49

$

In Stock, only 2 left!

0

111

Bad Boy 019-7040-00

1/4 USS FLAT WASHER (3/4 OD) ZINC

$0.99

$

In Stock, Qty 6

0

114

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

Usually ships in 4-7 days

0

163

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

180

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 1 left!

0

222

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

237

Bad Boy 051-5407-00

Kawasaki Oil Drain

$45.99

$

In Stock, only 2 left!

0

240

Bad Boy 051-8067-19

Revolt Fuel Line Assembly

$

$

Not available

263

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 18

0

264

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

265

Bad Boy 070-5220-19

2019 Stand On Frame

$854.99

$

Usually ships in 4-7 days

0

416

Bad Boy 015-1031-00

BBOY_MUFA_956-072922

$118.99

$

Usually ships in 4-7 days

0

422

Bad Boy 015-0820-00

Kawasaki FX820V EVO

$7181.99

$

Usually ships in 4-7 days

0

423

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 18

0

424

Bad Boy 063-8020-00

Inner Air Filter

$34.99

$

In Stock, only 3 left!

0

425

Bad Boy 063-8019-00

Outter Air Filter

$38.99

$

In Stock, Qty 8

0

426

Bad Boy 015-8001-00

Spark Plug

$9.49

$

In Stock, Qty 9

0

439

Bad Boy 086-9016-00

Harness Adaptor for Kawasaki EFI

$125.99

$

Usually ships in 4-7 days

0
