REX 110 (7800934-00) - Snapper 28" Rear-Engine Riding Mower, 11.5hp Engine Group Parts Diagram

28" Rear-Engine Riding Mower, 11.5hp

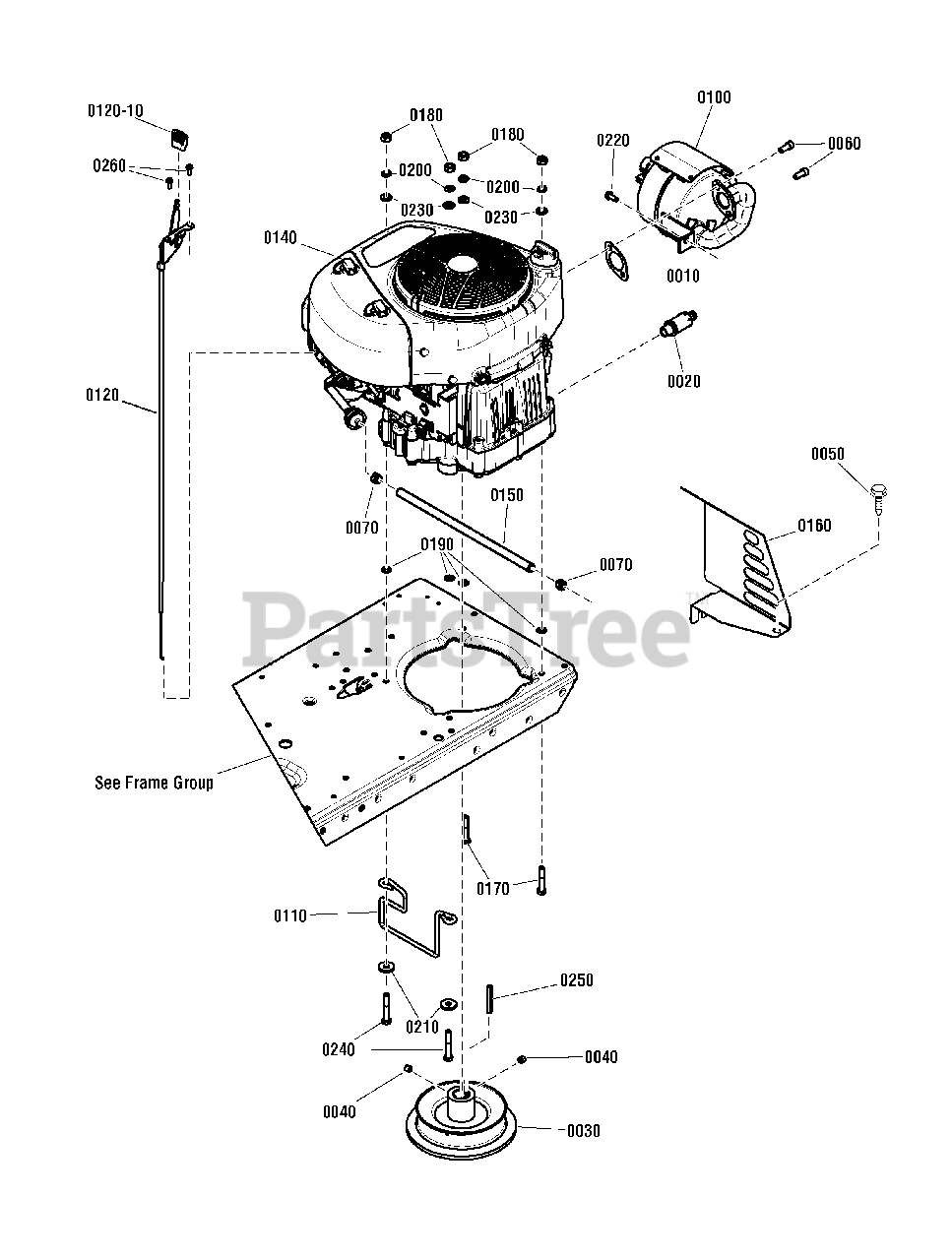

Engine Group Parts Diagram

  • Title

0010

Snapper 7015352SM

GASKET, Exhaust

$

$

Not available

0020

Snapper 7027972SM

ASSEMBLY, Oil Valve

$26.99

$

In Stock, Qty 5

0

0030

Snapper 7072658YP

WELDMENT, 5.75" O.D. Drive Disc

$132.99

$

In Stock, only 4 left!

0

0040

Snapper 7090132YP

SET SCREW, HRSS, 3/8-16 x 3/8"

$3.49

$

In Stock, Qty 8

0

0050

Snapper 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

0060

Snapper 7091738SM

SET SCREW, 5/16-18 x 3/4" Socket Head, GR 8 Black

$4.99

$

In Stock, Qty 10

0

0070

Snapper 93053

CLAMP, Hose Band
(Superseded to 791850)

$3.49

$

In Stock, Qty 9

0

0100

Snapper 706121

MUFFLER, With Guard

$132.99

$

Usually ships in 2-12 days

0

0110

Snapper 7105172BMYP

BELT GUIDE, 25, 26", 28 & 41"

$12.99

$

In Stock, only 1 left!

0

0120

Snapper 7105917YP

ASSEMBLY, Throttle Control, 23.26" + 1.6" Travel

$30.99

$

Usually ships in 2-12 days

0

0120-10

Snapper 7106008YP

KNOB, Molded Paddle, Black

$5.49

$

Usually ships in 2-12 days

0

0140

Snapper 21R677-0012-H1

* ENGINE, B&S 11.5TP, Series 3115, Mod. #21R677-0012-H1

$

$

Currently unavailable

0150

Snapper 1734994SM

HOSE, Fuel, 1/4" I.D. x 8-1/2"
(Superseded to 791766)

$8.49

$

In Stock, Qty 14

0

0160

Snapper 706122

GUARD, Manifold

$51.99

$

Usually ships in 2-12 days

0

0170

Snapper 7091513YP

SCREW, 5/16-24 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 5025025X14YP)

$4.49

$

Usually ships in 2-12 days

0

0180

Snapper 703331

NUT, Hex Flange Serrated Lock, 5/16-18

$4.49

$

In Stock, Qty 16

0

0190

Snapper 703297

RETAINER, 5/16, GR5

$3.99

$

In Stock, Qty 7

0

0200

Snapper 703116

LOCKWASHER, Spring 5/16
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

0210

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, Qty 14

0

0220

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 11

0

0230

Snapper 703350

WASHER, Flat, 5/8

$4.49

$

In Stock, only 3 left!

0

0240

Snapper 704056

SCREW, Hex Head Cap, GR5, Zinc/Clear, 5/16-24 X 2"

$4.49

$

In Stock, only 3 left!

0

0250

Snapper 705753

KEY, 1/4 X 2, Square
(Superseded to 703890)

$5.49

$

In Stock, only 3 left!

0

0260

Snapper 704060

SCREW, Hex Washer Self-Tap, Torx, ZC/CL, #10-24 x 1/2"

$3.99

$

Usually ships in 2-12 days

0
