REX 130 (7800938-00) - Snapper 33" Rear-Engine Riding Mower, 12.5hp Electrical Group - 3115/3125 Parts Diagram

33" Rear-Engine Riding Mower, 12.5hp

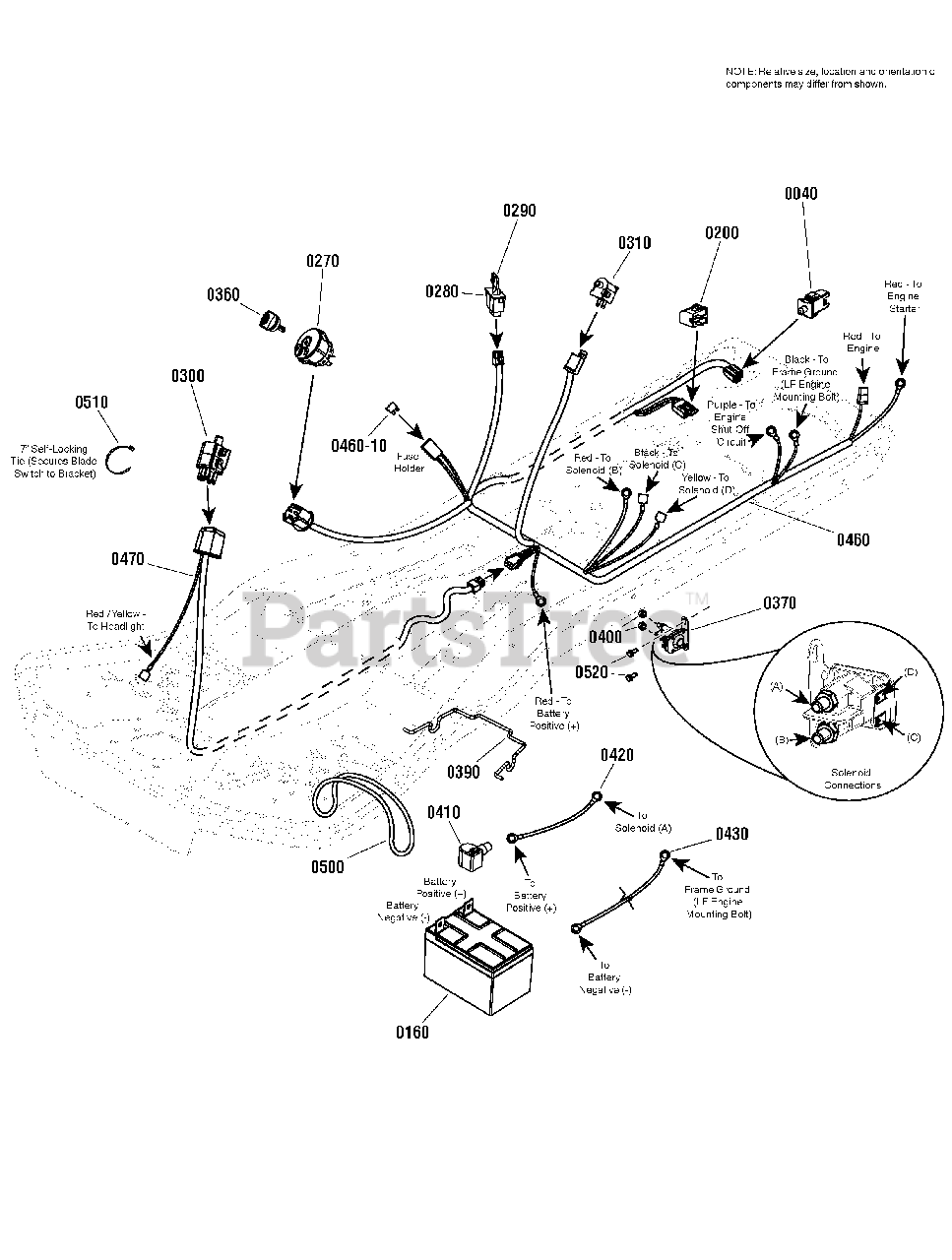

Electrical Group - 3115/3125 Parts Diagram

  • Title

0040

Snapper 7022886YP

SWITCH, DP, NO/NC, Snap-In

$15.99

$

In Stock, Qty 20+

0

0160

Snapper 7600188YP

KIT, Battery, 12V 20HR: 190CCA, Sealed (3.9" W, 5.9" L, 4 to 4.7" H)(Includes Cable Attachment Hdwe.)

$132.99

$

In Stock, Qty 7

0

0200

Snapper 1732004SM

SWITCH, Push Button, (NO, Black)

$9.49

$

In Stock, Qty 20+

0

0270

Snapper 7106169YP

SWITCH, Ignition, 3 Position (Delta)(Without Key)

$18.99

$

In Stock, Qty 20+

0

0280

Snapper 1726556SM

SWITCH, Reverse Mow Option Module (Without Key)
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0290

Snapper 1726557SM

KEY, RMO Module (Yellow)

$11.99

$

In Stock, Qty 20+

0

0300

Snapper 1751449YP

SWITCH, Plunger, Snap In (NO/NC/NC)

$26.99

$

In Stock, only 3 left!

0

0310

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

0360

Snapper 7106172YP

KEY, Ignition Switch - Pack of 2, CE/CAN

$29.99

$

In Stock, only 2 left!

0

0370

Snapper 1755381YP

SOLENOID, 12V, L-Bracket, 2-Spade

$24.99

$

In Stock, Qty 20+

0

0390

Snapper 7105788YP

BRACE, Battery

$11.99

$

In Stock, only 1 left!

0

0400

Snapper 2860750SM

NUT, 5/16-24 Hex Lock, Keps, YZ

$2.99

$

Usually ships in 2-12 days

0

0410

Snapper 7105082YP

BOOT, Insulator

$5.49

$

Usually ships in 2-12 days

0

0420

Snapper 1752685YP

CABLE, Battery Positive, Red (#8 x 10" Long, 1/4" & 5/16" Ring Terminals)

$12.99

$

In Stock, only 2 left!

0

0430

Snapper 7105875YP

WIRE, Negative, 8GA X 27.5, Black

$17.99

$

Usually ships in 2-12 days

0

0460

Snapper 706333

WIRE HARNESS, Main, Engine Series 3115/3125

$88.99

$

Usually ships in 2-12 days

0

0460-10

Snapper 7023653YP

FUSE, 20 Amp

$3.49

$

Usually ships in 2-12 days

0

0470

Snapper 7105697YP

HARNESS, Blade Engage, 41"

$44.99

$

Usually ships in 2-12 days

0

0500

Snapper 1665872SM

STRAP, Rubber Battery, .19 SQ, 7.88 OD, Black

$11.99

$

In Stock, only 4 left!

0

0510

Snapper 703586

TIE, 7, Self Locking

$4.99

$

In Stock, only 3 left!

0

0520

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 20+

0

0530

Snapper 703338

SCREW, Hex Head Cap, 1/4-20 X 0.625, GR5, Zinc/Clear

$3.99

$

Usually ships in 2-12 days

0

0540

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0550

Snapper 703954

NUT, 1/4-20, Center Lock, GR 5, Zinc/Clear
(Superseded to 703251)

$5.49

$

In Stock, Qty 17

0
