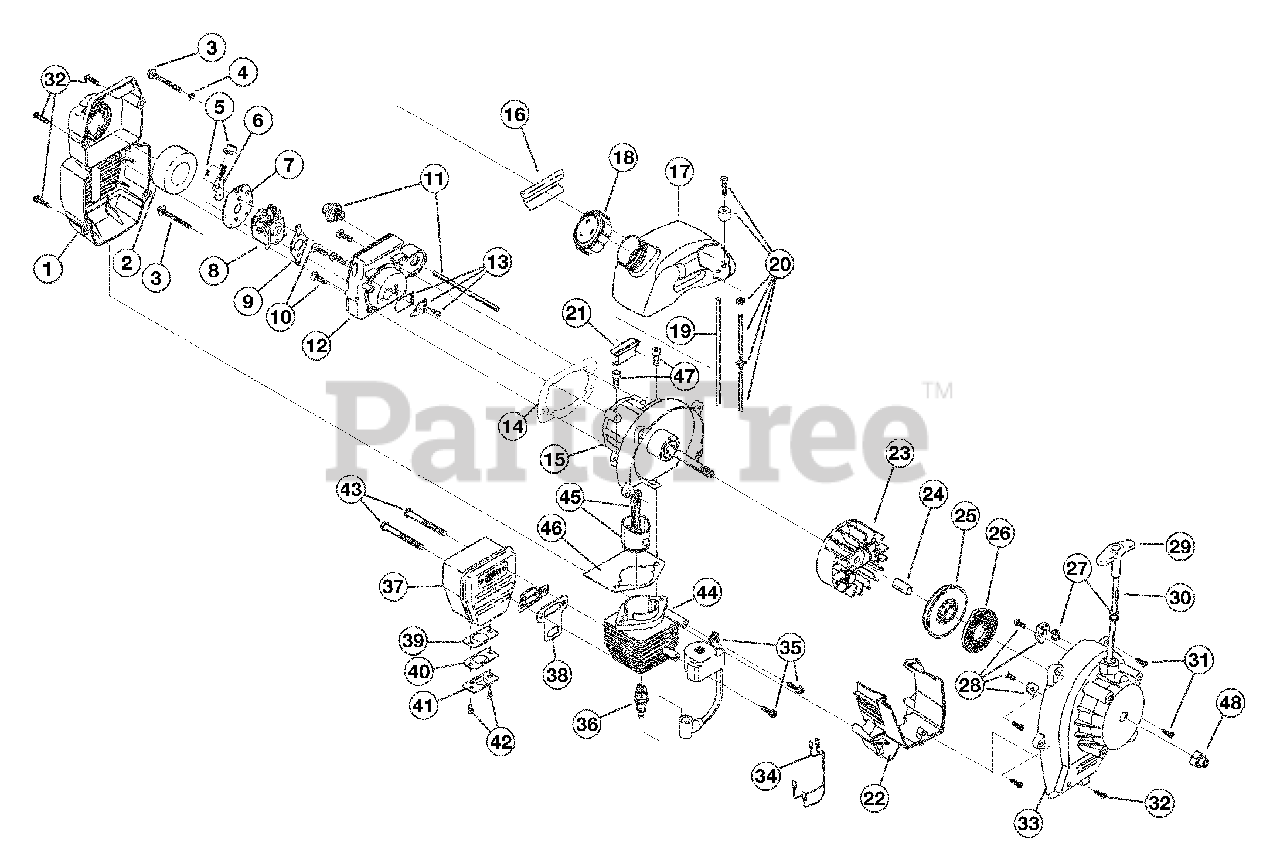

RGBV 3100 (41BSGBPG734) - Ryobi Blower Vacuum Engine Parts Parts Diagram

Blower Vacuum

Engine Parts Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner/Muffler Cover Assembly

Note: (includes 2 & 32)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, Qty 8

0

3

MTD 791-180351

Carburetor Mounting Screw

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 12

0

5

MTD 753-04418

Choke Lever Assembly

Note: (includes 6)

$10.99

$

Usually ships in 3-6 days

0

6

MTD 791-182070

Choke Knob and Screw
(Superseded to 791-182202)

$15.99

$

Usually ships in 3-6 days

0

7

MTD 753-04419

Choke Lever and Plate

Note: (includes 5)

$

$

Not available

8

MTD 753-04333

Carburetor Assembly

Note: (includes 9 & 20)

$

$

Not available

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 20+

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-181558

Primer and Hose Assembly
(Superseded to 791-683974B)

$22.99

$

In Stock, Qty 20+

0

12

MTD 753-1196

Carb Mount Assembly

Note: (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 3 left!

0

15

MTD 753-04178

Crank Case Service Assembly

Note: (includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 753-04310

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 753-1187

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 18

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 20+

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-182401

Shroud Extension

Note: (includes 32)

$

$

Not available

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 3 left!

0

24

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

25

MTD 753-1199

Recoil Pulley Assembly

$24.99

$

In Stock, Qty 5

0

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

29

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 2 left!

0

30

MTD 791-613103

Rope

$10.99

$

In Stock, only 3 left!

0

31

MTD 791-181862

Housing Screw

$4.49

$

In Stock, Qty 20+

0

32

MTD 791-181345

Cover Screw

$4.49

$

In Stock, Qty 17

0

33

MTD 791-181931

Starter Housing Assembly

Note: (includes 28-34)

$

$

Not available

34

MTD 791-182402

Wire Lead Assembly

$12.99

$

Usually ships in 3-6 days

0

35

MTD 753-04109

Module Assembly

$

$

Not available

36

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, Qty 7

0

37

MTD 753-04110

Muffler Assembly

Note: (includes 38-43)

$

$

Not available

38

MTD 791-182065

Exhaust Gasket
(Superseded to 753-04619)

$9.49

$

In Stock, only 3 left!

0

39

MTD 753-04689

SPark Arrestor

$

$

Not available

40

MTD 753-04690

Spark Arrestor Plate

$

$

Not available

41

MTD 753-04691

Spark Arrestor Hood

$

$

Not available

42

MTD 753-4315

Screw

$

$

Currently unavailable

43

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

44

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 46 & 47)

$83.99

$

In Stock, only 1 left!

0

45

MTD 753-047367

Piston and Rod Assembly

$

$

Currently unavailable

46

MTD 753-1197

Cylinder Gasket

$

$

Not available

47

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 20+

0

48

MTD 791-181524

Crankshaft Extension

$

$

Not available

MTD 791-180602

Engine Gasket Kit

Note: Not Shown

$71.99

$

Usually ships in 3-6 days

0

MTD 791-181069

O.E.M. Carburetor Repair Kit (Zama)

Note: Not Shown

$39.99

$

Usually ships in 3-6 days

0

MTD 791-180091

Gasket Diaphragm Repair Kit (Zama)

Note: Not Shown

$32.99

$

Usually ships in 3-6 days

0

MTD 753-1209

Piston Ring

Note: Not Shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04146

Short Block Assembly

Note: Not Shown; (includes 10, 15, 23, 38, 42-47)

$

$

Not available
