RGD330017640 - Subaru Robin Generator 101 Crankcase Parts Diagram

Generator

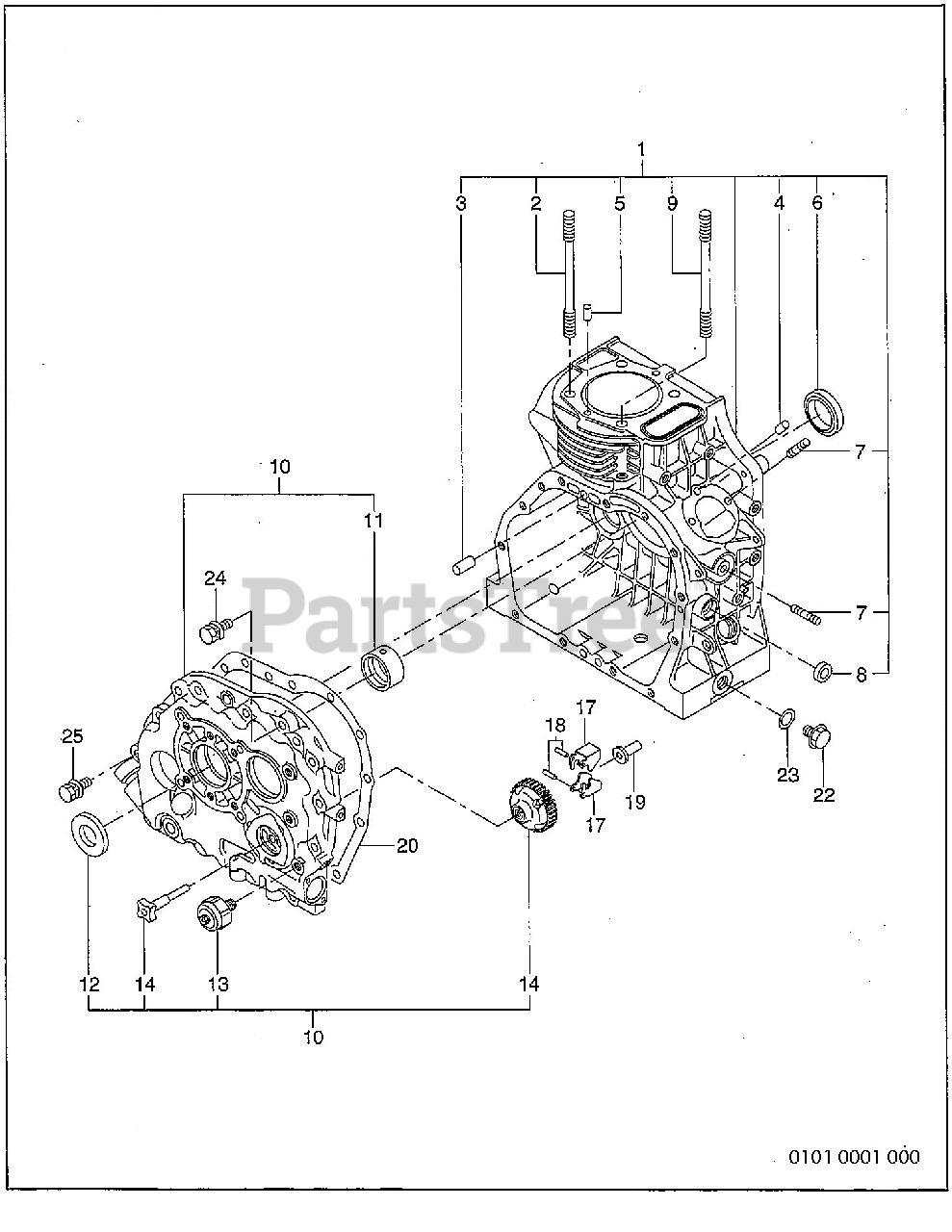

101 Crankcase Parts Diagram

  • Title

1

Subaru Robin 244-10107-61

CRANKCASE ASSY

Note: Includes ITEMS 2 thru 9

$1615.99

$

Usually ships in 2-12 days

0

2

Subaru Robin 244-16001-11

TENSION BOLT

$33.99

$

Usually ships in 2-12 days

0

3

Subaru Robin 005-26081-80

DOWEL PIN

$7.49

$

Usually ships in 2-12 days

0

4

Subaru Robin 031-00500-10

DOWEL PIN

$0.99

$

Usually ships in 2-12 days

0

5

Subaru Robin 031-00600-10

DOWEL PIN

$0.99

$

Usually ships in 2-12 days

0

6

Subaru Robin 044-03000-60

OIL SEAL (30X48X8mm)

$12.99

$

Usually ships in 2-12 days

0

7

Subaru Robin 001-37062-21

STUD

$2.99

$

Usually ships in 2-12 days

0

8

Subaru Robin 044-00800-30

OIL SEAL (8X18X7mm)

$11.99

$

Usually ships in 2-12 days

0

9

Subaru Robin 244-16002-11

TENSION BOLT

$33.99

$

Usually ships in 2-12 days

0

10

Subaru Robin 244-11003-61

MAIN BEARING COVER ASSY

Note: Includes ITEMS 11 thru 14

$460.99

$

Usually ships in 2-12 days

0

11

Subaru Robin 243-15801-03

MAIN BEARING, STD.

$23.99

$

Usually ships in 2-12 days

0

11

Subaru Robin 243-15802-03

MAIN BEARING, under size 0.25mm

$26.99

$

Usually ships in 2-12 days

0

11

Subaru Robin 243-15803-03

MAIN BEARING, under size 0.50mm

$26.99

$

Usually ships in 2-12 days

0

12

Subaru Robin 044-03000-30

OIL SEAL (30X45X8mm)

$26.99

$

Usually ships in 2-12 days

0

13

Subaru Robin 942-99513-00

SWITCH ASSY, oil presuure

$78.99

$

Usually ships in 2-12 days

0

14

Subaru Robin 243-45011-07

GOVERNOR GEAR SHAFT SET

$121.99

$

Usually ships in 2-12 days

0

17

Subaru Robin 220-41601-03

FLYWEIGHT

$3.99

$

Usually ships in 2-12 days

0

18

Subaru Robin 030-73000-70

PIN

$1.49

$

Usually ships in 2-12 days

0

19

Subaru Robin 205-41901-03

GOVERNOR SLEEVE

$19.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 243-15026-03

GASKET, bearing cover

$21.99

$

Usually ships in 2-12 days

0

22

Subaru Robin 040-11400-30

PLUG

$

$

Not available

23

Subaru Robin 021-11400-20

GASKET

$1.49

$

In Stock, Qty 5

0

24

Subaru Robin 001-13083-50

BOLT and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

25

Subaru Robin 001-13084-00

BOLT and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

--

Subaru Robin 256-99001-07

GASKET SET

$75.99

$

Usually ships in 2-12 days

0
