RGD330017640 - Subaru Robin Generator 2400 Control Parts Diagram

Generator

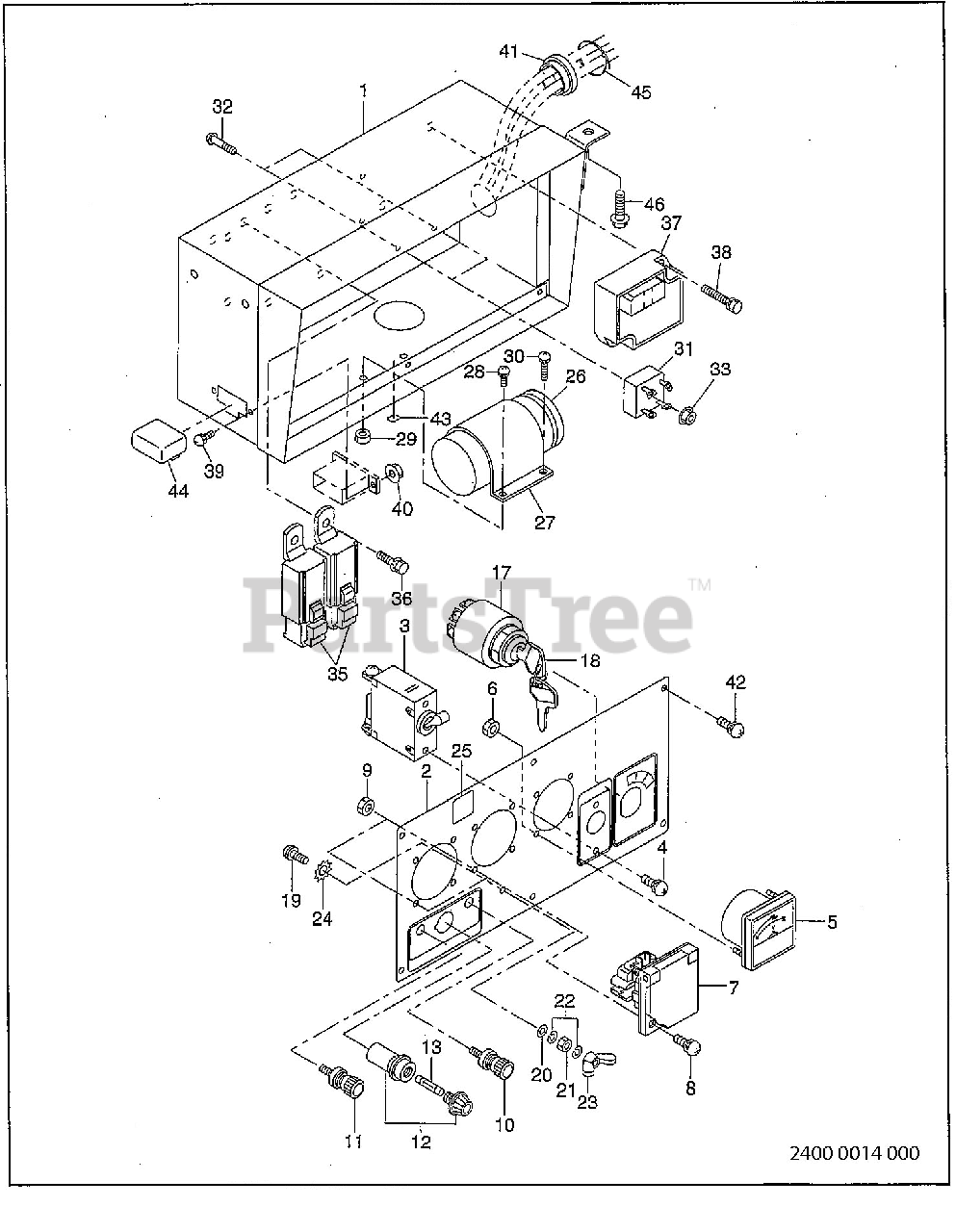

2400 Control Parts Diagram

  • Title

1

392-40112-00

CONTROL BOX ASSY

Note: Includes ITEMS 1 thru 13, 17 thru 33 and 35 thru 44

$

$

Not available

1

392-40103-01

CONTROL BOX ASSY

$

$

Not available

2

392-41110-00

CONTROL PANEL AS'Y

Note: Includes ITEMS 2 thru 13 and 17 thru 25

$

$

Not available

2

391-41107-01

CONTROL PANEL ASSY

$

$

Not available

3

392-43101-03

CIRCUIT BREAKER (12A)

$

$

Not available

4

Subaru Robin 004-37030-51

SCREW and WASHER ASSY

$2.49

$

Usually ships in 2-12 days

0

5

Subaru Robin 391-47902-01

AC VOLT METER ASSY

$254.99

$

Usually ships in 2-12 days

0

6

Subaru Robin 002-17030-00

NUT

$0.99

$

Usually ships in 2-12 days

0

7

Subaru Robin 358-40621-08

AC RECEPTACLE (250V-16A)

$37.99

$

Usually ships in 2-12 days

0

8

Subaru Robin 004-36031-20

SCREW and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

9

Subaru Robin 002-17030-00

NUT

$0.99

$

Usually ships in 2-12 days

0

10

Subaru Robin 363-45701-08

TERMINAL BOLT (RED)

$23.99

$

Usually ships in 2-12 days

0

11

Subaru Robin 363-45700-08

TERMINAL BOLT (BLACK)

$23.99

$

Usually ships in 2-12 days

0

12

Subaru Robin 320-59855-08

FUSE HOLDER (250V-10A)

$10.99

$

Usually ships in 2-12 days

0

13

Subaru Robin 008-02103-00

FUSE (l0A)

$1.99

$

Usually ships in 2-12 days

0

17

Subaru Robin 066-00003-30

SWITCH
(Superseded to 066-00003-31)

Note: Includes ITEM 18

$225.99

$

Usually ships in 2-12 days

0

18

Subaru Robin 066-00099-80

KEY

$60.99

$

Usually ships in 2-12 days

0

19

Subaru Robin 388-88001-03

SCREW and WASHER ASSY

Note: M5X14

$3.99

$

Usually ships in 2-12 days

0

20

Subaru Robin 353-49903-08

WASHER

$0.99

$

Usually ships in 2-12 days

0

21

Subaru Robin 353-49902-08

NUT

$0.99

$

Usually ships in 2-12 days

0

22

Subaru Robin 332-00050-08

SPRING WASHER

$0.99

$

Usually ships in 2-12 days

0

23

Subaru Robin 353-49901-08

WING NUT

Note: M5

$4.99

$

Usually ships in 2-12 days

0

24

Subaru Robin 003-30050-00

LOCK WASHER

$0.99

$

Usually ships in 2-12 days

0

25

073-20044-90

LABEL (ELECTRIC SHOCK)

$

$

Not available

26

Subaru Robin 389-05000-01

CONDENSER (300VAC-21uF)

$156.99

$

Usually ships in 2-12 days

0

27

Subaru Robin 388-86001-01

CONDENSER BRACKET

$5.99

$

Usually ships in 2-12 days

0

28

Subaru Robin 004-35041-00

SCREW and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

29

Subaru Robin 002-17040-00

NUT

$0.99

$

Usually ships in 2-12 days

0

30

Subaru Robin 389-59989-08

SCREW and WASHER ASSY

Note: M4X16

$0.99

$

Usually ships in 2-12 days

0

31

Subaru Robin 353-45804-08

DIODE STACK

$118.99

$

Usually ships in 2-12 days

0

32

Subaru Robin 004-35042-00

SCREW and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

33

Subaru Robin 002-37040-00

FLANGE NUT

$0.99

$

Usually ships in 2-12 days

0

35

Subaru Robin 391-48301-01

RELAY (CA) ASSY

$88.99

$

In Stock, only 1 left!

0

36

Subaru Robin 001-11061-60

BOLT and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

37

Subaru Robin KU3-11060-01

ECU (DYRM) ASSY

$390.99

$

Usually ships in 2-12 days

0

38

Subaru Robin 001-11063-50

BOLT and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

39

Subaru Robin 004-35041-60

SCREW and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

40

Subaru Robin 002-37040-00

FLANGE NUT

$0.99

$

Usually ships in 2-12 days

0

41

Subaru Robin 389-47552-08

GROMMET

$5.99

$

Usually ships in 2-12 days

0

42

Subaru Robin 353-49904-08

SCREW and WASHER ASSY

Note: M4X10

$1.49

$

Usually ships in 2-12 days

0

43

Subaru Robin 073-20026-51

LABEL, GROUND

$1.49

$

Usually ships in 2-12 days

0

44

31G-4950 1-03

CONNECTOR CAP

$

$

Not available

45

Subaru Robin 056-30000-20

WIRE BAND

$2.99

$

Usually ships in 2-12 days

0

46

Subaru Robin 011-00600-80

FLANGE BOLT

$1.99

$

Usually ships in 2-12 days

0
