RGD330017640 - Subaru Robin Generator 501 Starter Motor Parts Diagram

Generator

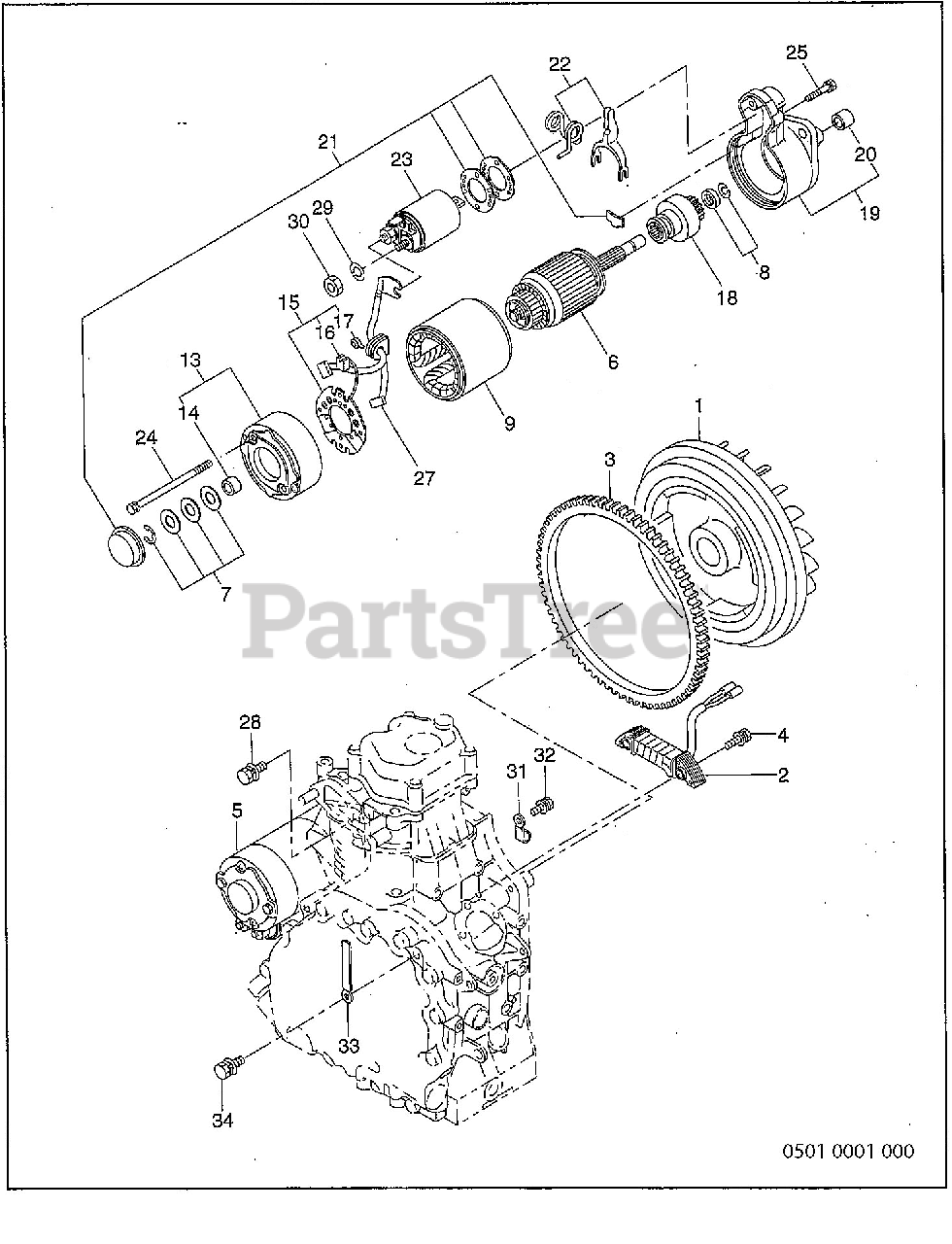

501 Starter Motor Parts Diagram

  • Title

34

BOLT and WASHER ASSY

$

$

Not available

1

Subaru Robin 243-70110-41

!FLYWHEEL ASSY

$246.99

$

Usually ships in 2-12 days

0

2

Subaru Robin 243-70121-11

EXCITER COIL ASSY

$76.99

$

Usually ships in 2-12 days

0

3

Subaru Robin 243-71002-13

RING GEAR

$160.99

$

Usually ships in 2-12 days

0

4

Subaru Robin 004-35062-50

SCREW and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

5

Subaru Robin 255-70502-00

STARTING MOTOR ASSY

Note: Includes ITEMS 6 thru 9, 13 thru 27

$1095.99

$

Usually ships in 2-12 days

0

6

Subaru Robin 255-70561-08

ARMATURE ASSY

$304.99

$

Usually ships in 2-12 days

0

7

Subaru Robin 210-70533-08

THRUST WASHER KIT

$3.49

$

Usually ships in 2-12 days

0

8

Subaru Robin 210-70534-08

PINION STOPPER SET

$14.99

$

Usually ships in 2-12 days

0

9

Subaru Robin 255-70580-08

YOKE ASSY

$146.99

$

Usually ships in 2-12 days

0

13

Subaru Robin 255-70505-08

REAR COVER ASSY

Note: Includes ITEM 14

$47.99

$

Usually ships in 2-12 days

0

14

Subaru Robin 210-70542-08

STARTER METAL

$21.99

$

Usually ships in 2-12 days

0

15

Subaru Robin 255-70531-08

BRUSH HOLDER ASSY

Note: Includes ITEMS 16, 17, 27

$51.99

$

Usually ships in 2-12 days

0

16

Subaru Robin 228-70514-08

BRUSH(-)

$25.99

$

Usually ships in 2-12 days

0

17

Subaru Robin 228-70516-08

BRUSH SPRING

$7.99

$

Usually ships in 2-12 days

0

18

Subaru Robin 255-70521-08

PINION ASSY

$238.99

$

Usually ships in 2-12 days

0

19

Subaru Robin 255-70501-08

GEAR CASE ASSY

Note: Includes ITEM 20

$268.99

$

Usually ships in 2-12 days

0

20

21Q-70542-08

STARTER METAL

$

$

Not available

21

Subaru Robin 255-70570-08

DUST COVER KIT

$19.99

$

Usually ships in 2-12 days

0

22

Subaru Robin 243-70525-08

SHIFT LEVER KIT

$14.99

$

Usually ships in 2-12 days

0

23

Subaru Robin 255-70515-08

MAGNETIC SWITCH ASSY

$314.99

$

Usually ships in 2-12 days

0

24

Subaru Robin 207-70524-08

THROUGH BOLT

$13.99

$

Usually ships in 2-12 days

0

25

Subaru Robin 228-70522-08

BOLT

$6.99

$

Usually ships in 2-12 days

0

27

Subaru Robin 255-70551-08

BRUSH SET

$25.99

$

Usually ships in 2-12 days

0

28

Subaru Robin 001-14083-00

BOLT and WASHER ASSY

$1.49

$

Usually ships in 2-12 days

0

29

Subaru Robin 003-20080-00

SPRING WASHER

$0.99

$

In Stock, only 1 left!

0

30

Subaru Robin 002-28080-00

NUT

$0.99

$

Usually ships in 2-12 days

0

31

Subaru Robin 226-75101-03

CLAMP

Note: Includes ITEM 1 thru 3

$2.49

$

Usually ships in 2-12 days

0

32

Subaru Robin 004-35061-00

SCREW and WASHER ASSY

$0.99

$

Usually ships in 2-12 days

0

33

Subaru Robin 056-60001-70

CLAMP

$1.49

$

Usually ships in 2-12 days

0
