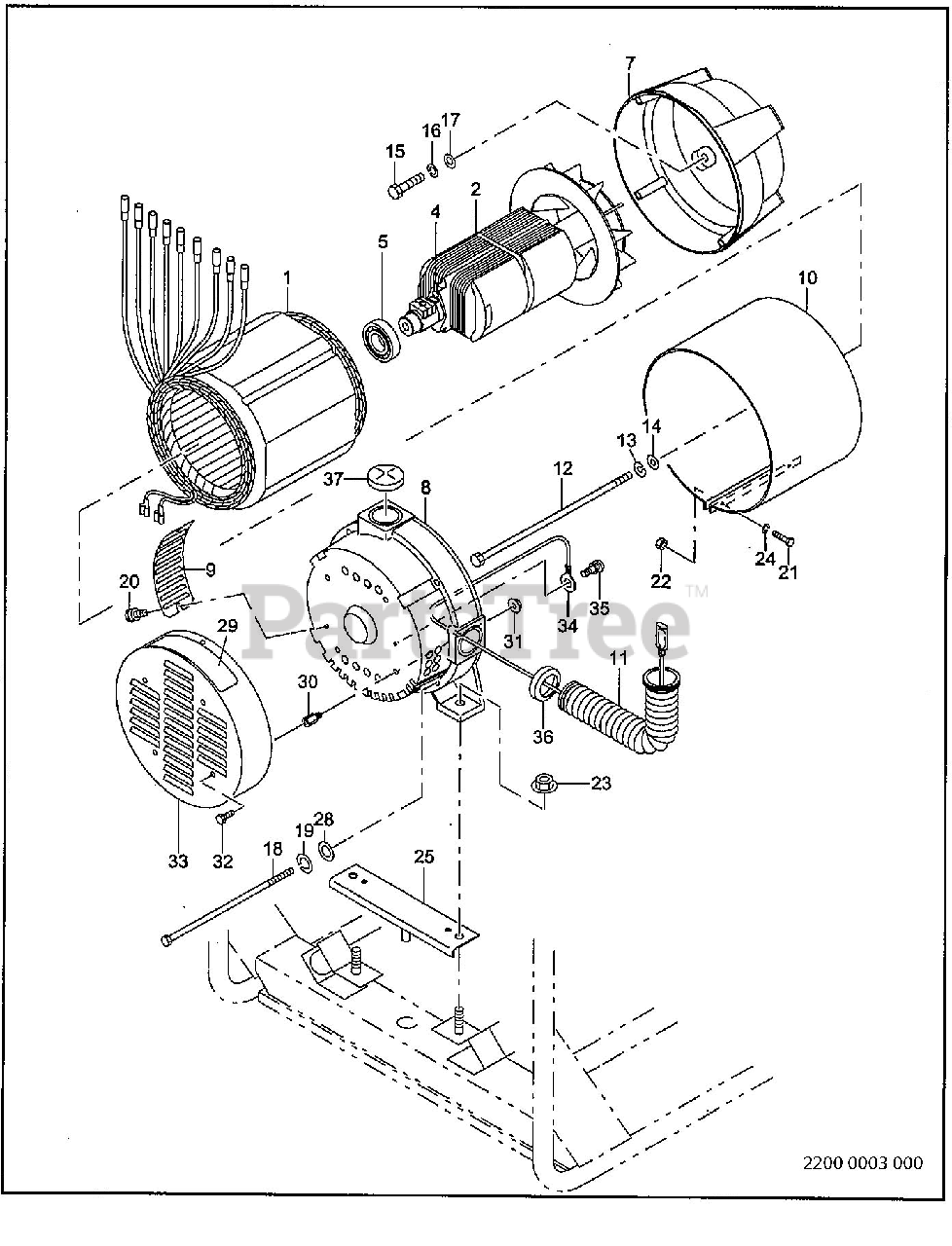

RGV10K36040 - Subaru Robin Generator 2200 Generator Parts Diagram

Generator

2200 Generator Parts Diagram

  • Title

1

31G-52019-01

STATOR ASSY

Note: For 50Hz-220V

$

$

Not available

1

Subaru Robin 31G-52022-01

STATOR ASSY

Note: For 50Hz-240V

$4172.99

$

Usually ships in 2-12 days

0

1

31G-52013-01

STATOR ASSY

Note: For 50Hz-230V CE

$

$

Not available

1

31G-52021-01

STATOR ASSY

Note: For 60Hz-120V/240V & 60Hz-110V/220V

$

$

Not available

2

Subaru Robin 31G-52001-01

ROTOR ASSY

Note: Includes item 5

$1474.99

$

Usually ships in 2-12 days

0

5

Subaru Robin 333-58206-08

BEARING

$48.99

$

Usually ships in 2-12 days

0

7

Subaru Robin 31F-53001-03

FRONT BRACKET

$1072.99

$

Usually ships in 2-12 days

0

8

Subaru Robin 31G-53001-01

REAR COVER

$315.99

$

Usually ships in 2-12 days

0

9

Subaru Robin 31F-54004-01

BRUSH COVER

$12.99

$

Usually ships in 2-12 days

0

10

Subaru Robin 31F-54003-01

STATOR COVER

$157.99

$

Usually ships in 2-12 days

0

11

Subaru Robin 353-57506-08

BUSHING

$58.99

$

Usually ships in 2-12 days

0

12

Subaru Robin 31F-54002-01

THROUGH BOLT

Note: 5/16-24X265

$56.99

$

Usually ships in 2-12 days

0

13

Subaru Robin 003-20080-00

SPRING WASHER

$0.99

$

In Stock, only 1 left!

0

14

Subaru Robin 003-10080-00

WASHER

$0.99

$

In Stock, only 1 left!

0

15

Subaru Robin 31F-54001-01

BOLT

Note: 3/8-16X25

$8.49

$

Usually ships in 2-12 days

0

16

Subaru Robin 003-20100-00

SPRING WASHER

$0.99

$

Usually ships in 2-12 days

0

17

Subaru Robin 003-10100-00

WASHER

$0.99

$

Usually ships in 2-12 days

0

19

Subaru Robin 003-20080-00

SPRING WASHER

$0.99

$

In Stock, only 1 left!

0

20

Subaru Robin 356-59953-08

BOLT and WASHER ASSY

Note: M5X12

$0.99

$

Usually ships in 2-12 days

0

21

Subaru Robin 31F-54005-01

BOLT

Note: M4X18

$1.49

$

Usually ships in 2-12 days

0

22

Subaru Robin 002-17040-00

NUT

Note: M4

$0.99

$

Usually ships in 2-12 days

0

23

Subaru Robin 002-38100-00

FLANGE NUT

Note: M10

$2.99

$

Usually ships in 2-12 days

0

24

Subaru Robin 003-20040-00

SPRING WASHER

$0.99

$

Usually ships in 2-12 days

0

25

Subaru Robin 31F-61002-01

GENERATOR BASE

$285.99

$

Usually ships in 2-12 days

0

28

Subaru Robin 003-10080-00

WASHER

$0.99

$

In Stock, only 1 left!

0

29

31G-81033-03

LABEL(SPEC)

Note: 50Hz-220V

$

$

Not available

29

31G-81034-03

LABEL(SPEC)

Note: 50Hz-240V

$

$

Not available

29

31G-81032-03

LABEL(SPEC)

Note: 50Hz-230V CE

$

$

Not available

29

31G-81036-03

LABEL(SPEC)

Note: 60Hz-120V/240V

$

$

Not available

29

31G-81035-03

LABEL(SPEC)

Note: 60Hz-110V/220V

$

$

Not available

34

Subaru Robin 31F-62017-01

EARTH WIRE

$15.99

$

Usually ships in 2-12 days

0

35

Subaru Robin 392-49986-08

SCREW and WASHER

Note: M4X6

$1.49

$

Usually ships in 2-12 days

0

36

Subaru Robin 354-54525-08

CAP

$10.99

$

Usually ships in 2-12 days

0

37

Subaru Robin 354-54514-08

CAP

$7.99

$

Usually ships in 2-12 days

0
