RGV12K36030 - Subaru Robin Generator 500 Starter Motor Parts Diagram

Generator

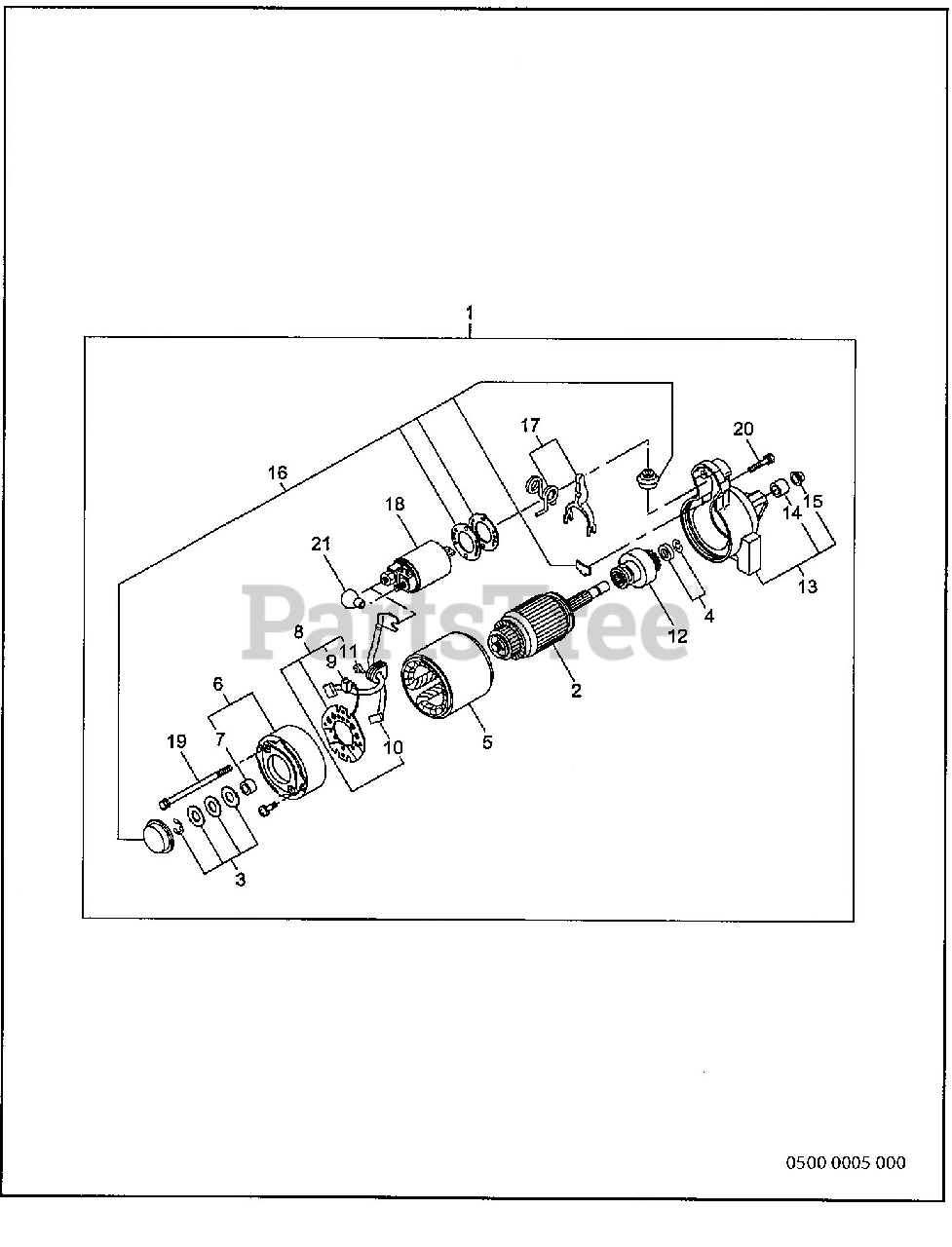

500 Starter Motor Parts Diagram

  • Title

1

Subaru Robin 263-70502-A0

STARTING MOTOR ASSY

Note: Includes ITEMS 2 thru 21

$

$

Not available

2

Subaru Robin 263-70510-08

ARMATURE ASSY

$413.99

$

Usually ships in 2-12 days

0

3

Subaru Robin 263-70550-08

THRUST WASHER KIT

$13.65

$

Usually ships in 2-12 days

0

4

Subaru Robin 210-70534-08

PINION STOPPER SET

$10.23

$

Usually ships in 2-12 days

0

5

Subaru Robin 255-70580-08

YOKE ASSY

$101.86

$

Usually ships in 2-12 days

0

6

Subaru Robin 263-70505-08

REAR COVER ASSY

Note: Includes ITEM 7

$43.25

$

Usually ships in 2-12 days

0

8

Subaru Robin 255-70531-08

BRUSH HOLDER ASSY

Note: Includes ITEMS 9 thru 11

$

$

Not available

9

Subaru Robin 228-70514-08

BRUSH(-)

$15.99

$

Usually ships in 2-12 days

0

10

Subaru Robin 255-70551-08

BRUSH SET

$

$

Not available

11

Subaru Robin 228-70516-08

BRUSH SPRING

$5.36

$

Usually ships in 2-12 days

0

12

Subaru Robin 255-70521-08

PINION ASSY

$165.30

$

Usually ships in 2-12 days

0

13

Subaru Robin 263-70500-08

GEAR CASE ASSY

Note: Includes ITEMS 14 and 15

$278.99

$

Usually ships in 2-12 days

0

16

Subaru Robin 255-70570-08

DUST COVER KIT

$13.64

$

Usually ships in 2-12 days

0

17

Subaru Robin 243-70525-08

SHIFT LEVER KIT

$9.84

$

Usually ships in 2-12 days

0

18

Subaru Robin 263-70515-08

MAGNETIC SWITCH ASSY

$

$

Not available

19

Subaru Robin 207-70524-08

THROUGH BOLT

$9.40

$

Usually ships in 2-12 days

0

20

Subaru Robin 263-70551-08

BOLT

$4.99

$

Usually ships in 2-12 days

0

21

Subaru Robin 207-70526-08

RUBBER CAP

$4.49

$

Usually ships in 2-12 days

0
