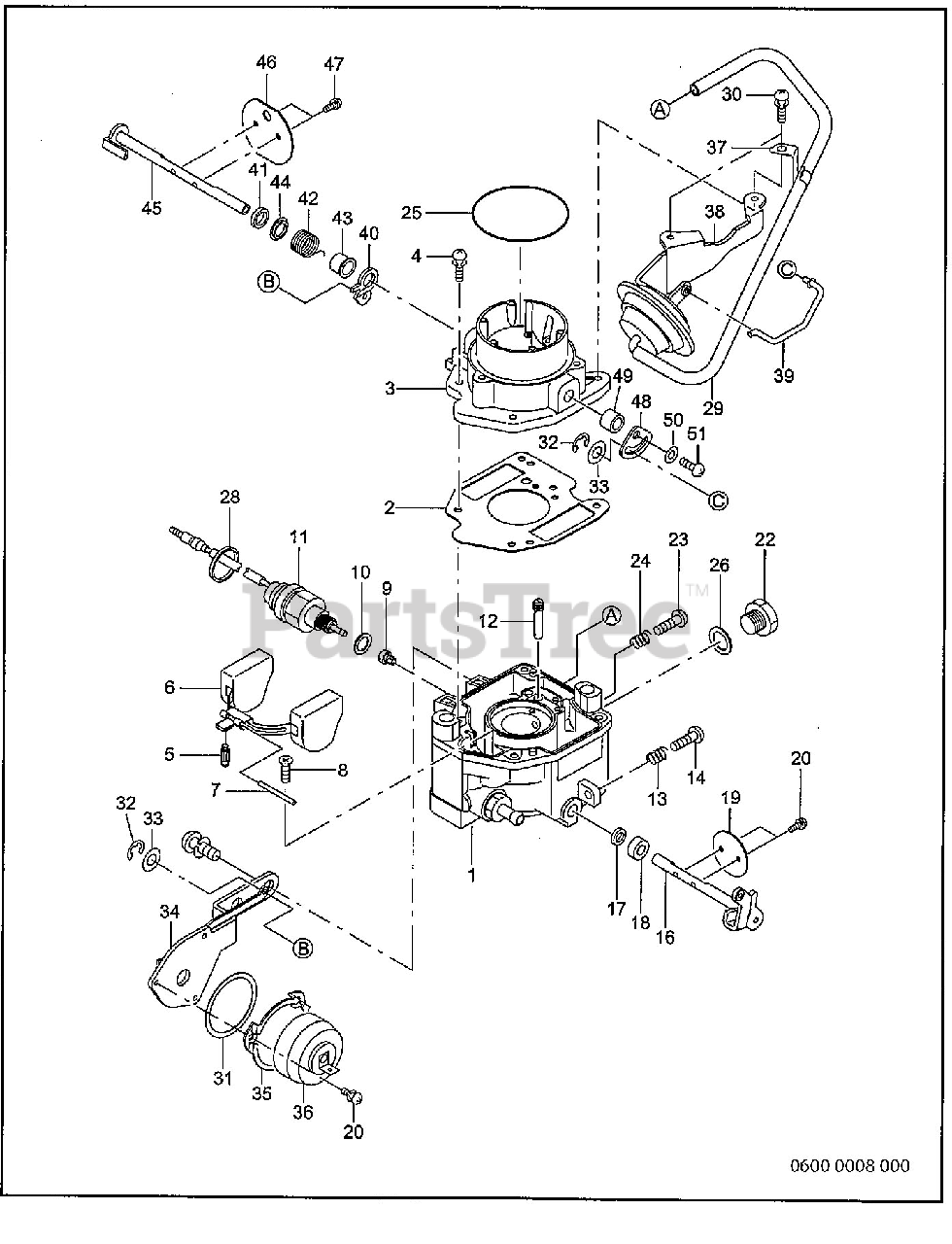

RGV12K36030 - Subaru Robin Generator 600 Carburetor (Auto Choke) Parts Diagram

Generator

600 Carburetor (Auto Choke) Parts Diagram

  • Title

1

Subaru Robin 263-62312-00

CARBURETOR ASSY

Note: Includes ITEMS 2 thru 51

$914.99

$

Usually ships in 2-12 days

0

2

Subaru Robin 258-62545-08

GASKET, air horn

$35.99

$

In Stock, only 1 left!

0

4

Subaru Robin 258-62450-08

SCREW, air horn set

$0.99

$

In Stock, only 1 left!

0

5

Subaru Robin 226-62501-08

VALVE, float

$52.99

$

Usually ships in 2-12 days

0

6

Subaru Robin 258-62505-08

FLOAT ASSY

$

$

Not available

7

Subaru Robin 258-62515-08

FLOAT PIN

$2.99

$

In Stock, only 1 left!

0

8

Subaru Robin 258-62556-08

SCREW, float pin set

$0.99

$

In Stock, Qty 10

0

9

Subaru Robin 263-62400-08

MAIN JET (#132)

$33.99

$

In Stock, only 1 left!

0

10

Subaru Robin 258-62546-08

GASKET

$2.49

$

In Stock, only 1 left!

0

11

Subaru Robin 258-62557-18

SOLENOID VALVE ASSY

$196.99

$

Usually ships in 2-12 days

0

12

Subaru Robin 258-62420-08

JET, slow (#60)

$49.99

$

Usually ships in 2-12 days

0

13

Subaru Robin 258-62445-08

SPRING, adjust screw

$2.99

$

In Stock, only 1 left!

0

14

Subaru Robin 258-62451-08

SCREW, throttle adjust

$0.99

$

Usually ships in 2-12 days

0

16

Subaru Robin 263-62534-08

THROTTLE SHAFT ASSY

$42.28

$

Usually ships in 2-12 days

0

17

Subaru Robin 226-62580-08

FILTER, throttle shaft

$9.49

$

In Stock, only 2 left!

0

18

Subaru Robin 258-62570-08

COLLAR, THROTTLE SHAFT

$

$

Not available

19

Subaru Robin 263-62535-08

THROTTLE VALVE

$9.78

$

Usually ships in 2-12 days

0

20

Subaru Robin 261-62352-08

SCREW, valve set

$2.99

$

Usually ships in 2-12 days

0

22

Subaru Robin 263-62551-08

PLUG

$8.40

$

Usually ships in 2-12 days

0

23

Subaru Robin 215-62353-08

SCREW, drain

$10.99

$

Usually ships in 2-12 days

0

24

Subaru Robin 215-62446-08

SPRING, drain

$

$

Not available

25

Subaru Robin 263-62560-08

O-RING, air horn

$12.99

$

In Stock, only 2 left!

0

26

Subaru Robin 263-62555-08

GASKET

$33.99

$

In Stock, Qty 7

0

28

Subaru Robin 258-62566-08

CLAMP, solenoid wire

$5.49

$

Usually ships in 2-12 days

0

29

Subaru Robin 263-62567-08

RUBBER PIPE

$9.40

$

Usually ships in 2-12 days

0

30

Subaru Robin 263-62589-08

SCREW, holder set

$0.99

$

Usually ships in 2-12 days

0

31

Subaru Robin 107-62373-08

GASKET

$14.99

$

Usually ships in 2-12 days

0

32

Subaru Robin 107-62377-08

E-CLIP

$0.99

$

Usually ships in 2-12 days

0

33

Subaru Robin 263-62596-08

WASHER

$1.49

$

Usually ships in 2-12 days

0

34

Subaru Robin 263-62562-08

HOLDER ASSY

$101.86

$

Usually ships in 2-12 days

0

35

Subaru Robin 107-62375-08

PLATE

$11.99

$

Usually ships in 2-12 days

0

36

Subaru Robin 107-62376-08

THERMOSTAT COVER ASSY

$135.99

$

Usually ships in 2-12 days

0

37

Subaru Robin 263-62568-08

HOLDER, vacuum hose

$7.60

$

Usually ships in 2-12 days

0

38

Subaru Robin 263-62352-08

CHOKE OPENER ASSY

$88.78

$

Usually ships in 2-12 days

0

39

Subaru Robin 263-62353-08

ROD, choke piston

$6.49

$

Usually ships in 2-12 days

0

40

Subaru Robin 263-62527-08

CHOKE LEVER ASSY

$21.14

$

Usually ships in 2-12 days

0

41

Subaru Robin 258-62551-08

RING, choke lever

$0.99

$

In Stock, only 1 left!

0

42

Subaru Robin 263-62447-08

SPRING, choke

$5.00

$

Usually ships in 2-12 days

0

43

Subaru Robin 258-62553-08

COLLAR, CHOKE

$6.49

$

In Stock, only 1 left!

0

44

Subaru Robin 258-62554-08

FILTER, choke shaft

$2.99

$

In Stock, only 1 left!

0

45

Subaru Robin 263-62523-08

SHAFT ASSY, choke

$47.09

$

Usually ships in 2-12 days

0

46

Subaru Robin 258-62525-08

CHOKE VALVE

$4.99

$

Usually ships in 2-12 days

0

47

Subaru Robin 258-62555-08

SCREW, valve set

$0.99

$

Usually ships in 2-12 days

0

48

Subaru Robin 263-62506-08

ARM, choke

$2.49

$

Usually ships in 2-12 days

0

49

Subaru Robin 263-62591-08

FILTER, air

$2.49

$

Usually ships in 2-12 days

0

50

Subaru Robin 263-62595-08

WASHER

$1.49

$

Usually ships in 2-12 days

0

51

Subaru Robin 161-62345-08

SCREW

$0.99

$

Usually ships in 2-12 days

0
