RGV12K63141 - Subaru Robin Generator 2200 Generator Parts Diagram

Generator

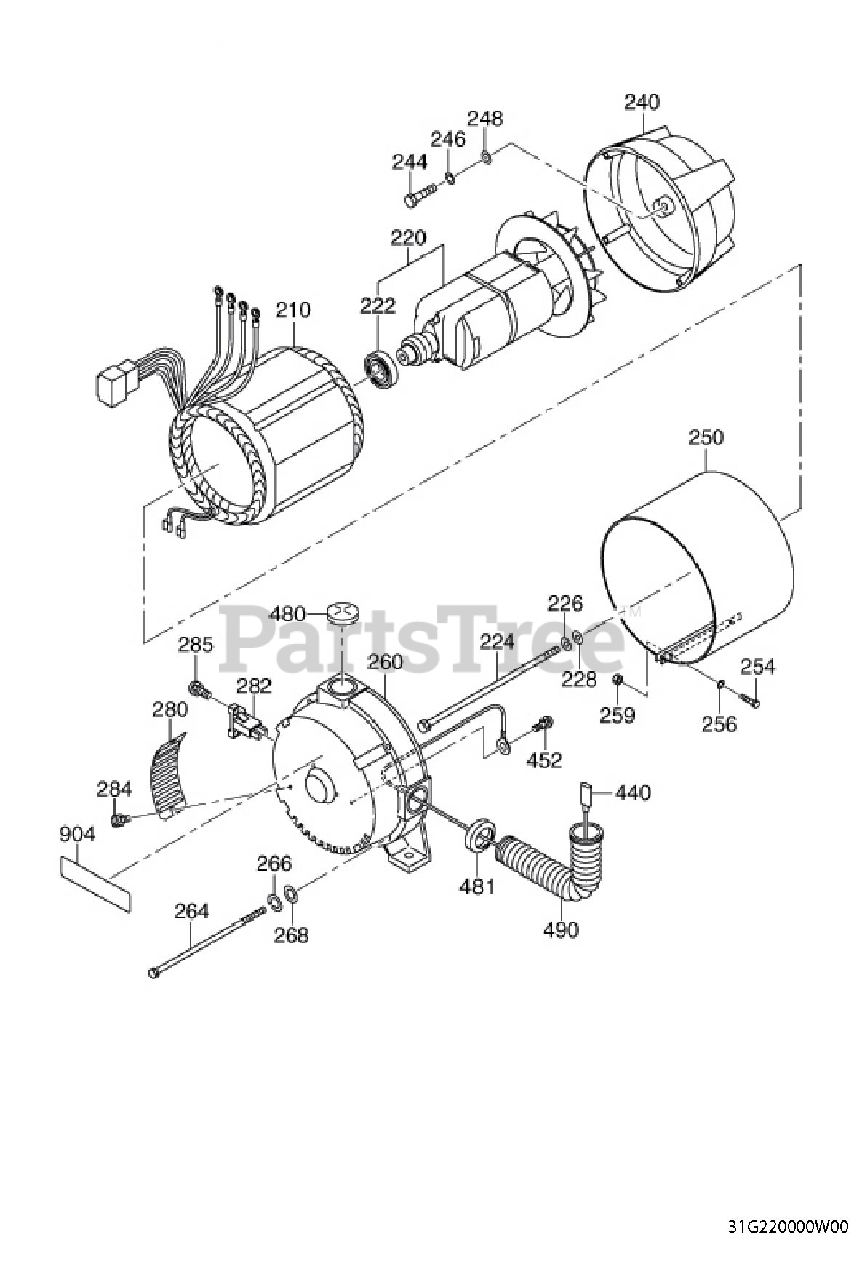

2200 Generator Parts Diagram

  • Title

210

Subaru Robin 31G-52024-01

STATOR ASSY

$3736.99

$

Usually ships in 2-12 days

0

220

Subaru Robin 31G-52001-01

ROTOR CP

$1474.99

$

Usually ships in 2-12 days

0

222

Subaru Robin 354-58204-08

BEARING

$53.99

$

Usually ships in 2-12 days

0

224

Subaru Robin 31F-54002-01

THROUGH BOLT

Note: 5/16-24X265

$56.99

$

Usually ships in 2-12 days

0

226

Subaru Robin 003-20080-00

SPRING WASHER

Note: 8.2DX15.4DX2T

$0.99

$

In Stock, only 1 left!

0

228

Subaru Robin 003-10080-00

WASHER

Note: 8.5DX16DX1.2T

$0.99

$

In Stock, only 1 left!

0

240

31F-53001-13

FRONT BRACKET

$

$

Not available

244

Subaru Robin 31F-54001-01

BOLT

Note: 3/8-16X25

$8.49

$

Usually ships in 2-12 days

0

246

Subaru Robin 003-20100-00

SPRING WASHER

Note: 10.2DX18.4DX2.5T

$0.99

$

Usually ships in 2-12 days

0

248

Subaru Robin 003-10100-00

WASHER

Note: 10.5DX18DX1.6T

$0.99

$

Usually ships in 2-12 days

0

250

Subaru Robin 31F-54003-01

STATOR COVER

$157.99

$

Usually ships in 2-12 days

0

254

Subaru Robin 31F-54005-01

BOLT

Note: M4X18

$1.49

$

Usually ships in 2-12 days

0

256

Subaru Robin 003-20040-00

SPRING WASHER

$0.99

$

Usually ships in 2-12 days

0

259

Subaru Robin 002-17040-00

NUT

Note: M4

$0.99

$

Usually ships in 2-12 days

0

260

Subaru Robin 31G-53013-01

REAR COVER

$327.99

$

Usually ships in 2-12 days

0

264

Subaru Robin 365-58006-08

THROUGH BOLT

Note: M8X240

$16.99

$

Usually ships in 2-12 days

0

266

Subaru Robin 003-20080-00

SPRING WASHER

Note: 8.2DX15.4DX2T

$0.99

$

In Stock, only 1 left!

0

268

Subaru Robin 003-10080-00

WASHER

Note: 8.5DX16DX1.2T

$0.99

$

In Stock, only 1 left!

0

280

Subaru Robin 31F-54004-01

BRUSH COVER

$12.99

$

Usually ships in 2-12 days

0

282

Subaru Robin 31G-74001-01

BRUSH HOLDER CP

$132.99

$

In Stock, only 1 left!

0

284

Subaru Robin 30A-71202-03

SCREW and WASHER AY

$2.49

$

Usually ships in 2-12 days

0

285

Subaru Robin 31G-62001-01

SCREW and WASHER AY

Note: M5X20

$1.49

$

In Stock, only 3 left!

0

440

Subaru Robin 31F-62019-01

EARTH WIRE

$29.99

$

Usually ships in 2-12 days

0

452

Subaru Robin 392-49986-08

SCREW

Note: M4X6L

$1.49

$

Usually ships in 2-12 days

0

490

Subaru Robin 353-57506-18

BUSHING

$58.99

$

Usually ships in 2-12 days

0
