RL 1036 AR - Electrolux/AYP Lawn Tractor 10HP ENGINE/B&S Parts Diagram

Lawn Tractor

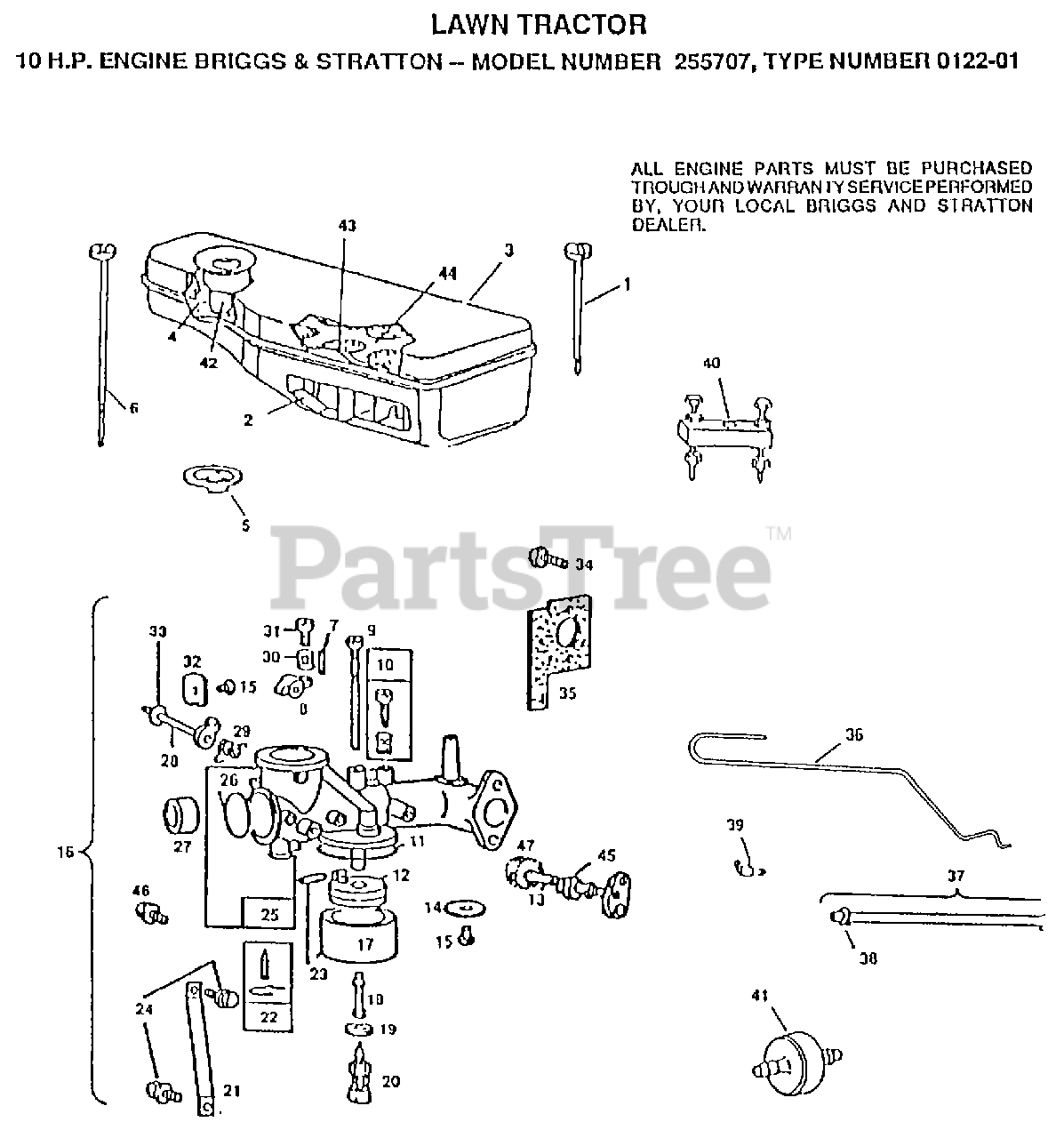

10HP ENGINE/B&S Parts Diagram

  • Title

1

Briggs & Stratton 93323

SCREW

$7.49

$

In Stock, only 3 left!

0

2

Briggs & Stratton 280118

SUPPORT, AIR CLEANER ELEMENT

$45.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 391786

CLEANER ASSY, AIR

$

$

Not available

4

Briggs & Stratton 270843

ELEMENT, AIR CLEANER
(Superseded to 270843S)

$17.99

$

In Stock, only 3 left!

0

5

Briggs & Stratton 270853

GASKET, AIR CLEANER

$9.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 93622

SCREW

$6.49

$

In Stock, only 1 left!

0

7

Briggs & Stratton 93043

PIN, THROTTLE STOP
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 211712

STOP, THROTTLE

$8.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 299740

NOZZLE CARBURETOR

$15.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 292681

VALVE ASSEMBLY, CARBURETOR IDLE SCREW, SEMS

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 270511

GASKET, FLOAT BOWL

$3.49

$

In Stock, Qty 7

0

12

Briggs & Stratton 299707

FLOAT, CARBURETOR

$13.99

$

In Stock, Qty 8

0

13

Briggs & Stratton 491006

SHAFT & LEVER, THROTTLE

$21.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 222433

VALVE, THROTTLE

$9.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 93499

SCREW
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 491562

CARBURETOR ASSY

$215.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 221995

BOWL, FLOAT

$8.99

$

In Stock, only 4 left!

0

18

Briggs & Stratton 231323

SCREW

$24.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 222014

WASHER
(Superseded to 690618)

$4.99

$

In Stock, Qty 11

0

20

Briggs & Stratton 396568

VALVE, NEEDLE

$20.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 222311

BRACKET, CARBURETOR
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

22

Briggs & Stratton 394681

VALVE, FUEL INLET

$7.99

$

In Stock, Qty 13

0

23

Briggs & Stratton 230896

PIN, FLOAT HINGE
(Superseded to 691775)

$3.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 93572

SCREW
(Superseded to 690664)

$5.49

$

In Stock, only 4 left!

0

25

Briggs & Stratton 391787

BODY ASSY, CARBURETOR

$75.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 221997

PLUG WELSH

$4.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 213115

VENTURI - CARBURETOR

$11.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 390684

SHAFT & LEVER, CHOKE

$16.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 261116

SPRING, CHOKE RETURN

$

$

Not available

30

Briggs & Stratton 26157

SPRING, THROTTLE ADJUSTMENT
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 91920

SCREW, MACHINE, FILLISTER HEAD
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 222010

VALVE, CHOKE

$7.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 270382

WASHER, FOAM
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 93357

SCREW, SEMS, CARBURETOR MOUNTING
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

35

Briggs & Stratton 270872

GASKET, CARBURETOR
(Superseded to 498869)

$5.49

$

In Stock, only 4 left!

0

36

Briggs & Stratton 261610

LINK, CHOKE

$10.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 393815

HOSE (CUT TO SUIT)
(Superseded to 791880)

$11.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

39

Briggs & Stratton 67218

CONNECTOR, FUEL PIPE
(Superseded to 691609)

$7.49

$

In Stock, Qty 8

0

40

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton 298090

FILTER, FUEL
(Superseded to 298090S)

$

$

Not available

42

Briggs & Stratton 222380

CUP, AIR CLEANER SUPPORT

$16.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 222495

SPACER, AIR CLEANER

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 222382

SCREEN, AIR CLEANER

$9.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 398970

SEAL, THROTTLE SHAFT
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 93543

SCREW, SEMS, HEX HEAD
(Superseded to 691082)

$4.99

$

In Stock, only 1 left!

0

47

Briggs & Stratton 271853

WASHER, THROTTLE SHAFT, FOAM
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

Briggs & Stratton 394698

CARBURETOR OVERHAUL KIT

$32.99

$

In Stock, only 3 left!

0

Briggs & Stratton 393411

GASKET SET

$60.99

$

Usually ships in 2-12 days

0
