RL 1442 A - Electrolux/AYP Lawn Tractor (1992) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

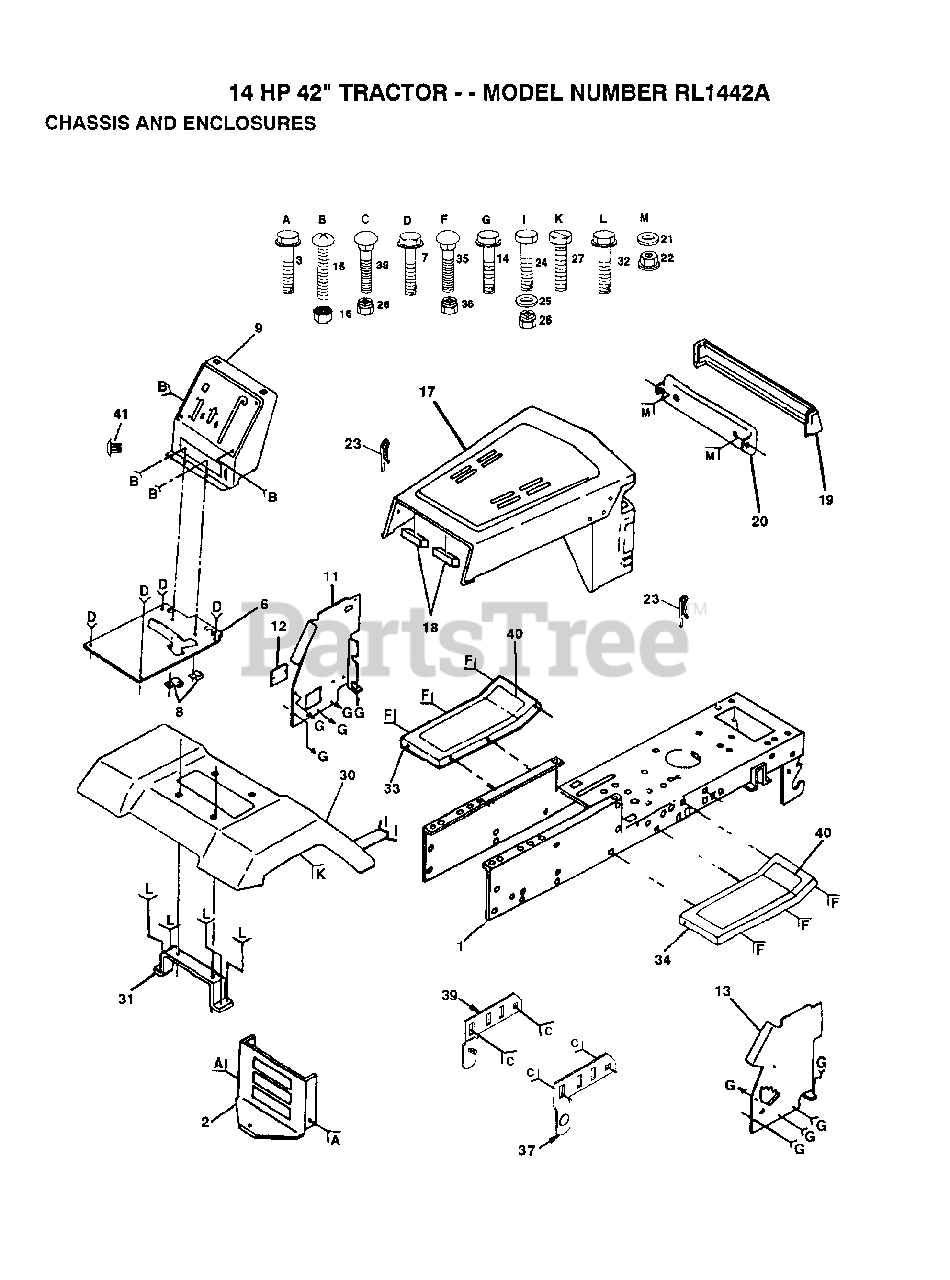

CHASSIS AND ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 135034

SUB= 145501

$

$

Not available

2

Electrolux/AYP 130805

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 130800X016

SADDLE

$

$

Not available

7

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

9

Electrolux/AYP 123042X013

DASH

$39.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 122795X

PANEL DASH LH

$5.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

13

Electrolux/AYP 126276X

SUB= 155936

$

$

Not available

14

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 133956X419

HOOD/GRILL ASM

$

$

Not available

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

19

Electrolux/AYP 133805

SUB= 133954
(Superseded to 133954)

$

$

Not available

20

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

21

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, Qty 13

0

22

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

23

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

24

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, Qty 19

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 109872X419

FENDER

$

$

Not available

31

Electrolux/AYP 109873X

SUB= 136619

$

$

Not available

32

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 105465X419

SUB= 145244X419

$

$

Not available

34

Electrolux/AYP 105464X419

FOOTREST RH

$5.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 134775

PIVOT BRKT RH
(Superseded to 532134775)

$

$

Not available

38

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

39

Electrolux/AYP 134774

PIVOT BRKT LH
(Superseded to 532134774)

$

$

Not available

40

Electrolux/AYP 131864

"PAD,FOOTREST"

$

$

Not available

41

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$4.99

$

Usually ships in 3-10 days

0
