RLT 125G331KVE (80235) - Snapper 33" Lawn Tractor, 12.5hp Dash Panel, Fuel Tank, Battery (Part 1) Parts Diagram

33" Lawn Tractor, 12.5hp

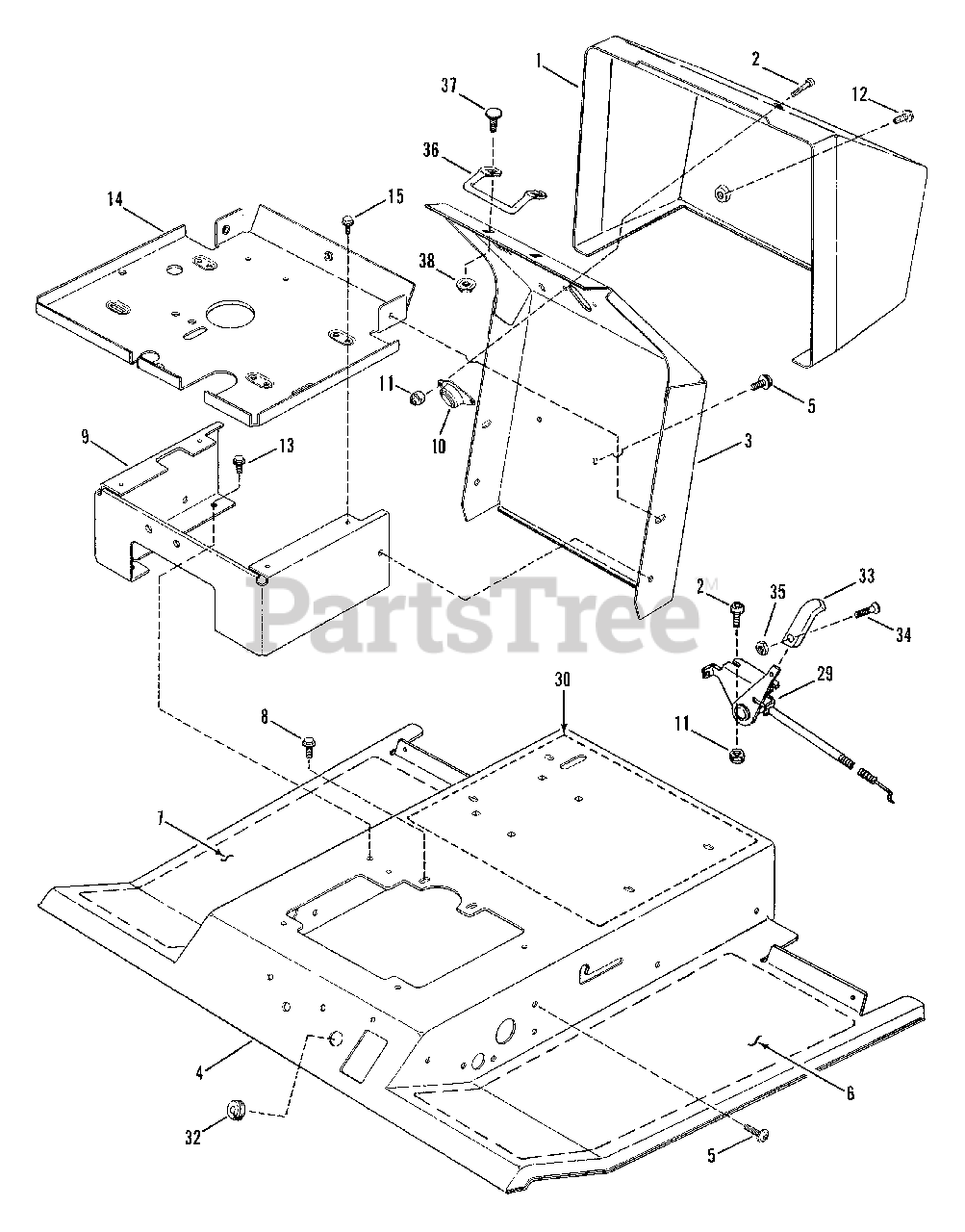

Dash Panel, Fuel Tank, Battery (Part 1) Parts Diagram

  • Title

1

Snapper 7052865

PANEL, Dash

Note: Was 52713

$

$

Currently unavailable

2

Snapper 7090996

SCREW, 1/4-20 x 1" Phillips

$2.99

$

In Stock, only 3 left!

0

3

Snapper 7040734

SUPPORT, Steering Shaft

$

$

Currently unavailable

4

Snapper 7051915

CHANNEL, Foot Rest
(Superseded to 7051915YP)

Note: (Includes item 30)

$422.99

$

Usually ships in 2-12 days

0

5

Snapper 7091000

SCREW, 5/16-18 x 7/8" Torx, S.T.
(Superseded to 1960086SM)

Note: Was 91001

$5.49

$

In Stock, only 2 left!

0

6

Snapper 7019400

TREAD, Left Side (Non-Skid)

$

$

Not available

7

Snapper 7019399

TREAD, Right Side (Non-Skid)

$

$

Not available

8

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Cap S.T.
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

9

Snapper 7033073

MOUNT, Fuel Tank/Battery
(Superseded to 7033073YP)

$61.99

$

Usually ships in 2-12 days

0

10

Snapper 7026196

FLANGE ASSM'Y., Steering Shaft
(Superseded to 7026196SM)

Note: Was 23173

$7.49

$

In Stock, Qty 14

0

11

Snapper 7076978

NUT, 1/4-20 Hex
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7090896

SCREW, #10-24 x 1/2" Self-Tapping
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

13

Snapper 7090858

SCREW, 5/16-18 x 1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, Qty 18

0

14

Snapper 7033078

PLATE, Fuel Tank & Battery Mount

$

$

Not available

15

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Cap, S.T.
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7016824

CONTROL, Throttle
(Superseded to 7016824YP)

$53.99

$

Usually ships in 2-12 days

0

30

Snapper 7017026

DECAL, Caution & Instruction

$

$

Not available

32

Snapper 7014856

GROMMET, 5/16 I.D. x 1" O.D. Split

$

$

Not available

33

Snapper 7023655

HANDLE, Throttle Control
(Superseded to 7023655YP)

$

$

Not available

34

Snapper 7091017

SCREW, #8-32 x 3/8" Recessed, Fillister Head
(Superseded to 7091017YP)

$4.49

$

In Stock, only 4 left!

0

35

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 7

0

36

Snapper 7017345

ROD, Hood Latch

$

$

Currently unavailable

37

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

38

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 11

0
