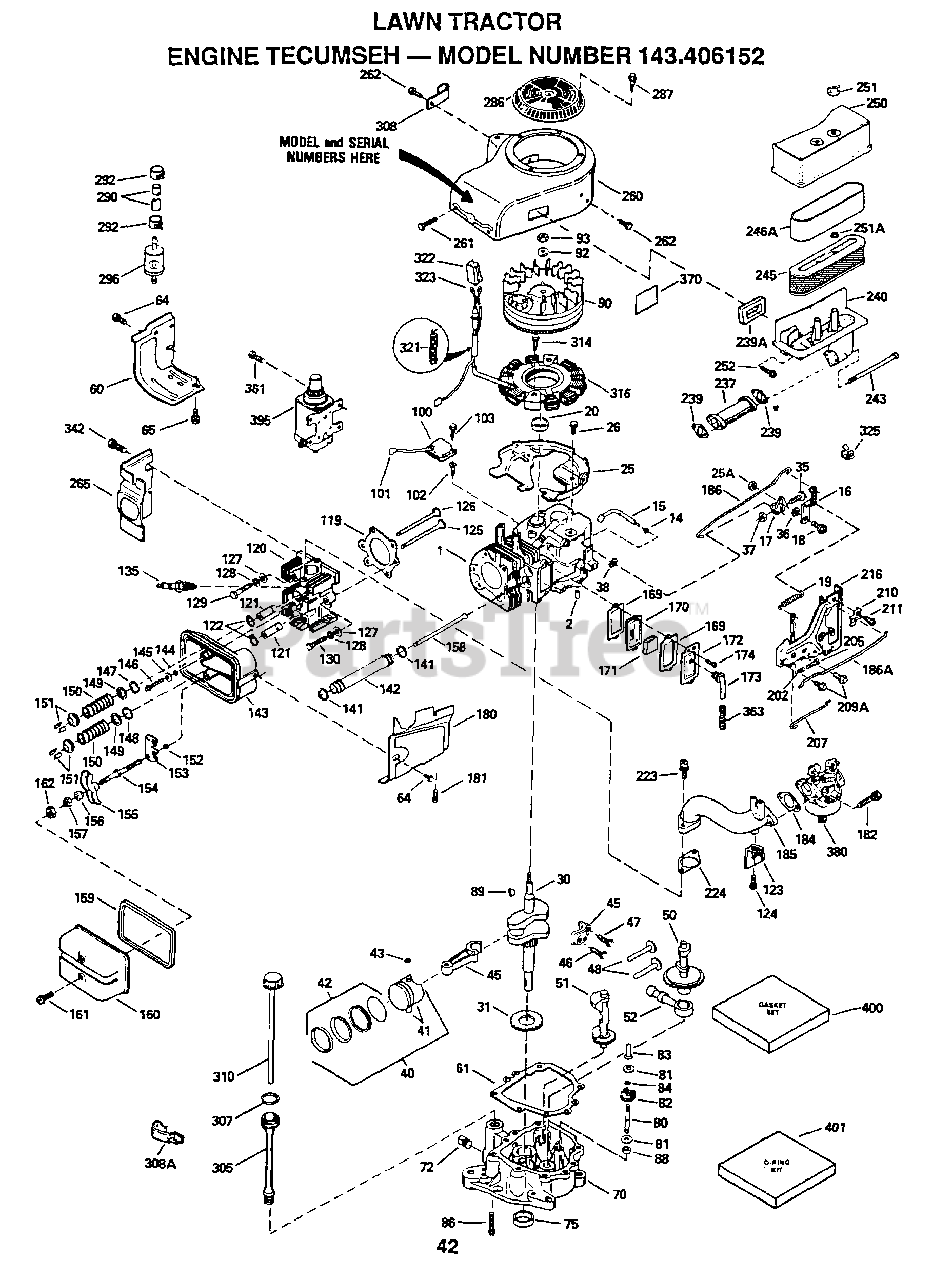

RLT E1238 AR - Electrolux/AYP Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

1

Tecumseh 35323A

CYLINDER ASSY

$

$

Not available

2

Tecumseh 27652

PIN, DOWEL

$2.49

$

In Stock, only 1 left!

0

14

Tecumseh 28277

WASHER

$1.99

$

In Stock, only 3 left!

0

15

Tecumseh 35324

ROD, GOVERNOR

$3.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35520

LEVER, GOVERNOR

$

$

Not available

17

Tecumseh 29916

CLAMP, THROTTLE LEVER

$1.99

$

In Stock, Qty 6

0

18

Tecumseh 650548

SCREW
(Superseded to 651018)

$1.99

$

In Stock, Qty 17

0

19

Tecumseh 35521

SPRING, CONTROL

$

$

Not available

20

Tecumseh 35319

SEAL, OIL

$4.99

$

In Stock, Qty 5

0

25

Tecumseh 35326

BAFFLE, BLOWER HOUSING
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

25A

Tecumseh 30322

NUT & WASHER

$1.99

$

Usually ships in 3-12 days

0

26

Tecumseh 650561

SCREW

$1.99

$

In Stock, only 4 left!

0

30

Tecumseh 35336A

CRANKSHAFT ASSY
(Superseded to 35336B)

$

$

Not available

31

Tecumseh 35327

GEAR, COUNTERBALANCE

$18.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

SCREW

$1.99

$

In Stock, Qty 5

0

36

Tecumseh 29918

WASHER

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

NUT, LOCK

$1.99

$

In Stock, Qty 5

0

38

Tecumseh 29642

RING, RETAINING

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 35776

PISTON, PIN & RING ASSY
(Superseded to 35776B)

$54.99

$

In Stock, only 3 left!

0

40A

Tecumseh 35777

PISTON, PIN & RING ASSY
(Superseded to 35777A)

$

$

Not available

40B

Tecumseh 35778

PISTON, PIN & RING ASSY
(Superseded to 35778A)

$158.99

$

In Stock, only 1 left!

0

41

Tecumseh 35773

PISTON & PIN ASSY
(Superseded to 35776B)

$54.99

$

In Stock, only 3 left!

0

41A

Tecumseh 35774

PISTON & PIN ASSY
(Superseded to 35777A)

$

$

Not available

41B

Tecumseh 35775

PISTON & PIN ASSY
(Superseded to 35778A)

$158.99

$

In Stock, only 1 left!

0

42

Tecumseh 35779

RING SET, PISTON

$44.99

$

In Stock, only 2 left!

0

42A

Tecumseh 35780

RING SET, PISTON

$

$

Not available

42B

Tecumseh 35781

RING SET, PISTON

$

$

Not available

43

Tecumseh 35772

RING, PISTON PIN RETAINING

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 35330A

ROD ASSY, CONNECTING
(Superseded to 36898A)

$52.99

$

In Stock, only 4 left!

0

46

Tecumseh 650908

BOLT, CONNECTING ROD
(Superseded to 651063)

$1.99

$

In Stock, only 3 left!

0

47

Tecumseh 650882

BOLT, CONNECTING ROD
(Superseded to 651033A)

$

$

Not available

48

Tecumseh 35313

LIFTER, VALVE
(Superseded to 35313A)

$

$

Not available

50

Tecumseh 35314A

CAMSHAFT
(Superseded to 35939)

$84.99

$

Usually ships in 3-12 days

0

51

Tecumseh 35315

WEIGHT ASSY, COUNTERBALANCE
(Superseded to 35315A)

$95.99

$

Usually ships in 3-12 days

0

52

Tecumseh 31356

PUMP ASSY, OIL

$12.99

$

Usually ships in 3-12 days

0

60

Tecumseh 35316

EXTENSION, BLOWER HOUSING
(Superseded to 35316A)

$3.99

$

Usually ships in 3-12 days

0

61

Tecumseh 35317

GASKET, MOUNTING FLANGE

$4.99

$

In Stock, only 1 left!

0

64

Tecumseh 30063

SCREW

$1.99

$

In Stock, Qty 20+

0

65

Tecumseh 650128

SCREW

$5.49

$

In Stock, only 2 left!

0

70

Tecumseh 35711A

FLANGE, MOUNTING

$

$

Not available

72

Tecumseh 31927

PLUG, OIL DRAIN

$1.99

$

In Stock, only 1 left!

0

75

Tecumseh 35319

SEAL, OIL

$4.99

$

In Stock, Qty 5

0

80

Tecumseh 35712

SHAFT, GOVERNOR

$3.99

$

Usually ships in 3-12 days

0

81

Tecumseh 35479

WASHER, FLAT
(Superseded to 651080)

$1.99

$

In Stock, Qty 8

0

82

Tecumseh 35321

GEAR ASSY, GOVERNOR

$9.49

$

Usually ships in 3-12 days

0

83

Tecumseh 35322

SPOOL, GOVERNOR

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

RING, RETAINING

$1.99

$

In Stock, Qty 9

0

86

Tecumseh 650833

SCREW

$1.99

$

Usually ships in 3-12 days

0

88

Tecumseh 31707A

SPACER, GOVERNOR GEAR

$1.99

$

In Stock, only 3 left!

0

89

Tecumseh 32589

KEY, FLYWHEEL

$1.49

$

In Stock, Qty 9

0

90

Tecumseh 611093

FLYWHEEL

$

$

Not available

92

Tecumseh 650880

WASHER, LOCK

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

NUT, FLYWHEEL

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135

SOLID STATE ASSY
(Superseded to 35135B)

$62.99

$

In Stock, only 3 left!

0

101

Tecumseh 610118

SPARK PLUG COVER

$6.49

$

In Stock, Qty 17

0

102

Tecumseh 650872

STUD, SOLID STATE ASSY
(Superseded to 651024)

$3.99

$

In Stock, Qty 7

0

103

Tecumseh 650814

SCREW
(Superseded to 651007)

$1.99

$

In Stock, Qty 5

0

119

Tecumseh 35306A

GASKET, CYLINDER HEAD

$11.99

$

In Stock, only 1 left!

0

120

Tecumseh 35307

HEAD ASSY, CYLINDER

$

$

Not available

121

Tecumseh 730218

VALVE GUIDE KIT

$24.99

$

In Stock, only 1 left!

0

122

Tecumseh 792035

RING, RETAINER

$4.49

$

In Stock, Qty 14

0

123

Tecumseh 35288

BRACE, INTAKE PIPE

$1.99

$

Usually ships in 3-12 days

0

124

Tecumseh 650738

SCREW

$3.99

$

In Stock, only 1 left!

0

125

Tecumseh 35308

VALVE, EXHAUST

$70.99

$

In Stock, only 1 left!

0

125A

Tecumseh 35433

VALVE, EXHAUST

$119.99

$

Usually ships in 3-12 days

0

126

Tecumseh 35309

VALVE, INTAKE

$33.99

$

Usually ships in 3-12 days

0

126A

Tecumseh 35432

VALVE, INTAKE

$96.99

$

Usually ships in 3-12 days

0

127

Tecumseh 650691

WASHER, FLAT

$1.99

$

In Stock, Qty 5

0

128

Tecumseh 650690

WASHER, BELLEVILLE
(Superseded to 730324)

$9.99

$

In Stock, only 3 left!

0

129

Tecumseh 650746

SCREW

$1.99

$

Usually ships in 3-12 days

0

130

Tecumseh 650692

SCREW

$

$

Not available

135

Tecumseh 34046

RESISTOR SPARK PLUG

$4.99

$

Usually ships in 3-12 days

0

141

Tecumseh 33481

O RING

$1.99

$

In Stock, Qty 6

0

142

Tecumseh 35475

TUBE, PUSH ROD

$

$

Not available

143

Tecumseh 35310

HOUSING, ROCKER ARM

$32.99

$

Usually ships in 3-12 days

0

144

Tecumseh 33484

O-RING

$1.99

$

In Stock, only 2 left!

0

145

Tecumseh 650168

WASHER, FLAT

$1.99

$

Usually ships in 3-12 days

0

146

Tecumseh 32610A

CONNECTING ROD BOLT

$1.99

$

In Stock, Qty 6

0

147

Tecumseh 33509

O-RING

$3.99

$

Usually ships in 3-12 days

0

148

Tecumseh 34410

O-RING

$3.99

$

Usually ships in 3-12 days

0

149

Tecumseh 33510

CAP, VALVE SPRING

$1.99

$

Usually ships in 3-12 days

0

150

Tecumseh 33507

SPRING, VALVE

$3.99

$

Usually ships in 3-12 days

0

151

Tecumseh 33508

CAP, VALVE SPRING KEEPER

$9.49

$

In Stock, only 2 left!

0

152

Tecumseh 35295

O-RING

$1.99

$

Usually ships in 3-12 days

0

153

Tecumseh 35296

GUIDE, PUSH ROD

$6.49

$

Usually ships in 3-12 days

0

154

Tecumseh 650878

STUD, ROCKER ARM

$5.49

$

Usually ships in 3-12 days

0

155

Tecumseh 35297

ARM, ROCKER
(Superseded to 730221A)

$37.99

$

Usually ships in 3-12 days

0

156

Tecumseh 35298

BEARING, ROCKER ARM

$1.99

$

In Stock, only 2 left!

0

157

Tecumseh 28264

NUT ASSY, LOCK

$3.99

$

In Stock, only 2 left!

0

158

Tecumseh 35466

ROD, PUSH

$14.99

$

In Stock, only 2 left!

0

159

Tecumseh 35299B

O-RING ASSY

$11.99

$

Usually ships in 3-12 days

0

160

Tecumseh 35300

COVER, ROCKER ARM HOUSING
(Superseded to 35300A)

$

$

Not available

161

Tecumseh 650879

SCREW

$1.99

$

Usually ships in 3-12 days

0

162

Tecumseh 650903

NUT, HEX JAM

$1.99

$

Usually ships in 3-12 days

0

169

Tecumseh 27896A

GASKET, VALVE COVER

$1.49

$

In Stock, Qty 20+

0

170

Tecumseh 28423

BODY, BREATHER

$13.99

$

Usually ships in 3-12 days

0

171

Tecumseh 28424

ELEMENT, BREATHER

$3.99

$

In Stock, Qty 16

0

172

Tecumseh 28425

COVER, VALVE SPRING BOX

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

TUBE, BREATHER

$6.49

$

In Stock, Qty 7

0

174

Tecumseh 650128

SCREW

$5.49

$

In Stock, only 2 left!

0

180

Tecumseh 35301

EXTENSION, BLOWER HOUSING

$

$

Not available

181

Tecumseh 650128

SCREW

$5.49

$

In Stock, only 2 left!

0

182

Tecumseh 650517

SCREW

$1.99

$

In Stock, only 4 left!

0

184

Tecumseh 33263

GASKET, CARBURETOR TO INTAKE PIPE

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 35304

PIPE, INTAKE
(Superseded to 35856)

$58.99

$

Usually ships in 3-12 days

0

186

Tecumseh 35522

LINK, GOVERNOR

$5.49

$

In Stock, only 1 left!

0

186A

Tecumseh 35523

LINK, CHOKE

$3.99

$

In Stock, only 1 left!

0

202

Tecumseh 33802

SPRING, COMPRESSION
(Superseded to 36482)

$3.99

$

In Stock, only 2 left!

0

205

Tecumseh 650777

SCREW
(Superseded to 651019)

$1.99

$

In Stock, Qty 5

0

207

Tecumseh 35525

LINK, CONTROL BRACKET

$

$

Not available

209A

Tecumseh 650902

SCREW

$1.99

$

In Stock, only 2 left!

0

210

Tecumseh 27793

CLIP, CONDUIT

$1.99

$

In Stock, only 2 left!

0

211

Tecumseh 28942

SCREW

$1.49

$

In Stock, only 4 left!

0

216

Tecumseh 35524

BRACKET ASSY

$41.99

$

Usually ships in 3-12 days

0
