RM 1300 (41BBESPG983) - Remington Blower, Electric General Assembly Parts Diagram

Blower, Electric

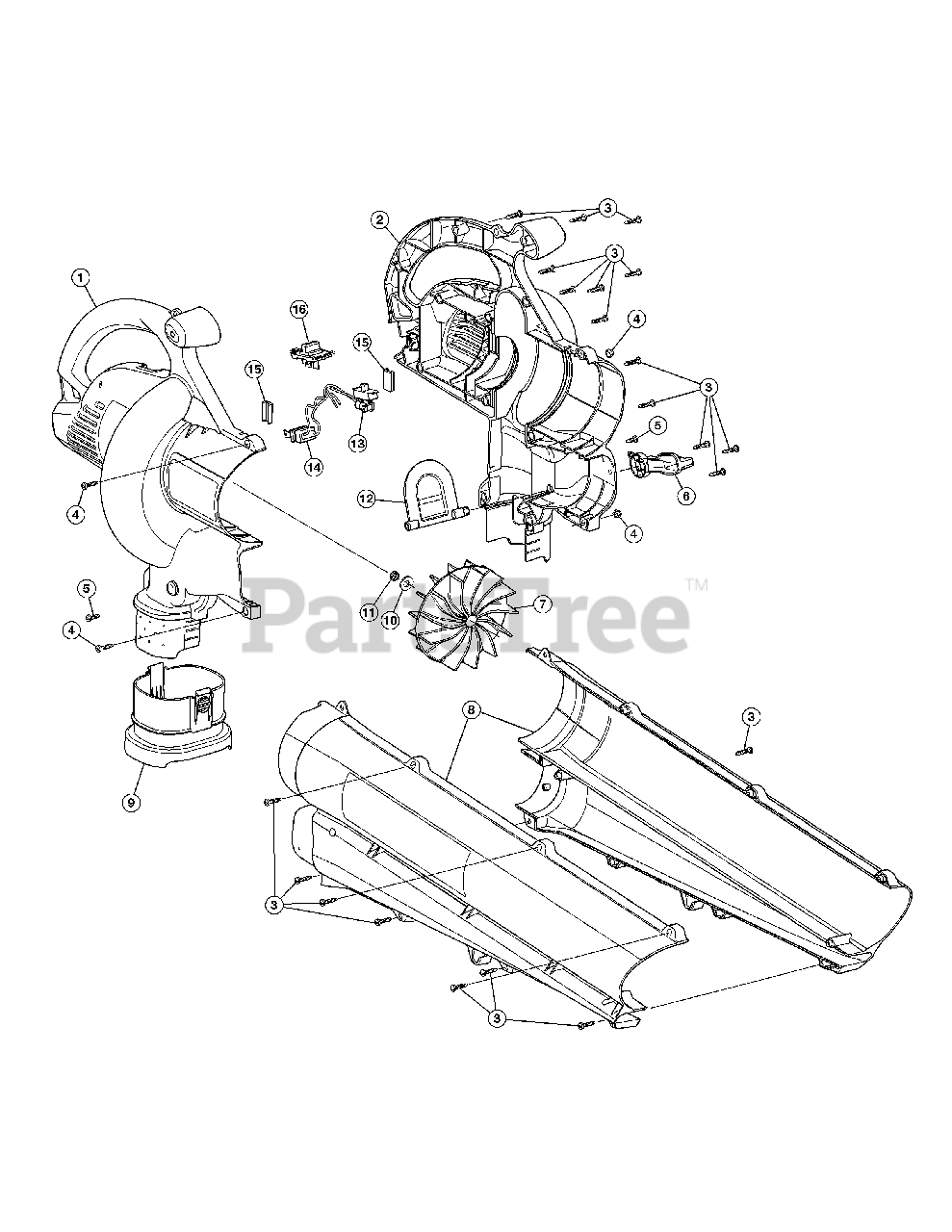

General Assembly Parts Diagram

  • Title

1

MTD 753-06956

Left Motor Housing

$25.99

$

Usually ships in 3-6 days

0

2

MTD 753-06957

Right Motor Housing

$25.99

$

Usually ships in 3-6 days

0

3

MTD 791-181482

Housing Screw

$4.99

$

Usually ships in 3-6 days

0

4

MTD 791-182425

Blower/ Vac Tube Mounting Hardware

$

$

Not available

5

MTD 791-181345

Screw

$4.49

$

Usually ships in 3-6 days

0

6

MTD 753-06958

Mode Control Lever

$3.49

$

Usually ships in 3-6 days

0

7

MTD 791-182550

Impeller

$44.99

$

In Stock, only 4 left!

0

8

MTD 791-00051

Blower/ Vac Tube Assembly (Incl. 3)

$65.99

$

Usually ships in 3-6 days

0

9

MTD 791-182417

Vacuum Bag Assembly

$19.99

$

Usually ships in 3-6 days

0

10

MTD 791-180505

Washer

$

$

Not available

11

MTD 791-182549

Spacer

$

$

Not available

12

MTD 791-182410

Mode Control Flapper

$10.99

$

Usually ships in 3-6 days

0

13

MTD 51396

Switch Assembly

$

$

Not available

14

MTD 791-182547

Power Connection Wire Assembly

$16.99

$

Usually ships in 3-6 days

0

15

MTD 50545

Rubber Cushion

$

$

Not available

16

MTD 753-06959

Switch Lever

$3.99

$

Usually ships in 3-6 days

0

MTD 725-0157

Cable Tie

Note: (not shown)

$3.99

$

In Stock, Qty 20+

0

MTD 753-04465

Vacuum Bag Assembly

Note: (Incl. 9, Vacuum Bag & Cable Tie)(not shown)

$76.99

$

In Stock, only 2 left!

0

MTD 791-682075B

Shoulder Harness

Note: (not shown)

$41.99

$

Usually ships in 3-6 days

0

MTD 753-04325

Patio Head

Note: (not shown)

$64.99

$

Usually ships in 3-6 days

0
