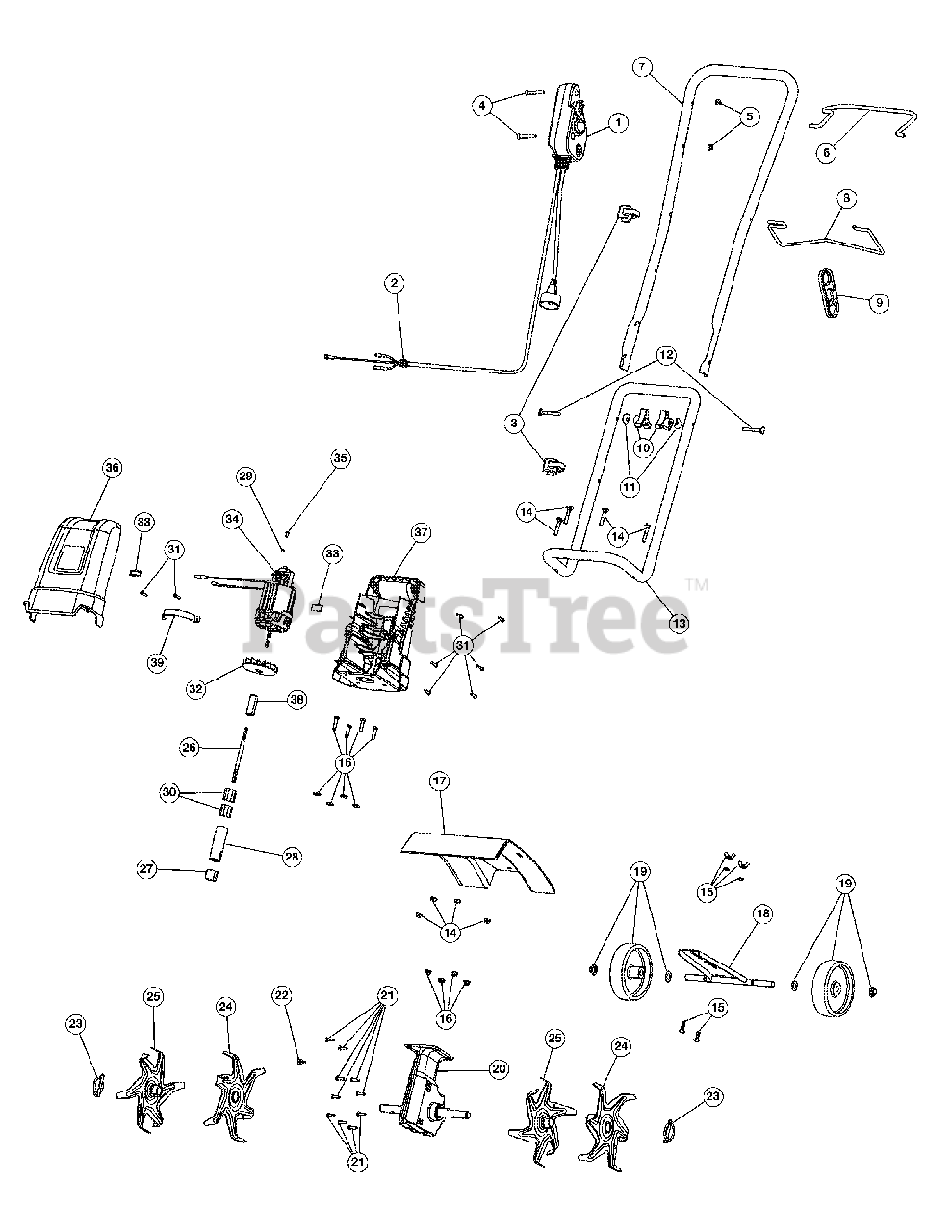

RM 151 C (21A-151A983) - Remington Tiller (2010) General Assembly Parts Diagram

Tiller

General Assembly Parts Diagram

  • Title

1

MTD 753-06370

Switch Assembly
(Superseded to 625-04027AS)

$253.99

$

Usually ships in 3-6 days

0

2

MTD 753-04428

Bushing

$18.99

$

Usually ships in 3-6 days

0

3

MTD 731-1820

Cable guide

$9.49

$

Usually ships in 3-6 days

0

4

MTD 753-04430

Screw

$4.49

$

Usually ships in 3-6 days

0

5

MTD 712-0324

Nut

$3.99

$

In Stock, only 4 left!

0

6

MTD 753-04432

Bail

$

$

Not available

7

MTD 753-06371

Upper Handle

$32.99

$

Usually ships in 3-6 days

0

8

MTD 753-04434

Guide Bar

$

$

Not available

9

MTD 726-0368-0637

Cord Restraint
(Superseded to 726-0368)

$8.49

$

Usually ships in 3-6 days

0

10

MTD 791-182677

Knob

$15.99

$

In Stock, only 2 left!

0

11

MTD 936-0451

Washer
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

12

MTD 791-182899

Bolt

$8.49

$

Usually ships in 3-6 days

0

13

MTD 753-06372

Lower Handle Bar

$21.99

$

Usually ships in 3-6 days

0

14

MTD 791-182681

Hardware, Handle Bar Mounting (lower)

$

$

Not available

15

MTD 791-182684

Wheel Bracket Mounting Hardware

$

$

Not available

16

MTD 753-06373

Guard Mounting Hardware

$

$

Not available

17

MTD 753-06374

Guard

$

$

Not available

18

MTD 753-05024

Wheel Bracket Assembly

$

$

Not available

19

MTD 753-04437

Wheel Assembly

$23.99

$

Usually ships in 3-6 days

0

20

MTD 753-05982

Gear Box Assembly
(Superseded to 753-06063)

$141.99

$

In Stock, only 1 left!

0

21

MTD 791-182195

Screw

$7.49

$

In Stock, Qty 20+

0

22

MTD 791-180288

Sleeve Retainer Bolt
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

23

MTD 753-05985

Click Pin

$6.49

$

Usually ships in 3-6 days

0

24

MTD 753-05984

Tine Assembly (Left Outer or Right Inner)

$37.99

$

Usually ships in 3-6 days

0

25

MTD 753-05983

Tine Assembly (Left Inner or Right Outer)

$37.99

$

Usually ships in 3-6 days

0

26

MTD 753-06383

Flex Shaft

$5.49

$

Usually ships in 3-6 days

0

27

MTD 753-04078

Sleeve

$11.99

$

Usually ships in 3-6 days

0

28

MTD 753-06375

Boom Tube

$

$

Not available

29

MTD 753-06376

Lock Washer
(Superseded to 1625)

$3.49

$

Usually ships in 3-6 days

0

30

MTD 753-06377

Flex Tube Assembly

$5.49

$

Usually ships in 3-6 days

0

31

MTD 710-04508

Screw

$4.49

$

In Stock, only 1 left!

0

32

MTD 791-180155

Fan

$21.99

$

Usually ships in 3-6 days

0

33

MTD 791-180503

Motor Pad

$

$

Not available

34

MTD 753-06378

Motor Assembly
(Superseded to 924-04008)

$

$

Not available

35

MTD 791-145569

Screw

$10.99

$

In Stock, Qty 7

0

36

MTD 753-06380

Front Motor Cover

$15.99

$

Usually ships in 3-6 days

0

37

MTD 753-06379

Rear Motor Cover

$

$

Not available

38

MTD 753-06381

Motor Hub

$4.99

$

Usually ships in 3-6 days

0

39

MTD 753-06382

Motor Strap

$2.49

$

Usually ships in 3-6 days

0
