RM 151 C (21B-151A983) - Remington Tiller (2015) General Assembly Parts Diagram

Tiller

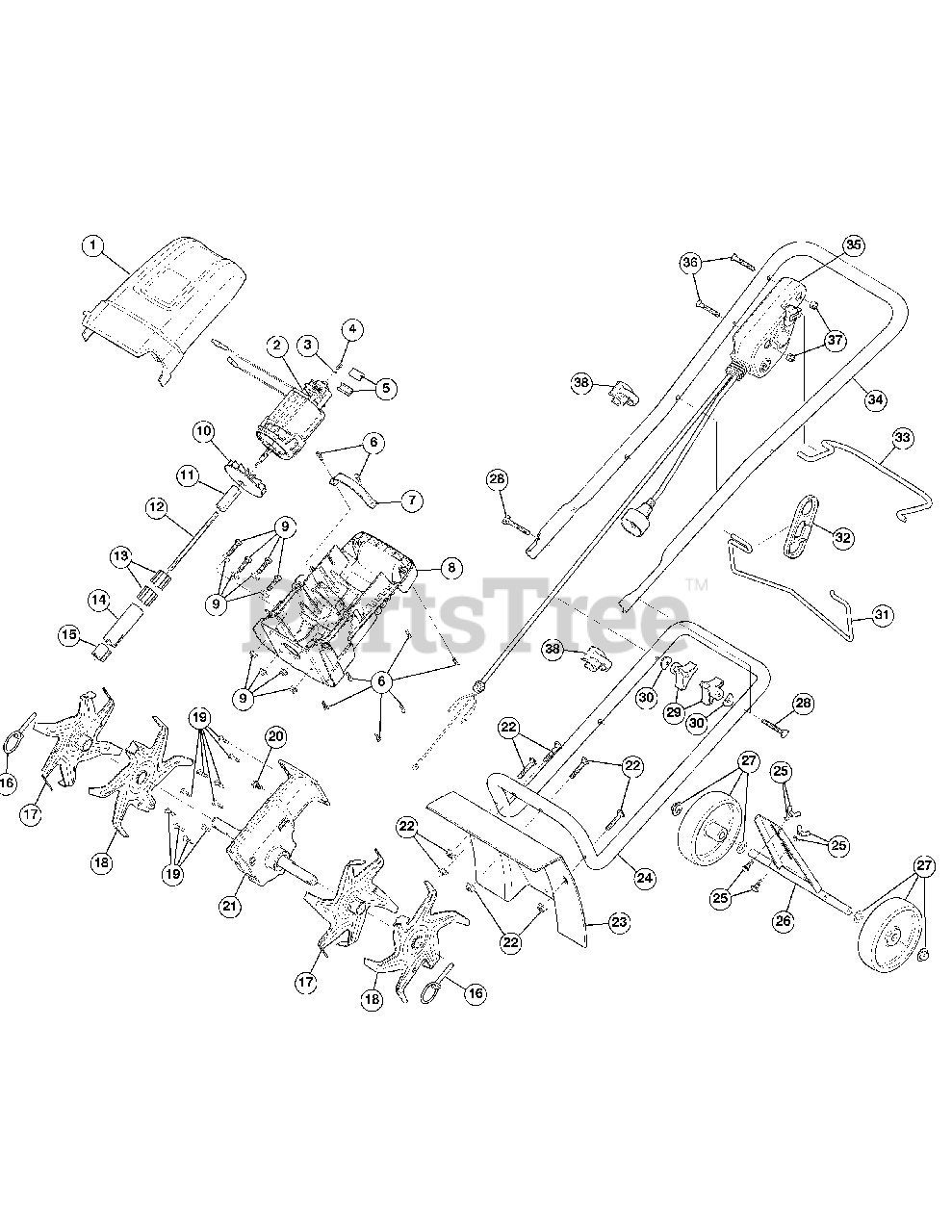

General Assembly Parts Diagram

  • Title

1

MTD 753-06380

Front Motor Cover

$15.99

$

Usually ships in 3-6 days

0

2

MTD 924-04008

Motor Assembly

$

$

Not available

3

MTD 1625

Lock Washer

$3.49

$

Usually ships in 3-6 days

0

4

MTD 791-145569

Screw

$10.99

$

In Stock, Qty 7

0

5

MTD 50545

Motor Pad

$

$

Not available

6

MTD 710-04508

Screw

$4.49

$

In Stock, only 1 left!

0

7

MTD 753-06382

Motor Strap

$2.49

$

Usually ships in 3-6 days

0

8

MTD 753-06379

Rear Motor Cover

$

$

Not available

9

MTD 753-06373

Guard Mounting Hardware

$

$

Not available

10

MTD 791-180155

Fan

$21.99

$

Usually ships in 3-6 days

0

11

MTD 753-06381

Motor Hub

$4.99

$

Usually ships in 3-6 days

0

12

MTD 753-06383

Flex Shaft

$5.49

$

Usually ships in 3-6 days

0

13

MTD 753-06377

Flex Tube Assembly

$5.49

$

Usually ships in 3-6 days

0

14

MTD 753-06375

Boom Tube

$

$

Not available

15

MTD 753-04078

Sleeve

$11.99

$

Usually ships in 3-6 days

0

16

MTD 753-05985

Click Pin

$6.49

$

Usually ships in 3-6 days

0

17

MTD 753-05983

Tine Assembly

Note: (Left Inner or Right Outer)

$37.99

$

Usually ships in 3-6 days

0

18

MTD 753-05984

Tine Assembly

Note: (Left Outer or Right Inner)

$37.99

$

Usually ships in 3-6 days

0

19

MTD 791-182195

Screw

$7.49

$

In Stock, Qty 20+

0

20

MTD 710-0599

Sleeve Retainer Bolt

$4.49

$

In Stock, Qty 20+

0

21

MTD 753-06063

Gear Box Assembly

$141.99

$

In Stock, only 1 left!

0

22

MTD 791-182681

Handle Bar Mounting Hardware (Lower)

$

$

Not available

23

MTD 753-06374

Guard

$

$

Not available

24

MTD 753-06372

Lower Handle Bar

$21.99

$

Usually ships in 3-6 days

0

25

MTD 791-182684

Wheel Bracket Mounting Hardware

$

$

Not available

26

MTD 753-05024

Wheel Bracket Assembly

$

$

Not available

27

MTD 753-04437

Wheel Assembly

$23.99

$

Usually ships in 3-6 days

0

28

MTD 791-182899

Bolt

$8.49

$

Usually ships in 3-6 days

0

29

MTD 791-182677

Knob

$15.99

$

In Stock, only 2 left!

0

30

MTD 936-0451

Washer
(Superseded to 736-0451)

$4.99

$

In Stock, Qty 16

0

31

MTD 747-04133

Guide Bar

$

$

Not available

32

MTD 726-0368-0637

Cord Restraint
(Superseded to 726-0368)

$8.49

$

Usually ships in 3-6 days

0

33

MTD 747-05713

Bail

$

$

Not available

34

MTD 753-06371

Upper Handle Bar

$32.99

$

Usually ships in 3-6 days

0

35

MTD 625-04027AS

Switch Assembly

$253.99

$

Usually ships in 3-6 days

0

36

MTD 753-04430

Screw

$4.49

$

Usually ships in 3-6 days

0

37

MTD 912-0442

Nut
(Superseded to 712-0442)

$

$

Not available

38

MTD 731-1820

Cable Guide

$9.49

$

Usually ships in 3-6 days

0
