RM 2 BL (41AS2HBC983) - Remington Blower General Assembly Parts Diagram

Blower

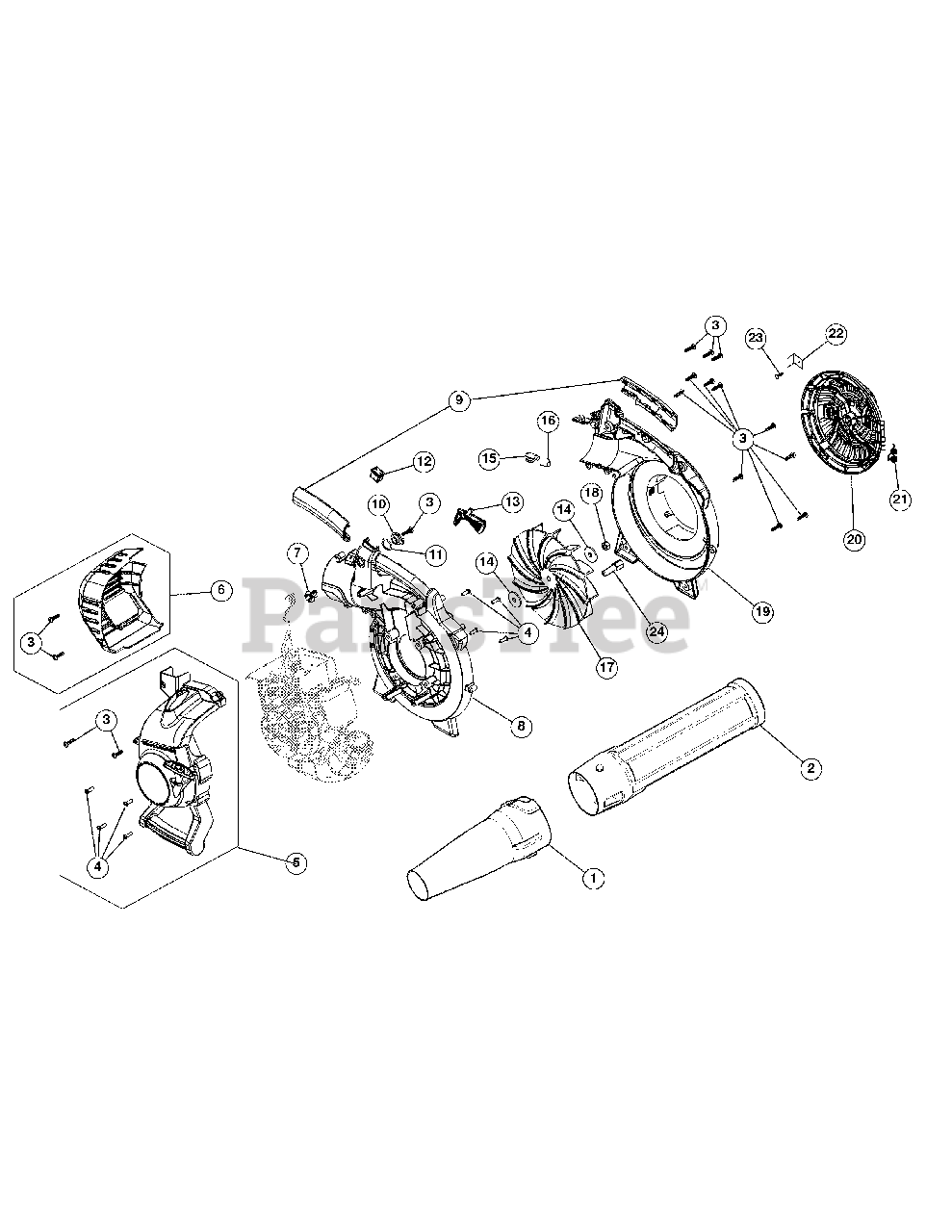

General Assembly Parts Diagram

  • Title

1

MTD 753-06000

Nozzle

$12.99

$

In Stock, Qty 7

0

2

MTD 753-05936

Upper Blower Tube

$17.99

$

In Stock, only 1 left!

0

3

MTD 710-04194

Screw

$3.99

$

In Stock, Qty 20+

0

4

MTD 791-181862

Screw

$4.49

$

In Stock, Qty 20+

0

5

MTD 753-08298

Engine Cover Assembly (Incl. 3 & 4)

$27.99

$

Usually ships in 3-6 days

0

6

MTD 753-06694

Muffler Cover Assembly (Incl. 3)

$3.49

$

Usually ships in 3-6 days

0

7

MTD 753-05932

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

8

MTD 753-06693

Impeller Housing

$16.99

$

Usually ships in 3-6 days

0

9

MTD 753-05919

Handle Grips

$5.99

$

Usually ships in 3-6 days

0

10

MTD 753-05924

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

11

MTD 753-05925

Wavey Washer
(Superseded to 736-04353)

$5.99

$

Usually ships in 3-6 days

0

12

MTD 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

13

MTD 753-05930

Throttle Trigger

$

$

Not available

14

MTD 753-05928

Washer

$2.99

$

In Stock, only 3 left!

0

15

MTD 753-05926

Latch Tube

$2.99

$

In Stock, only 1 left!

0

16

MTD 753-05939

Latch Spring

$2.99

$

In Stock, only 1 left!

0

17

MTD 753-05929

Impeller

$12.99

$

In Stock, only 3 left!

0

18

MTD 912-0237

Nut
(Superseded to 712-0237)

$

$

Not available

19

MTD 753-06679

Impeller Housing

$19.99

$

In Stock, only 4 left!

0

20

MTD 753-06699

Intake Cover

$3.99

$

Usually ships in 3-6 days

0

21

MTD 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

22

MTD 753-06696

Door Lock

$2.99

$

Usually ships in 3-6 days

0

23

MTD 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

24

MTD 753-06700

Adapter

$5.49

$

In Stock, Qty 8

0
