RM 25 PS (41AD25PA983) - Remington Pole Saw Engine Assembly Parts Diagram

Pole Saw

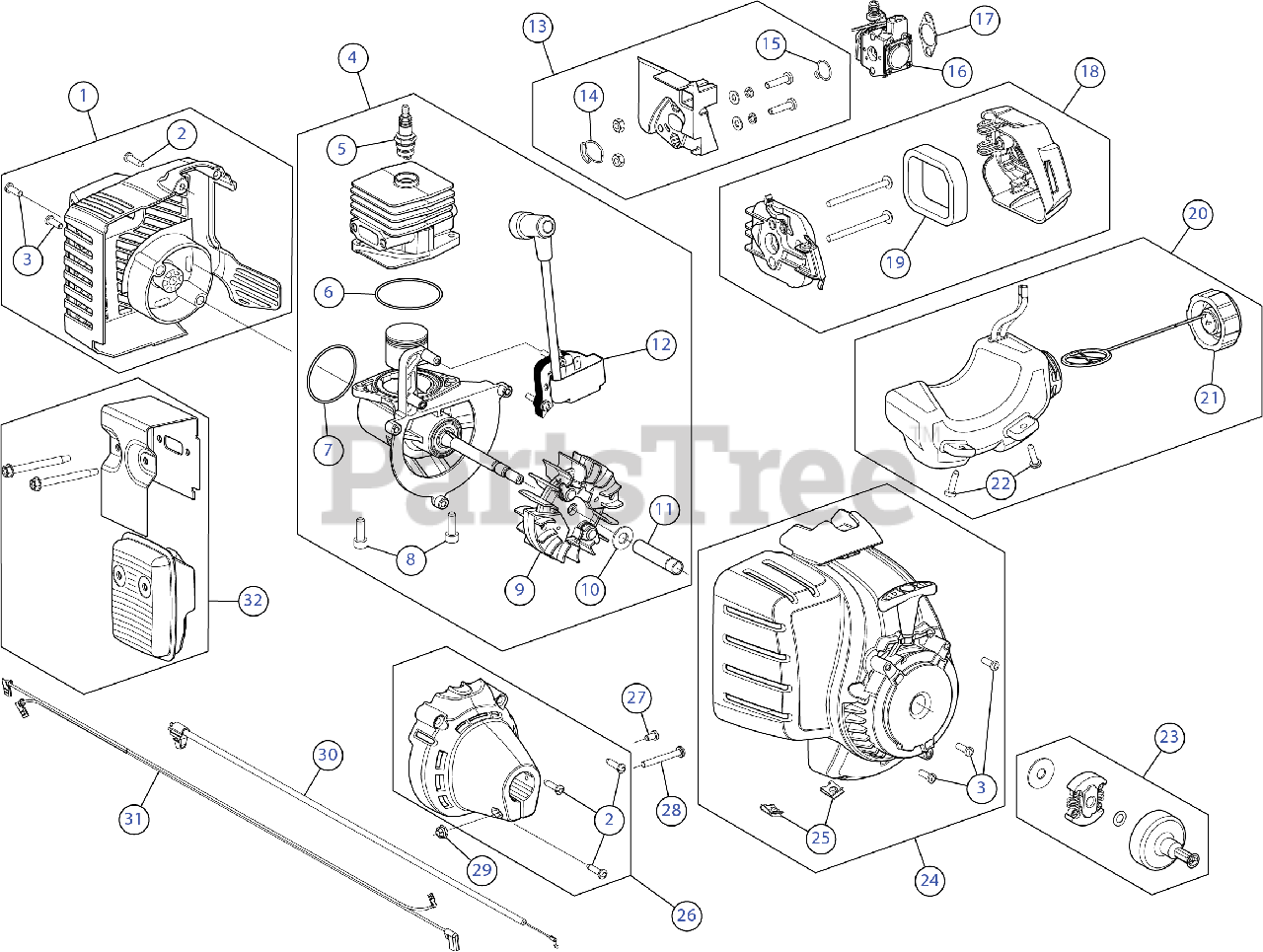

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06919

ENGINE COVER RR

Note: (Incl. 2 & 3)

$4.49

$

In Stock, Qty 20+

0

2

MTD 791-181345

SCREW, #8-16X.750 PH

$3.99

$

In Stock, Qty 17

0

3

MTD 791-181862

SCREW:10-32X.562:#8P

$4.49

$

In Stock, Qty 20+

0

4

MTD 753-08167

SHORT BLOCK

Note: (Incl. 5 - 12)

$83.99

$

In Stock, only 1 left!

0

5

MTD 753-06847

SPARK PLUG

$2.99

$

In Stock, Qty 20+

0

6

MTD 753-06275

O-RING

$2.99

$

In Stock, Qty 20+

0

7

MTD 753-06174

O-RING

$2.99

$

In Stock, Qty 20+

0

8

MTD 791-182723

SCREW, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 753-06175

FLYWHEEL ASSEMBLY

$17.99

$

In Stock, Qty 7

0

10

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 5

0

11

MTD 753-06218

SPACER

$2.99

$

In Stock, only 1 left!

0

12

MTD 753-06826

MODULE DIG 8500

$31.99

$

In Stock, only 1 left!

0

13

MTD 753-06189

INTAKE ASSEMBLY

Note: (Incl. 14 & 15)

$7.49

$

In Stock, Qty 20+

0

14

MTD 753-06184

O-RING

$3.49

$

In Stock, Qty 20+

0

15

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

16

MTD 753-06190

CARBURETOR

$32.99

$

In Stock, Qty 20+

0

17

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

18

MTD 753-06415

AIRCLEANER COVER ASSEMBLY

Note: (Incl. 19)

$10.99

$

In Stock, Qty 16

0

19

MTD 753-06417

AIR FLITER

$2.99

$

In Stock, Qty 20+

0

20

MTD 753-06183

FUEL TANK ASSEMBLY

Note: (Incl. 21 & 22)

$12.99

$

In Stock, Qty 20+

0

21

MTD 791-182612

FUEL CAP ASSEMBLY

$18.99

$

In Stock, Qty 17

0

22

MTD 791-181930

SCREW:10-6 x .75

$6.49

$

In Stock, Qty 9

0

23

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$23.99

$

In Stock, Qty 20+

0

24

MTD 753-06943

STARTER HOUSING REM

Note: (Incl. 3 & 25)

$25.99

$

In Stock, only 1 left!

0

25

MTD 791-182366

NUT, TINNERMAN U-T

$5.49

$

In Stock, only 2 left!

0

26

MTD 753-06181

CLUTCH COVER

Note: (Incl. 2)

$3.99

$

In Stock, Qty 6

0

27

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, Qty 20+

0

28

MTD 753-04003

SCREW
(Superseded to 9689A)

$10.99

$

Usually ships in 3-6 days

0

29

MTD 712-0161

HEX NUT

$4.49

$

In Stock, Qty 9

0

30

MTD 746-05231

THROTTLE CABLE

$4.49

$

In Stock, Qty 9

0

31

MTD 753-06583

LEAD WIRES

$3.49

$

Usually ships in 3-6 days

0

32

MTD 753-06418

MUFFLER ASSEMBLY
(Superseded to 753-08745)

$24.99

$

In Stock, only 3 left!

0
