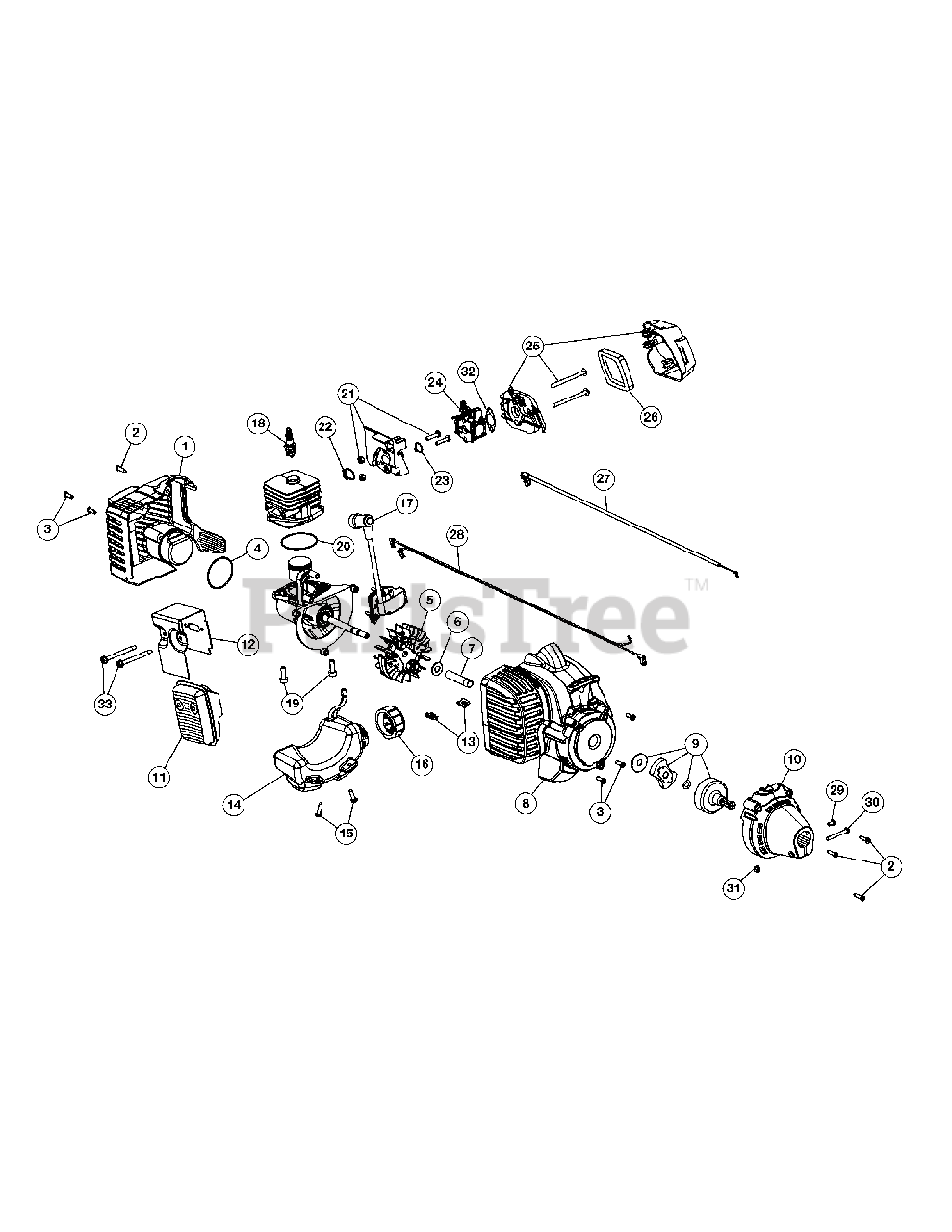

RM 2560 (41AD160G983) - Remington String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title
1

MTD 753-06194

Rear Cover Assembly (Incl. 2 & 3)

$8.49

$

In Stock, only 4 left!

0

2

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

3

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

4

MTD 753-06174

O-Ring

$2.99

$

In Stock, Qty 14

0

5

MTD 753-06175

Flywheel Assembly

$19.99

$

In Stock, only 2 left!

0

6

MTD 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

7

MTD 753-06218

Spacer

$2.99

$

In Stock, only 1 left!

0

8

MTD 753-06928

Starter Housing (Incl. 3 & 13)

$23.99

$

Usually ships in 3-6 days

0

9

MTD 753-06180

Clutch Assembly

$20.99

$

In Stock, Qty 7

0

10

MTD 753-06181

Clutch Cover (Incl. 2)

$3.99

$

Usually ships in 3-6 days

0

11

MTD 753-06418

Muffler Assembly (Incl. 12 & 33)
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0

12

MTD 753-06419

Muffler Gasket

$5.99

$

Usually ships in 3-6 days

0

13

MTD 791-182366

U-shaped Nut

$5.99

$

In Stock, only 1 left!

0

14

MTD 753-06183

Fuel Tank Assembly (Incl. 15 & 16)

$13.99

$

In Stock, only 4 left!

0

15

MTD 791-181930

Tank Screw

$6.99

$

In Stock, only 1 left!

0

16

MTD 753-06857

Fuel Cap

$7.99

$

In Stock, Qty 5

0

17

MTD 753-06420

Module Assembly

$28.99

$

In Stock, only 3 left!

0

18

MTD 753-06847

Spark Plug

$7.49

$

In Stock, Qty 20+

0

19

MTD 791-182723

Crankcase Bolt

$4.49

$

In Stock, Qty 13

0

20

MTD 753-06275

Crankcase O-Ring

$2.99

$

In Stock, Qty 13

0

21

MTD 753-06189

Insulator Assembly (Incl. 22 & 23)

$7.99

$

In Stock, only 1 left!

0

22

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, only 1 left!

0

23

MTD 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 8

0

24

MTD 753-06190

Carburetor

$35.99

$

In Stock, Qty 5

0

25

MTD 753-06415

Air Cleaner Cover Assembly (Incl. 26)

$10.99

$

In Stock, only 3 left!

0

26

MTD 753-06417

Air Cleaner Filter

$2.99

$

In Stock, Qty 20+

0

27

MTD 753-06188

Throttle Cable

$7.99

$

In Stock, Qty 6

0

28

MTD 753-06187

Lead Wires

$

$

Not available

29

MTD 791-182519

Anti-rotation Screw

$4.99

$

Usually ships in 3-6 days

0

30

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, only 1 left!

0

31

MTD 712-0161

Clamp Nut

$4.49

$

In Stock, only 1 left!

0

32

MTD 753-06253

Air Cleaner Gasket

$3.49

$

In Stock, Qty 20+

0

33

MTD 753-06294

Muffler Screw

$2.99

$

Usually ships in 3-6 days

0

MTD 753-06929

Short Block Assembly

Note: Not shown (Incl. Crankcase, Cylinder,Piston, 4 - 7 & 17 - 20)

$

$

Not available
