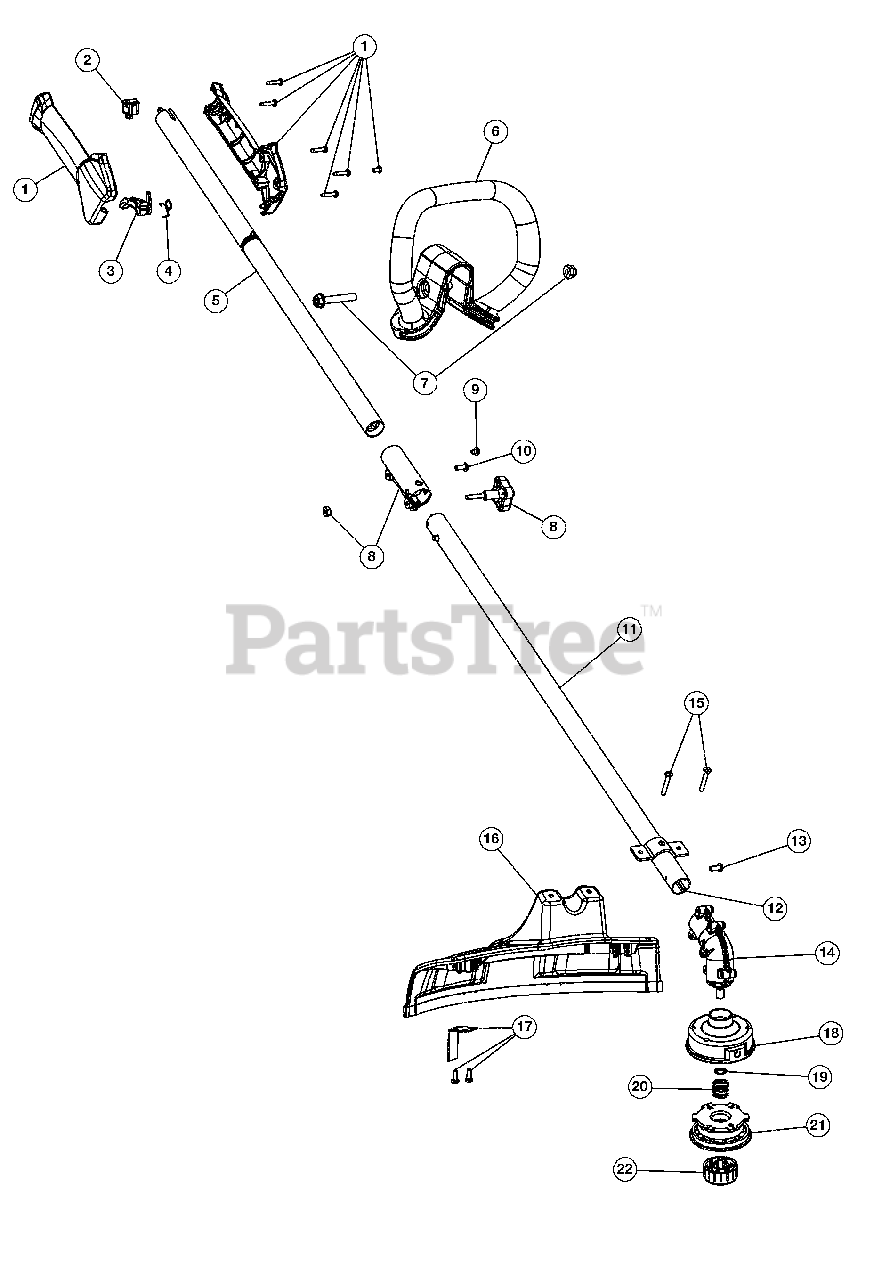

RM 2570 (41BDZ22C983) - Remington String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2-4)

$19.99

$

In Stock, Qty 18

0

2

MTD 753-04119

Throttle Trigger

$6.99

$

In Stock, Qty 20+

0

3

MTD 791-182690

Throttle Trigger Spring

$7.49

$

In Stock, Qty 15

0

4

MTD 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

5

MTD 753-04344

Upper Drive Shaft Housing Assembly

$79.99

$

In Stock, Qty 8

0

6

MTD 753-08042

D-Handle (Incl. 7)

$4.99

$

In Stock, Qty 5

0

7

MTD 753-06040

D-Handle Bolt

$6.49

$

In Stock, Qty 8

0

8

MTD 753-06944

Split Boom Coupler (Incl. 9-10)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 791-182057

Screw

$4.49

$

In Stock, Qty 14

0

10

MTD 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

11

MTD 753-06881

Lower Drive Shaft Housing Assembly
(Superseded to 753-08356)

$22.99

$

In Stock, only 3 left!

0

12

MTD 753-05267

Lower Flexible Drive Shaft

$39.99

$

In Stock, Qty 8

0

13

MTD 7039

Anti-Rotation Screw

$4.49

$

In Stock, Qty 9

0

14

MTD 753-06571

Gear Box Assembly (Incl. 13 & 18-22)

$42.99

$

In Stock, Qty 18

0

15

MTD 753-06125

Shield Mounting Screws

$6.49

$

In Stock, Qty 8

0

16

MTD 753-06123

Shield Assembly (Incl. 15 & 17)

$19.99

$

In Stock, Qty 16

0

17

MTD 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 6

0

18

MTD 753-04284

Outer Spool Assembly

$26.99

$

In Stock, Qty 20+

0

19

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

20

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 20+

0

21

MTD 753-1155

Inner Reel

$21.99

$

In Stock, Qty 20+

0

22

MTD 791-153066B

Bump Knob Assembly

$13.99

$

In Stock, Qty 20+

0

MTD 953-1156

Reel & Line Assembly

Note: (Not shown) (Optional)

$31.99

$

In Stock, Qty 7

0
