RM-303 E - Echo Backpack String Trimmer Driveshaft, Handles, Throttle, Gear Case, Shield, Harness Parts Diagram

Backpack String Trimmer

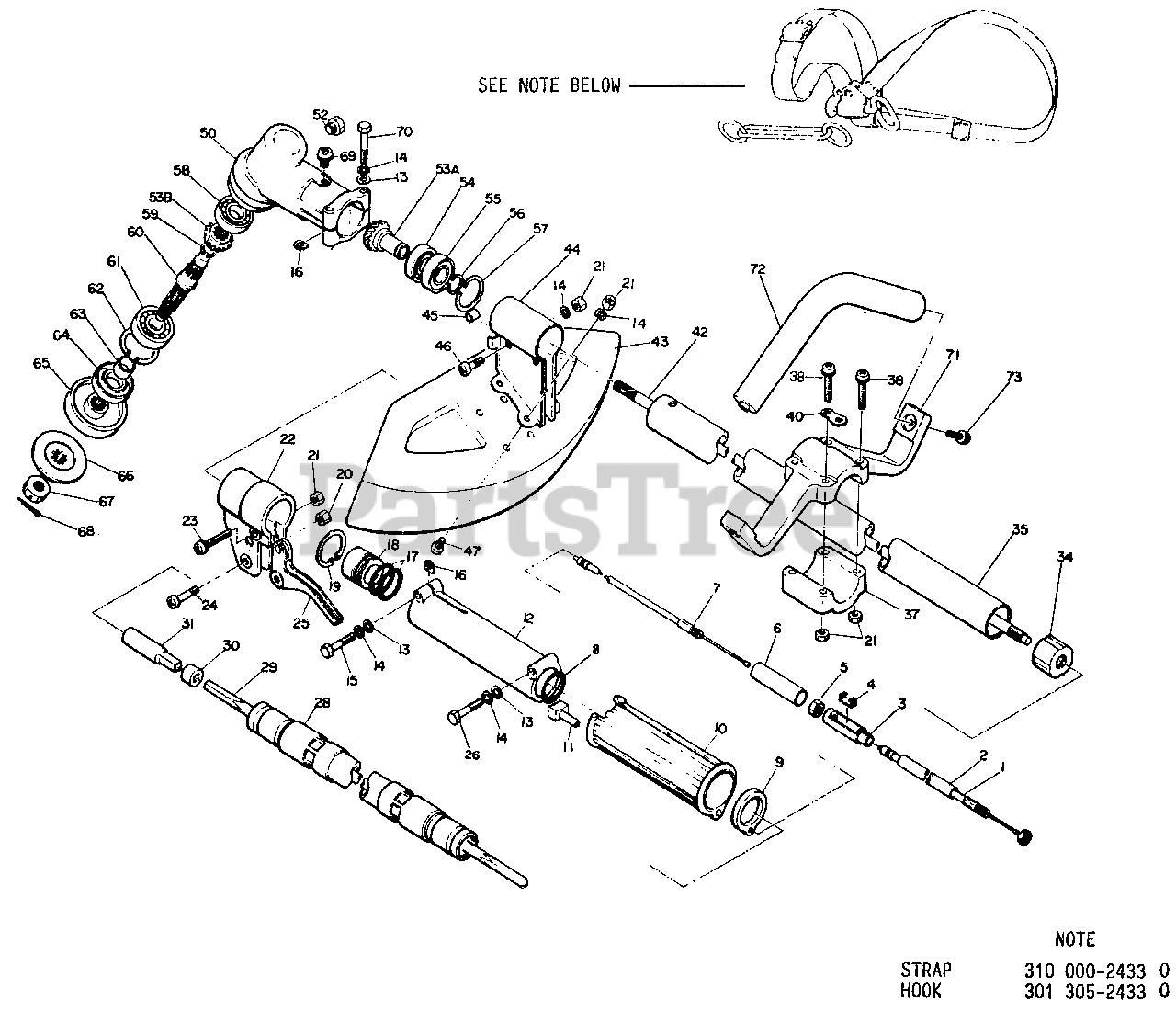

Driveshaft, Handles, Throttle, Gear Case, Shield, Harness Parts Diagram

  • Title

1

Echo 17800407130

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 17801607130

SLEEVE
(Superseded to Discontinued)

$

$

Not available

3

Echo 17811405630

CONNECTOR

$4.99

$

In Stock, only 2 left!

0

4

Echo 17804905630

CONNECTOR
(Superseded to 17804906630)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 178021-05530

NUT

$3.49

$

Usually ships in 2-4 days

0

6

Echo 17812805630

SLEEVE, JOINT RETAINER

$

$

Not available

7

Echo 17800207130

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

8

Echo 90072000018

O-RING 18

$2.49

$

In Stock, only 1 left!

0

9

Echo 17811207130

GUIDE

$1.49

$

Usually ships in 2-4 days

0

10

Echo 61024907131

GRIP
(Superseded to Discontinued)

$

$

Not available

11

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

12

Echo 61024807133

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

13

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

15

Echo 90010005025

BOLT - 5×25

$3.49

$

Usually ships in 2-4 days

0

16

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

17

Echo 90072000022

O-RING 22

$2.49

$

Usually ships in 2-4 days

0

18

Echo 61010504130

STOPPER
(Superseded to Discontinued)

$

$

Not available

19

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

20

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

21

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

22

Echo 17800305630

BRACKET, TRIGGER
(Superseded to 17802406830)

$

$

Not available

23

Echo 90024005028

SCREW 5×28

$0.99

$

In Stock, Qty 9

0

24

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

25

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.99

$

In Stock, Qty 5

0

26

Echo 61025707130

BOLT

$

$

Currently unavailable

28

Echo 61020907130

LINER, FLEXIBLE
(Superseded to 61020907131)

$

$

Not available

29

Echo 61001307130

DRIVESHAFT - FLEXIBLE
(Superseded to Discontinued)

$

$

Not available

30

Echo 61002007130

SPACER
(Superseded to Discontinued)

$

$

Not available

31

Echo 61002507130

CONNECTOR
(Superseded to Discontinued)

$

$

Not available

35

Echo 61060907130

MAIN PIPE ASSY

Note: Includes ITEM 34

$

$

Currently unavailable

34

Echo 61011007130

BUSHING
(Superseded to Discontinued)

$

$

Not available

37

Echo 35122506930

BRACKET, HANDLE

$7.49

$

In Stock, only 2 left!

0

38

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

40

Echo 30051507130

HANGER
(Superseded to Discontinued)

$

$

Not available

41

Echo 30050021530

HARNESS ASSY

$

$

Currently unavailable

42

Echo 61001107130

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

Echo 69900005331

SAFETY GUARD ASSY
(Superseded to 69900040430)

Note: Consists of items 14, 21, & 43 thru 47

$

$

Not available

14

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

21

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

43

Echo 49901005330

GUARD

$

$

Currently unavailable

44

Echo 69901105331

BRACKET
(Superseded to 69900240430)

$

$

Not available

45

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

46

Echo 90022005018

SCREW 5×18

$0.99

$

Usually ships in 2-4 days

0

47

Echo 40022005008

SCREW - 5×8

$

$

Currently unavailable

Echo 61040007131

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Consists of items 13, 14, 16, 50 thru 71 and 171

$

$

Not available

13

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo 40060500005

LOCKWASHER - 3

$

$

Currently unavailable

16

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

50

Echo 61041005332

HOUSING, GEAR CASE

$71.99

$

In Stock, only 1 left!

0

52

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

53

Echo 61030007130

GEAR SET
(Superseded to Discontinued)

Note: Consists of items 53A & 53B

$

$

Not available

53A

Echo 61030007130

GEAR SET
(Superseded to Discontinued)

Note: See Ref No. 53, Gear set, P/N 61030007130

$

$

Not available

53B

Echo 61030007130

GEAR SET
(Superseded to Discontinued)

Note: See Ref No. 53, Gear set, P\N 61030007130

$

$

Not available

54

Echo 40080006001

BEARING, BALL 6001

$

$

Currently unavailable

55

Echo 40080106001

BEARING, BALL 6001

$

$

Currently unavailable

56

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

57

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

58

Echo 90080036000

BEARING, BALL 6000

$14.99

$

Usually ships in 2-4 days

0

59

Echo 61033507130

RING, RETAINING - 12
(Superseded to 90070600012)

$1.49

$

In Stock, Qty 20+

0

60

Echo 61031007130

SHAFT, GEAR

$109.99

$

Usually ships in 2-4 days

0

61

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

62

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

63

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

64

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

65

Echo 41031307130

PLATE, ADAPTER - UPPER

$

$

Currently unavailable

66

Echo 61031407130

PLATE, ADAPTER - LOWER

$12.99

$

Usually ships in 2-4 days

0

67

Echo 40051100010

NUT - 10 -- LEFT HAND

$

$

Currently unavailable

68

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

69

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

70

Echo 90010005030

BOLT 5×30

$0.99

$

Usually ships in 2-4 days

0

71

Echo 35123207130

BRACKET, HANDLE

$26.99

$

Usually ships in 2-4 days

0

72

Echo 35120507130

HANDLE
(Superseded to 35120507131)

$27.99

$

Usually ships in 2-4 days

0

73

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

31000024330

Echo 31000024330

STRAP (OBSOLETE)

$

$

Currently unavailable

30130524330

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0
