RM-303 E - Echo Backpack String Trimmer Engine, Crankcase, Ignition Parts Diagram

Backpack String Trimmer

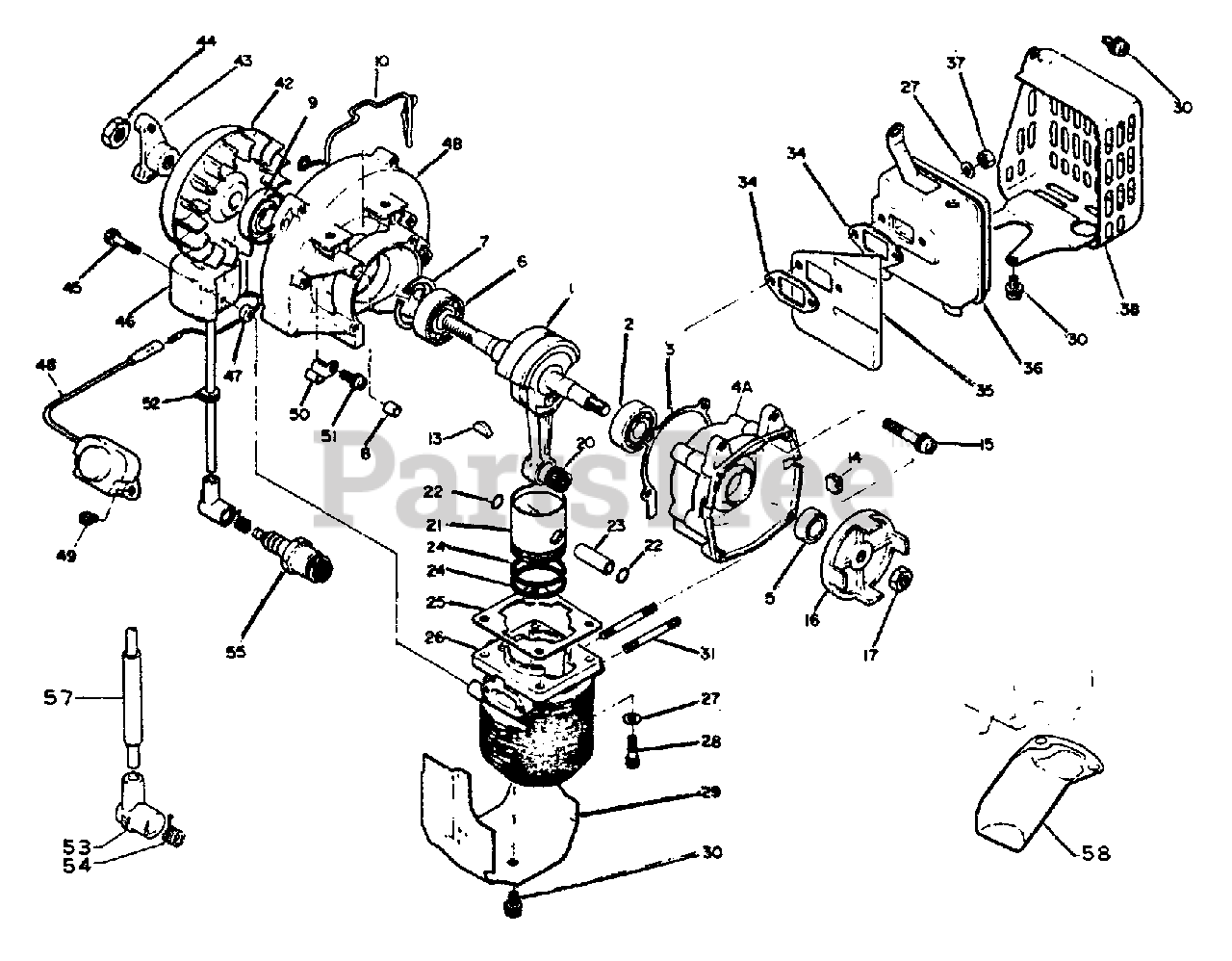

Engine, Crankcase, Ignition Parts Diagram

  • Title

1

Echo 10010005731

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

3

Echo 10024205730

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

Echo 10020007131

CRANKCASE KIT
(Superseded to 10020007132)

Note: Consists of 4A, 4B & 8

$

$

Not available

8

Echo 100215-05730

PIN, DOWEL
(Superseded to Discontinued)

$

$

Not available

5

Echo 10021305730

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

6

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

7

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

9

Echo 10021205730

SEAL, OIL

$6.49

$

Usually ships in 2-4 days

0

10

Echo 10026807130

BUMPER
(Superseded to Discontinued)

$

$

Not available

13

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

14

Echo 10022305530

PLUG
(Superseded to Discontinued)

$

$

Not available

15

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

16

Echo 17721005530

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

17

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

20

Echo 100012-12330

BEARING, NEEDLE
(Superseded to 10001212331)

$13.99

$

In Stock, only 2 left!

0

21

Echo 10001005731

PISTON
(Superseded to 10000005730)

$74.99

$

In Stock, only 1 left!

0

22

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

23

Echo 10001305731

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

24

Echo 10001105731

RING, PISTON

$8.99

$

In Stock, only 1 left!

0

25

Echo 10101005730

GASKET, CYLINDER
(Superseded to Discontinued)

$

$

Not available

26

Echo 10101105830

CYLINDER
(Superseded to Discontinued)

$

$

Not available

27

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

28

Echo 90010505020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

29

Echo 10151407130

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

30

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

31

Echo 10101407130

STUD
(Superseded to 10101407131)

$1.99

$

Usually ships in 2-4 days

0

34

Echo 14551005730

GASKET, EXHAUST
(Superseded to 14551005731)

$2.49

$

Usually ships in 2-4 days

0

35

Echo 14566707130

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

36

Echo 14561007130

MUFFLER
(Superseded to Discontinued)

$

$

Not available

37

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

38

Echo 14562107130

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

42

Echo 15280105730

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

43

Echo 17501605730

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

44

Echo 90050300010

NUT 10×1.25

$1.49

$

Usually ships in 2-4 days

0

45

Echo 90024105022

SCREW 5×22
(Superseded to Discontinued)

$

$

Not available

46

Echo 15262605730

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

47

Echo 15211705530

SPACER
(Superseded to 15011716430)

$3.49

$

In Stock, Qty 5

0

48

Echo 15260107132

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

49

Echo 90024145006

SCREW - 5×6

$

$

Currently unavailable

50

Echo 15911305830

CLIP
(Superseded to Discontinued)

$

$

Not available

51

Echo 900242-05012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

52

Echo 15211205730

GROMMET

$0.99

$

Usually ships in 2-4 days

0

53

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 20+

0

54

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

55

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

57

Echo 15211107130

PIPE
(Superseded to Discontinued)

$

$

Not available
