RM 3100 (15A-3100783) - Remington Walk-Behind Reel Mower (2011) General Assembly Parts Diagram

Walk-Behind Reel Mower

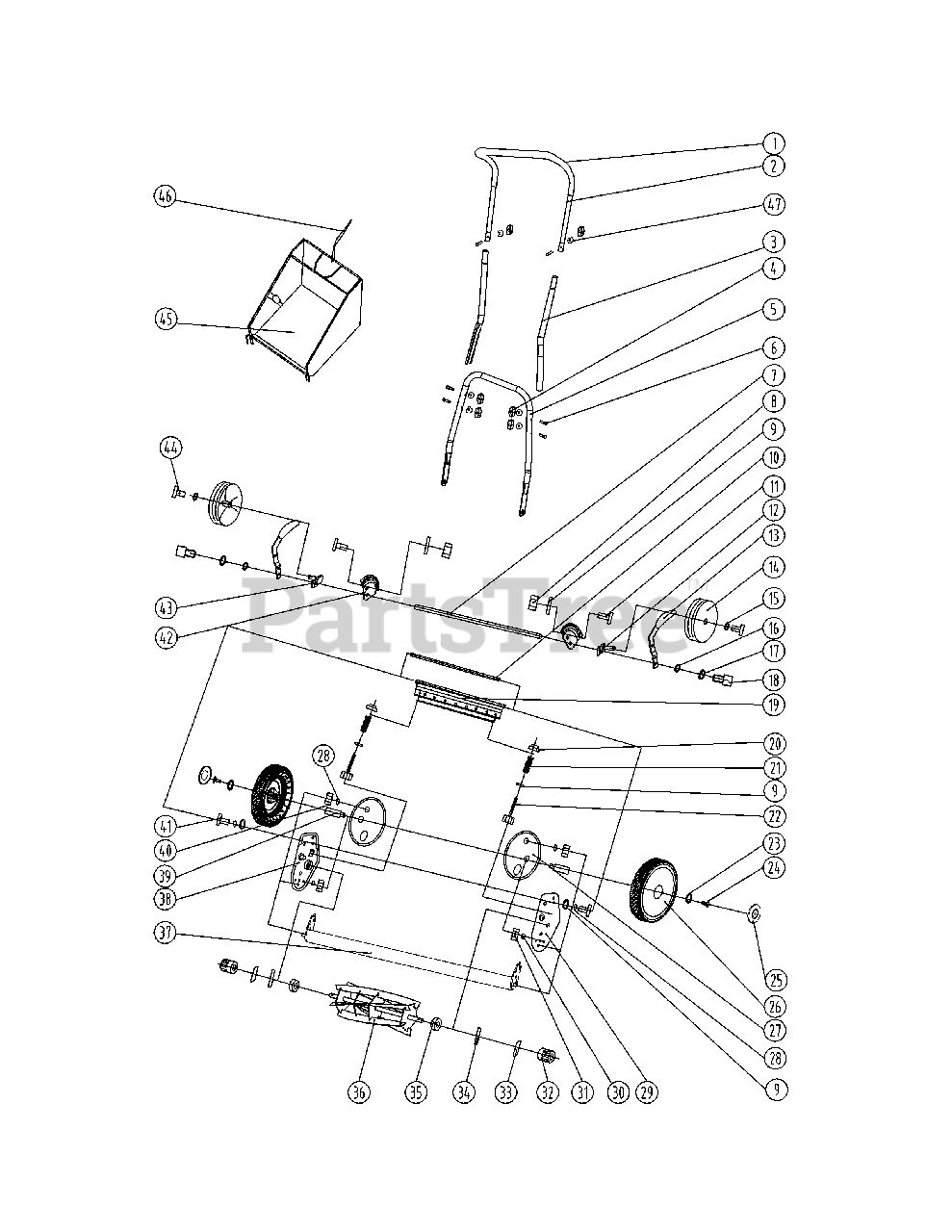

General Assembly Parts Diagram

  • Title

1

MTD 720-04167

Grip, Handle, 26 x 16 x 630

$10.99

$

Usually ships in 3-6 days

0

2

MTD 749-04811

Handle, Upper

$29.99

$

Usually ships in 3-6 days

0

3

MTD 749-04812

Handle, Middle

$19.99

$

In Stock, only 2 left!

0

4

MTD 720-04169

Knob, Orange

$4.99

$

Usually ships in 3-6 days

0

5

MTD 749-04813

Handle, Lower

Note: (Model 3000)

$31.99

$

Usually ships in 3-6 days

0

5

MTD 749-04814

Handle, Lower

Note: (Model 3100)

$32.99

$

Usually ships in 3-6 days

0

6

MTD 710-05321

Bolt, M6 x 35gb/T12

$4.49

$

Usually ships in 3-6 days

0

7

MTD 711-05531

Shaft, Rear, Black

Note: (Model 3000)

$27.99

$

Usually ships in 3-6 days

0

7

MTD 711-05533

Shaft, Rear, Black

Note: (Model 3100)

$28.99

$

Usually ships in 3-6 days

0

8

MTD 712-04292

Nut, M8, Gb/T6172.2

$3.99

$

Usually ships in 3-6 days

0

9

MTD 736-04563

Washer, 17 x 8.2 x 1.2

$4.49

$

Usually ships in 3-6 days

0

10

MTD 711-05534

Pin,

Note: (Model 3000)

$31.99

$

Usually ships in 3-6 days

0

10

MTD 711-05535

Pin,

Note: (Model 3100)

$27.99

$

Usually ships in 3-6 days

0

11

MTD 710-05322

Screw, M8-16gbt70.2

$4.49

$

Usually ships in 3-6 days

0

12

MTD 787-01986

Bracket, Rear, LH, Black

$20.99

$

Usually ships in 3-6 days

0

13

MTD 787-01961

Handle, Adjustment, Orange
(Superseded to 987-01961)

$

$

Not available

14

MTD 734-04605

Wheel, Rear

$26.99

$

Usually ships in 3-6 days

0

15

MTD 736-04564

Washer, 17 x 8.2 x 1.2

$4.49

$

Usually ships in 3-6 days

0

16

MTD 736-04565

Washer, Gb/T955

$3.99

$

Usually ships in 3-6 days

0

17

MTD 736-04566

Washer, 20 x 13 x 1

$3.99

$

Usually ships in 3-6 days

0

18

MTD 710-05323

Bolt, M8 x 24

$3.99

$

Usually ships in 3-6 days

0

19

MTD 787-01965

Bracket, Lower Blade, Black

Note: (Model 3000)

$65.99

$

Usually ships in 3-6 days

0

19

MTD 787-01967

Bracket, Lower Blade, Black

Note: (Model 3100)

$

$

Not available

20

MTD 712-04293

Nut, M8 x 1

$4.99

$

Usually ships in 3-6 days

0

21

MTD 732-04854

Spacer, 65mm, 17 x 4 x 48

$4.49

$

Usually ships in 3-6 days

0

22

MTD 710-05324

Bolt, M8 x 1 x 65

$4.49

$

Usually ships in 3-6 days

0

23

MTD 736-04567

Washer, 25 x 6.5 x 1.5

$3.99

$

Usually ships in 3-6 days

0

24

MTD 710-05325

Bolt, M6x20, Gb/T5780

$4.49

$

Usually ships in 3-6 days

0

25

MTD 731-08254

Hub Cap

$10.99

$

Usually ships in 3-6 days

0

26

MTD 734-04607

Wheel, Complete

$46.99

$

Usually ships in 3-6 days

0

27

MTD 787-01969

Bracket, Black

$

$

Not available

28

MTD 736-04568

Washer, Spacer, Gb/T7244

$3.99

$

Usually ships in 3-6 days

0

29

MTD 787-01973

Bracket, Support, LH, Black

$39.99

$

Usually ships in 3-6 days

0

30

MTD 736-04569

Washer, 20x10.2x1.4

$3.99

$

Usually ships in 3-6 days

0

31

MTD 712-04294

Nut, M10, Gb/T6172.2

$3.99

$

Usually ships in 3-6 days

0

32

MTD 717-04917

Gear, 41mm, Pa66
(Superseded to 917-04917)

$10.99

$

In Stock, only 1 left!

0

33

MTD 787-01976

Support, 19 x 10 x 5

$4.99

$

In Stock, only 2 left!

0

34

MTD 736-04570

Washer, 34 x 15.5 x 1

$3.99

$

Usually ships in 3-6 days

0

35

MTD 741-04514

Bearing, 6002z

$6.49

$

Usually ships in 3-6 days

0

36

MTD 742-04362

Blade, Roller
(Superseded to 942-04362)

Note: (Model 3000)

$119.99

$

Usually ships in 3-6 days

0

36

MTD 742-04363

Blade, Roller
(Superseded to 942-04363)

Note: (Model 3100)

$

$

Not available

37

MTD 787-01978

Shield, Deflector

Note: (Model 3000)

$54.99

$

Usually ships in 3-6 days

0

37

MTD 787-01980

Shield, Deflector

Note: (Model 3100)

$

$

Not available

38

MTD 787-01982

Bracket, Support, RH, Black

$39.99

$

Usually ships in 3-6 days

0

39

MTD 711-05536

Axle, Wheel, 19x65.5

$9.49

$

Usually ships in 3-6 days

0

40

MTD 712-04295

Nut, M8, Gb/T6170

$3.99

$

Usually ships in 3-6 days

0

41

MTD 710-05326

Bolt, M8x16gb/T5781

$3.99

$

Usually ships in 3-6 days

0

42

MTD 787-01985

Bracket, Adjustment, 9 Tooth RH

$7.49

$

Usually ships in 3-6 days

0

42

MTD 787-01994

Bracket, Adjustment, 9 Tooth LH

$7.49

$

Usually ships in 3-6 days

0

43

MTD 787-01988

Bracket, Rear, RH, Black

$21.99

$

Usually ships in 3-6 days

0

44

MTD 710-05327

Bolt, M6x10 Gb/T5780

$4.49

$

Usually ships in 3-6 days

0

45

MTD 764-04133

Grass Bag

Note: (Model 3100)

$61.99

$

Usually ships in 3-6 days

0

46

MTD 727-04374

Strap, Grass Bag
(Superseded to 927-04374)

Note: (Model 3100)

$5.99

$

Usually ships in 3-6 days

0

47

MTD 736-04573

Saddle Washer

$4.49

$

In Stock, only 2 left!

0
