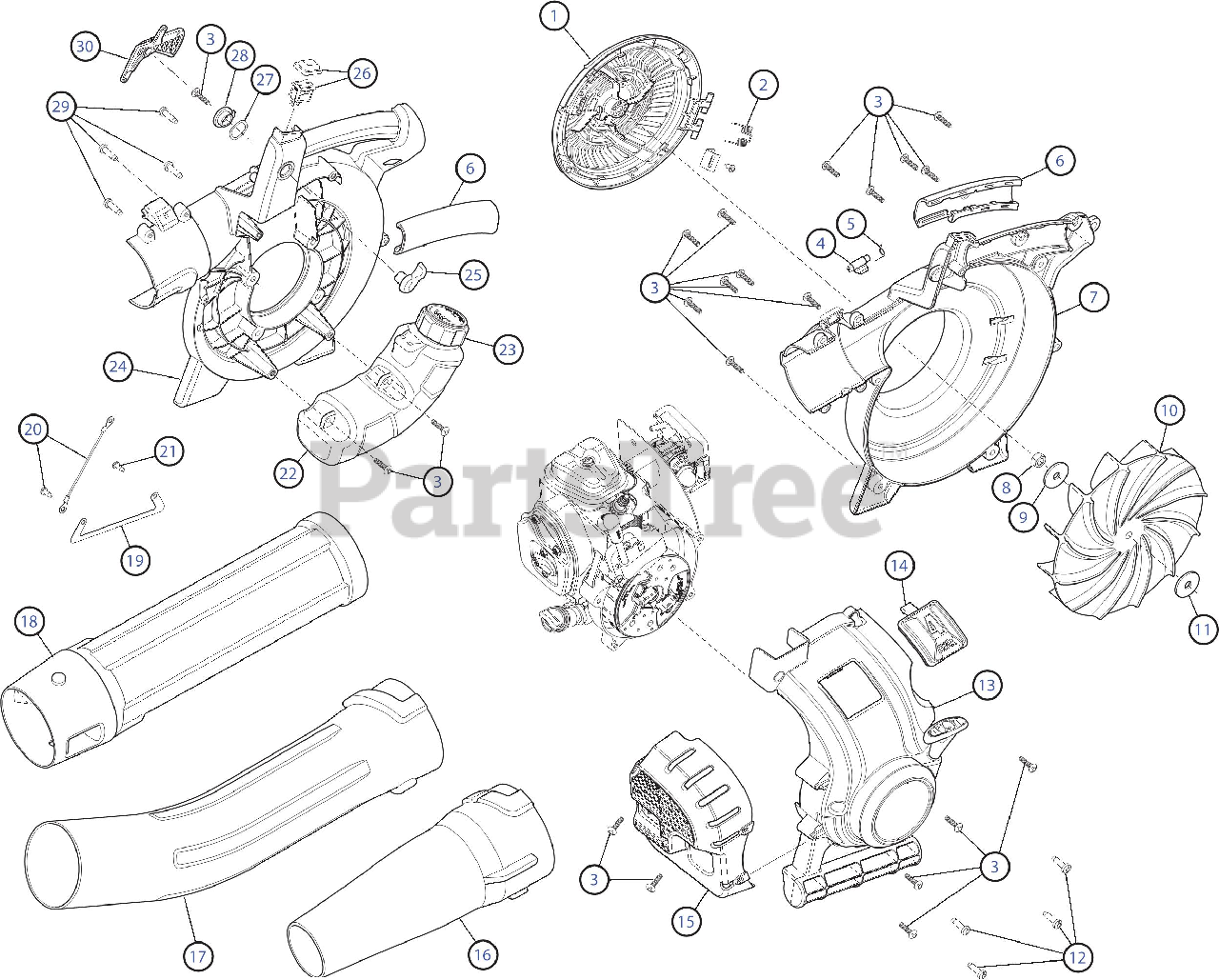

RM 4 HB (41BS4ESG983) - Remington Blower General Assembly Parts Diagram

Blower

General Assembly Parts Diagram

  • Title

1

MTD 753-06678

Intake Cover Assembly

$3.49

$

Usually ships in 3-6 days

0

2

MTD 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

3

MTD 710-04194

Screw

$3.99

$

In Stock, Qty 20+

0

4

MTD 753-05926

Latch Tube

$2.99

$

In Stock, only 1 left!

0

5

MTD 753-05939

Latch Spring

$2.99

$

In Stock, only 1 left!

0

6

MTD 753-05919

Handle Grips

$5.99

$

Usually ships in 3-6 days

0

7

MTD 753-06679

Impeller Housing

Note: (Incl. 6)

$19.99

$

In Stock, only 4 left!

0

8

MTD 912-0237

Nut
(Superseded to 712-0237)

$

$

Not available

9

MTD 753-06444

Washer

$2.99

$

In Stock, Qty 6

0

10

MTD 753-05929

Impeller

$12.99

$

In Stock, Qty 6

0

11

MTD 753-06806

Spacer

$3.49

$

In Stock, Qty 6

0

12

MTD 710-04604

Screw

$3.99

$

In Stock, Qty 17

0

13

MTD 753-08904

STARTER HOUSING

Note: (Incl. 3, 14 & 15)

$24.99

$

Usually ships in 3-6 days

0

14

MTD 753-05935

Spark Plug Cover

$2.99

$

In Stock, only 1 left!

0

15

MTD 753-05931

Muffler Cover

Note: (Incl. 3)

$5.99

$

Usually ships in 3-6 days

0

16

MTD 753-06000

Nozzle

$12.99

$

In Stock, Qty 7

0

17

MTD 731-06576B

CURVED LOWER TUBE

$9.49

$

In Stock, only 3 left!

0

18

MTD 753-05936

Upper Tube

$17.99

$

In Stock, only 1 left!

0

19

MTD 753-05965

Strap Ground

$2.99

$

Usually ships in 3-6 days

0

20

MTD 753-05964

Wire Ground

$2.99

$

Usually ships in 3-6 days

0

21

MTD 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

22

MTD 753-05933

Fuel Tank Assembly

Note: (Incl. 23)

$23.99

$

In Stock, only 2 left!

0

23

MTD 753-05289

Fuel Cap

$21.99

$

In Stock, Qty 10

0

24

MTD 753-06693

Impeller Housing

Note: (Incl. 6)

$16.99

$

Usually ships in 3-6 days

0

25

MTD 753-05932

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

26

MTD 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

27

MTD 753-05925

Wavey Washer
(Superseded to 736-04353)

$5.99

$

Usually ships in 3-6 days

0

28

MTD 753-05924

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

29

MTD 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

30

MTD 753-05930

Throttle Trigger

$

$

Not available
