RM-4300 - Echo Backpack Brush Cutter (SN: T85126001001 - T85126999999) Backpack Frame, Harness Parts Diagram

Backpack Brush Cutter

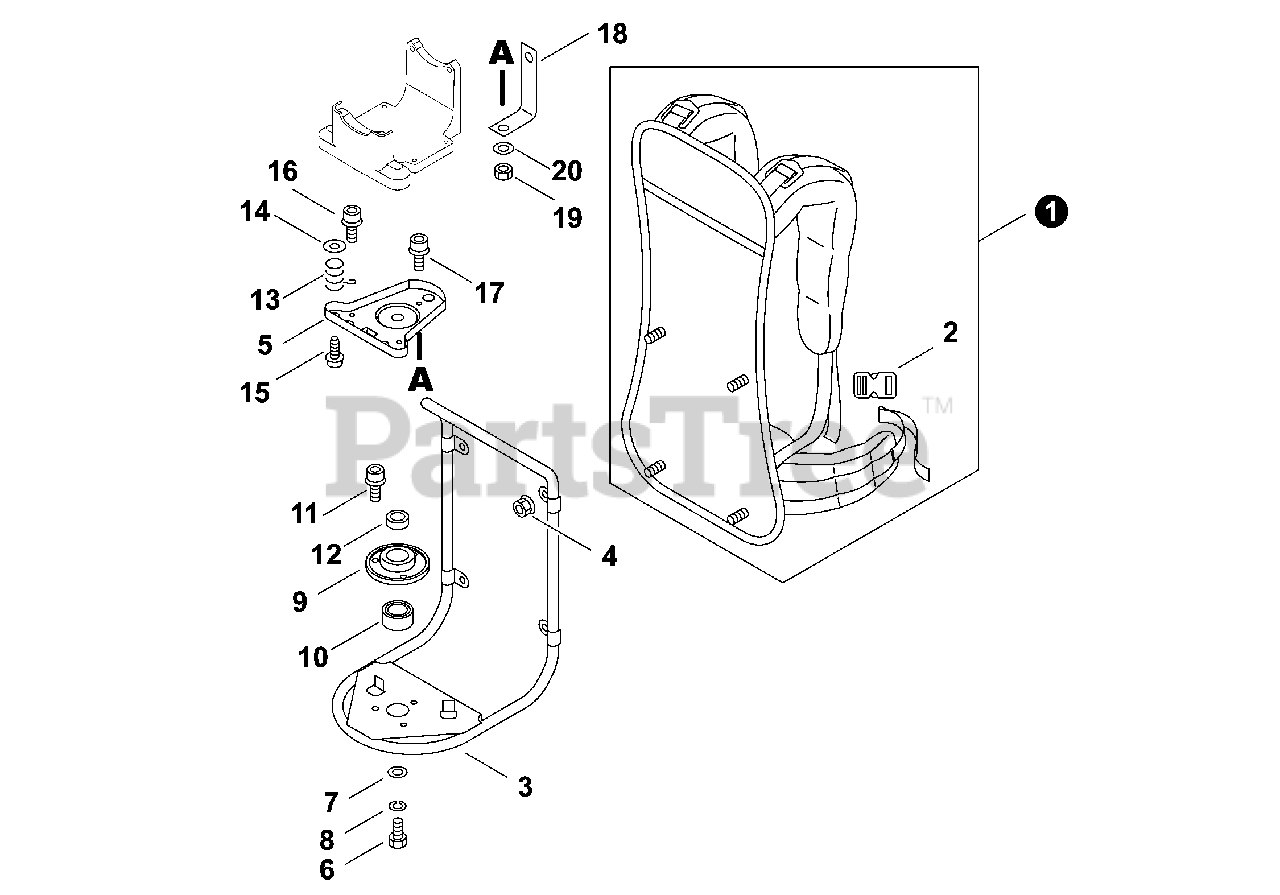

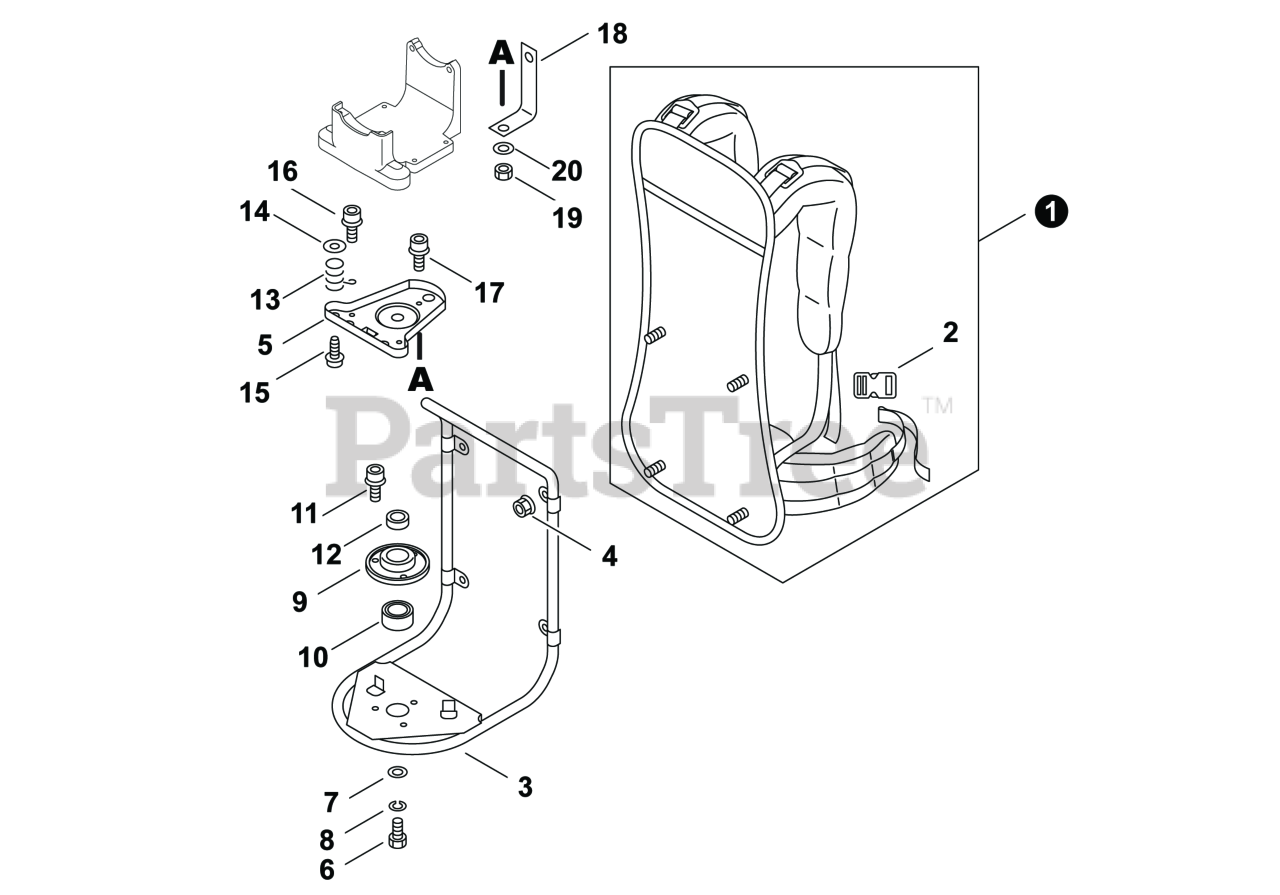

Backpack Frame, Harness Parts Diagram

  • Title

1

Echo C061000043

HARNESS, BACKPACK

Note: Includes Item 2

$173.99

$

Usually ships in 2-4 days

0

2

Echo P022007890

BUCKLE

$4.99

$

Usually ships in 2-4 days

0

3

Echo C620000110

FRAME, BACKPACK
(Superseded to Discontinued)

$

$

Not available

4

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

5

Echo C627000020

PLATE
(Superseded to Discontinued)

$

$

Not available

6

Echo 90010010025

BOLT

$1.49

$

Usually ships in 2-4 days

0

7

Echo 90060000010

WASHER 10.5×18×1.6

$0.99

$

In Stock, Qty 9

0

8

Echo 90060500010

WASHER, SPRING 10

$0.99

$

In Stock, Qty 6

0

9

Echo 10492656230

HOLDER, BEARING
(Superseded to Discontinued)

$

$

Not available

10

Echo 90081406202

BEARING, BALL 6202ZZ

$15.99

$

Usually ships in 2-4 days

0

11

Echo 9112105012

BOLT, FLANGE

$1.49

$

Usually ships in 2-4 days

0

12

Echo 60404412560

COLLAR
(Superseded to Discontinued)

$

$

Not available

13

Echo V450000141

SPRING, COMPRESSION

$6.49

$

Usually ships in 2-4 days

0

14

Echo 17721402830

WASHER 5.2×16×1.0

$0.99

$

In Stock, only 2 left!

0

15

Echo 9114705020

BOLT 5×20

$0.99

$

In Stock, Qty 20+

0

16

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

17

Echo 90010605016

BOLT 5×16

$1.49

$

Usually ships in 2-4 days

0

18

Echo C617000090

STOPPER

$3.99

$

Usually ships in 2-4 days

0

19

Echo 90050200005

NUT 5

$0.99

$

In Stock, Qty 8

0

20

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0
