RM-4300 - Echo Backpack Brush Cutter (SN: T85126001001 - T85126999999) Engine Parts Diagram

Backpack Brush Cutter

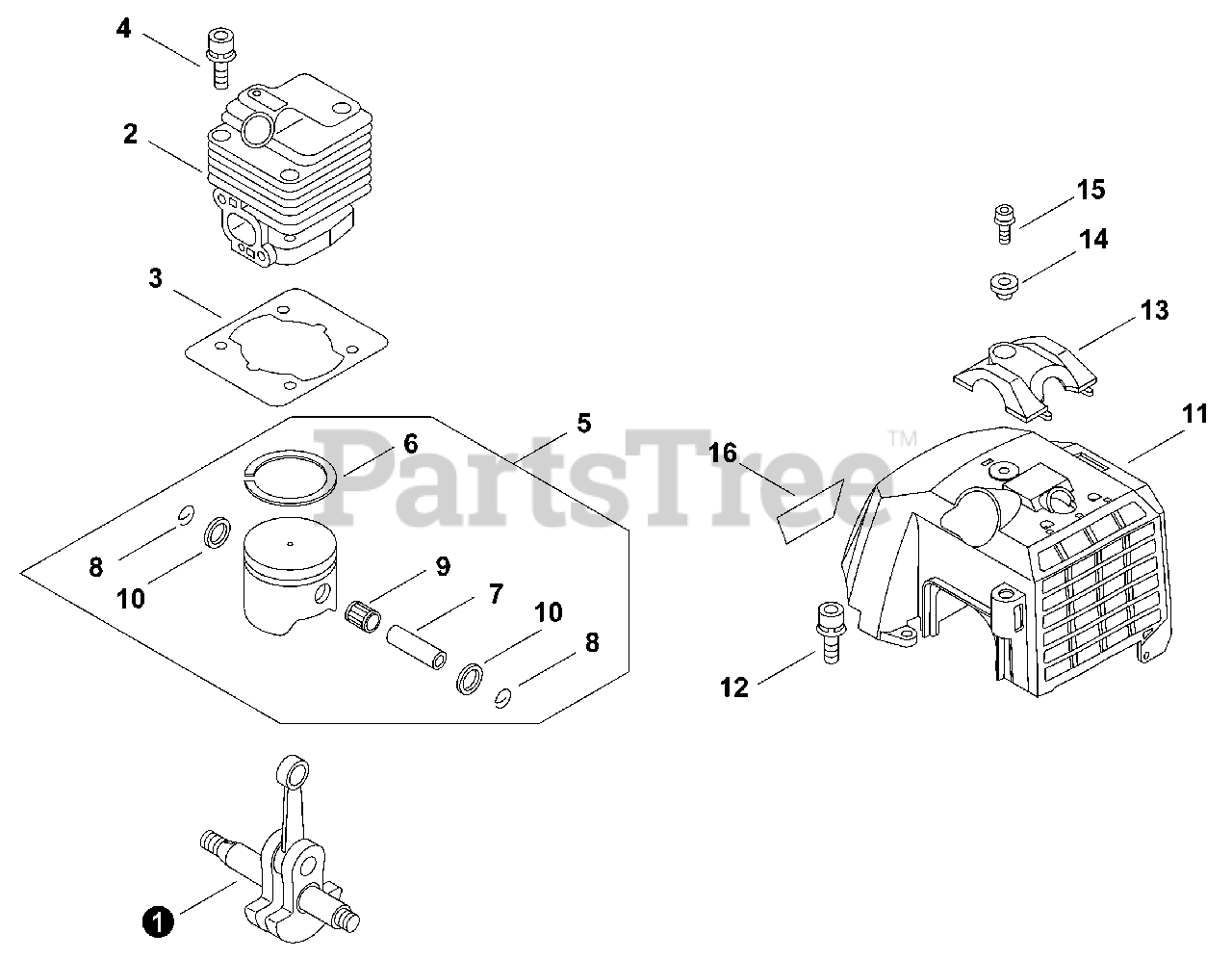

Engine Parts Diagram

  • Title

1

Echo A011000330

CRANKSHAFT ASSY
(Superseded to A011000120)

$241.99

$

In Stock, only 1 left!

0

2

Echo A130000870

CYLINDER

$159.99

$

Usually ships in 2-4 days

0

3

Echo V100000040

GASKET, CYLINDER

$3.99

$

In Stock, only 2 left!

0

4

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo P021014262

PISTON KIT

Note: Includes Items 6-10

$78.99

$

In Stock, only 2 left!

0

6

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 7

0

7

Echo V608000000

PIN, PISTON 10

$6.49

$

Usually ships in 2-4 days

0

8

Echo V580000010

RING, SNAP 10

$0.99

$

Usually ships in 2-4 days

0

9

Echo V555000010

BEARING, NEEDLE 10

$10.99

$

In Stock, Qty 20+

0

10

Echo V307000530

WASHER

$2.49

$

Usually ships in 2-4 days

0

11

Echo A160000242

COVER, ENGINE

$47.99

$

Usually ships in 2-4 days

0

12

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 16

0

13

Echo A162000020

GUARD, TOP

$10.99

$

Usually ships in 2-4 days

0

14

Echo V353000020

COLLAR 5

$1.99

$

In Stock, only 4 left!

0

15

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 5

0

16

Echo X547002870

LABEL - MODEL RM-4300

$3.49

$

Usually ships in 2-4 days

0
