RM-4300 - Echo Backpack Brush Cutter (SN: T85126001001 - T85126999999) Fuel System Parts Diagram

Backpack Brush Cutter

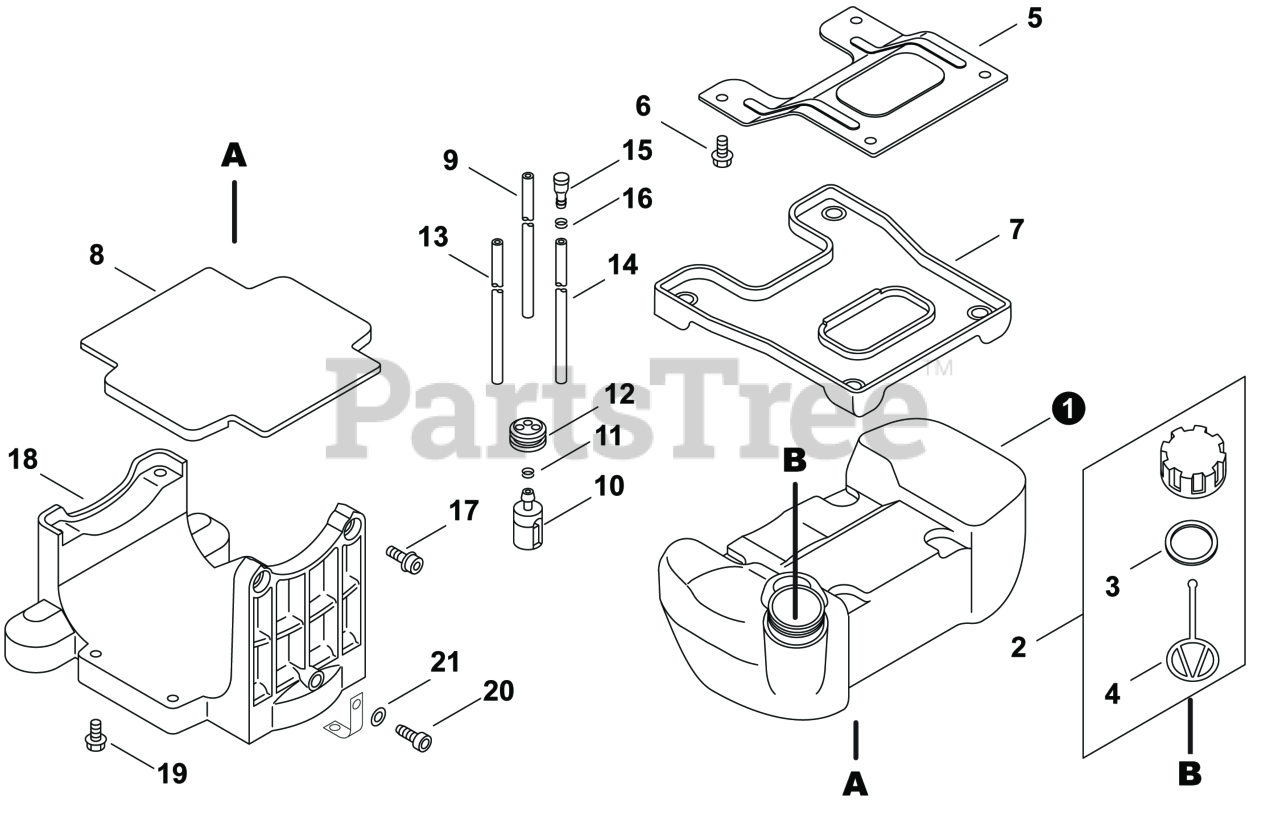

Fuel System Parts Diagram

  • Title

1

Echo A350000081

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

2

Echo P100006640

CAP ASSY, FUEL

Note: Includes Items 3-4

$7.49

$

In Stock, Qty 9

0

3

Echo V107000190

GASKET, FUEL CAP

$1.49

$

In Stock, Qty 12

0

4

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

5

Echo A393000030

BRACKET, FUEL TANK

$11.99

$

Usually ships in 2-4 days

0

6

Echo 90010605012

BOLT 5×12

$1.49

$

In Stock, Qty 20+

0

7

Echo A390000000

CUSHION, UPPER

$13.99

$

Usually ships in 2-4 days

0

8

Echo A390000010

CUSHION, FUEL TANK

$10.99

$

Usually ships in 2-4 days

0

9

Echo 13201035431

PIPE, FUEL 3×6×230

$9.49

$

In Stock, only 1 left!

0

10

Echo A369000440

FILTER, FUEL

$8.49

$

In Stock, Qty 8

0

11

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

12

Echo 13211555931

GROMMET, FUEL

$2.99

$

Usually ships in 2-4 days

0

13

Echo V471000630

PIPE, FUEL 3×6×120 CLEAR
(Superseded to V471003000)

$2.49

$

In Stock, Qty 13

0

14

Echo 13201202961

PIPE, FUEL 3×6×120 BLACK
(Superseded to V471005820)

$1.99

$

In Stock, Qty 10

0

15

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 7

0

16

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

17

Echo 90010605025

BOLT, FLANGE 5X25

$1.49

$

In Stock, Qty 20+

0

18

Echo C632000010

PLATE, MOUNTING
(Superseded to Discontinued)

$

$

Not available

19

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 5

0

20

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, Qty 5

0

21

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0
