RM-4300 - Echo Backpack Brush Cutter (SN: T85126001001 - T85126999999) Gear Case Parts Diagram

Backpack Brush Cutter

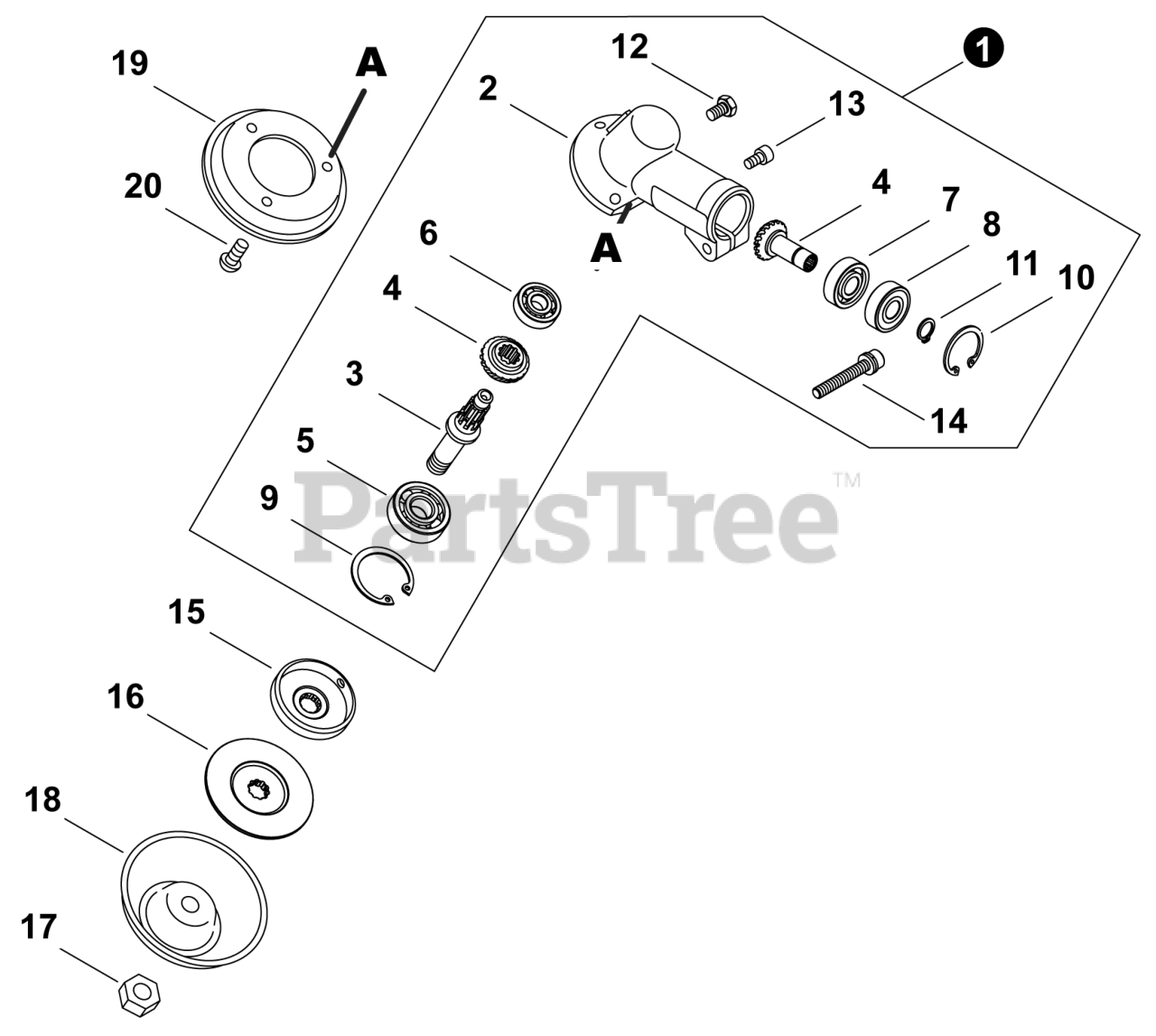

Gear Case Parts Diagram

  • Title

1

Echo P021051150

GEAR CASE ASSY

Note: Includes Items 2-13

$301.99

$

Usually ships in 2-4 days

0

2

Echo P022043290

CASE, GEAR

$61.99

$

Usually ships in 2-4 days

0

3

Echo P022043300

SHAFT, GEAR

$57.99

$

Usually ships in 2-4 days

0

4

Echo P021051130

GEAR SET, BEVEL

$88.99

$

Usually ships in 2-4 days

0

5

Echo P022043330

BEARING, BALL

$17.99

$

Usually ships in 2-4 days

0

6

Echo P022043340

BEARING, BALL

$10.99

$

Usually ships in 2-4 days

0

7

Echo P022043350

BEARING, BALL

$10.99

$

Usually ships in 2-4 days

0

8

Echo P022043360

BEARING, BALL

$10.99

$

Usually ships in 2-4 days

0

9

Echo P022043370

RING, SNAP

$2.49

$

Usually ships in 2-4 days

0

10

Echo P022043380

RING, SNAP

$1.99

$

Usually ships in 2-4 days

0

11

Echo P022043390

RING, SNAP

$1.99

$

Usually ships in 2-4 days

0

12

Echo P022038730

BOLT

$1.99

$

Usually ships in 2-4 days

0

13

Echo P022043400

BOLT

$2.49

$

Usually ships in 2-4 days

0

14

Echo P022043410

BOLT

$2.49

$

Usually ships in 2-4 days

0

15

Echo P022006290

PLATE, ADAPTOR - UPPER

$33.99

$

Usually ships in 2-4 days

0

16

Echo P022037810

PLATE, ADAPTOR - LOWER

$19.99

$

Usually ships in 2-4 days

0

17

Echo 61032052130

NUT, LOCK 10 - NYLON INSERT

$5.99

$

Usually ships in 2-4 days

0

18

Echo P022043440

ADAPTER, SAW

$14.99

$

Usually ships in 2-4 days

0

19

Echo P022043450

RETAINER, LOWER BLADE

$10.99

$

Usually ships in 2-4 days

0

20

Echo P022043460

SCREW

$1.99

$

Usually ships in 2-4 days

0
