RM-4300 - Echo Backpack Brush Cutter (SN: T85126001001 - T85126999999) Gear Case, Shield Parts Diagram

Backpack Brush Cutter

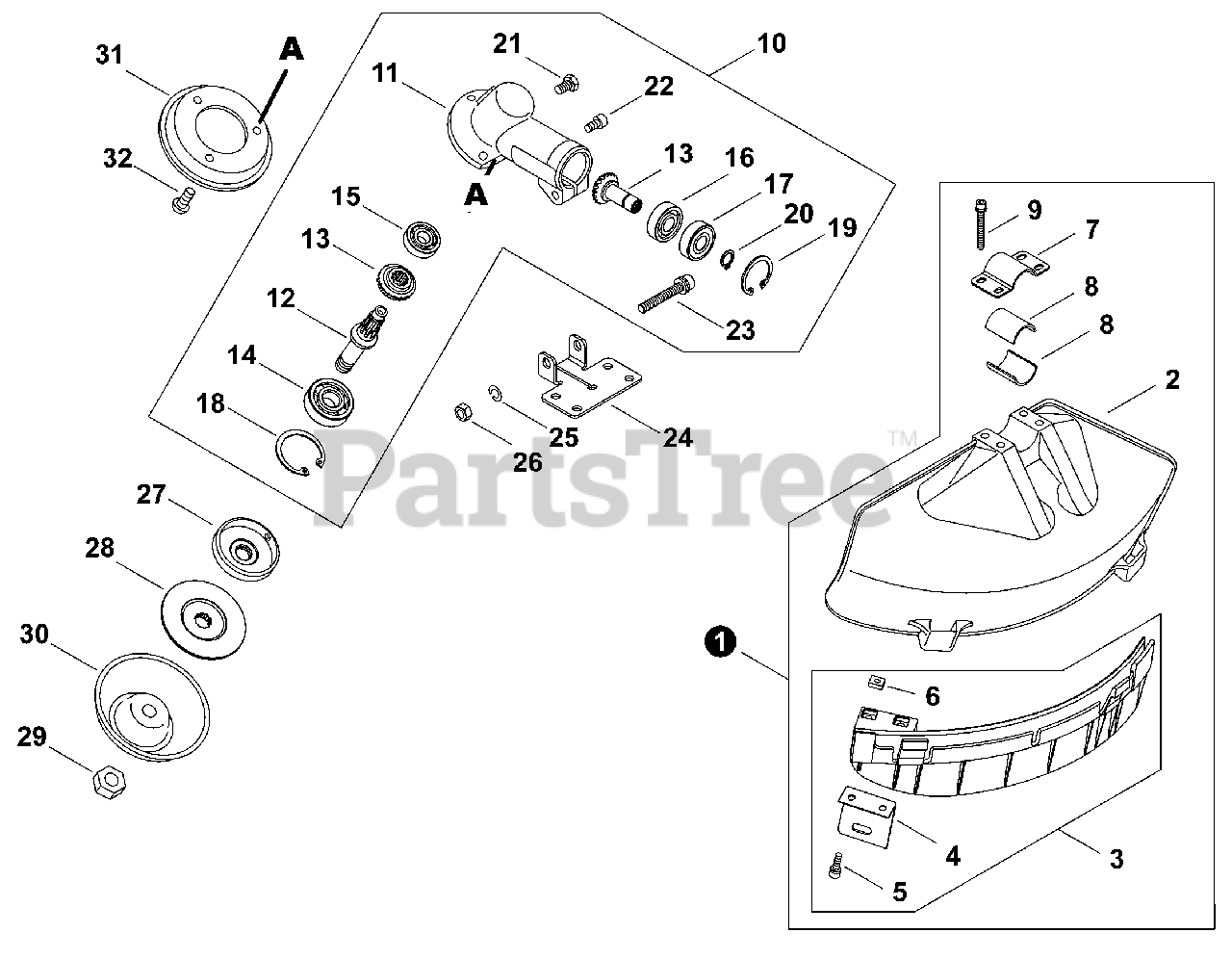

Gear Case, Shield Parts Diagram

  • Title

1

Echo P021028901

DEBRIS SHIELD KIT
(Superseded to P100002370)

Note: Includes Items 2-9

$61.99

$

Usually ships in 2-4 days

0

2

Echo C550000430

SHIELD, DEBRIS PLASTIC

$34.99

$

Usually ships in 2-4 days

0

3

Echo P021028451

DEBRIS SHIELD EXTENSION ASSY
(Superseded to P100002391)

Note: Includes Items 4-6

$31.99

$

In Stock, only 2 left!

0

4

Echo C554000040

CUTTER

$5.99

$

In Stock, only 2 left!

0

5

Echo 9112205016

BOLT 5×16

$1.49

$

In Stock, Qty 13

0

6

Echo V263000130

NUT M5

$1.49

$

In Stock, only 2 left!

0

7

Echo C551000060

CLAMP, UPPER

$1.99

$

In Stock, Qty 6

0

8

Echo V363000160

SPACER 26

$1.99

$

In Stock, Qty 12

0

9

Echo V203000611

BOLT M5×45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 20+

0

10

Echo P021051150

GEAR CASE ASSY

Note: Includes Items 11-23

$279.99

$

Usually ships in 2-4 days

0

11

Echo P022043290

CASE, GEAR

$57.99

$

Usually ships in 2-4 days

0

12

Echo P022043300

SHAFT, GEAR

$53.99

$

Usually ships in 2-4 days

0

13

Echo P021051130

GEAR SET, BEVEL

$82.99

$

Usually ships in 2-4 days

0

14

Echo P022043330

BEARING, BALL

$16.99

$

Usually ships in 2-4 days

0

15

Echo P022043340

BEARING, BALL

$9.49

$

Usually ships in 2-4 days

0

16

Echo P022043350

BEARING, BALL

$9.49

$

Usually ships in 2-4 days

0

17

Echo P022043360

BEARING, BALL

$9.49

$

Usually ships in 2-4 days

0

18

Echo P022043370

RING, SNAP

$1.99

$

Usually ships in 2-4 days

0

19

Echo P022043380

RING, SNAP

$1.99

$

Usually ships in 2-4 days

0

20

Echo P022043390

RING, SNAP

$1.99

$

Usually ships in 2-4 days

0

21

Echo P022038730

BOLT

$1.99

$

Usually ships in 2-4 days

0

22

Echo P022043400

BOLT

$2.49

$

Usually ships in 2-4 days

0

23

Echo P022043410

BOLT

$2.49

$

Usually ships in 2-4 days

0

24

Echo C551000110

CLAMP, LOWER

$4.49

$

In Stock, Qty 6

0

25

Echo P022043420

WASHER, SPRING

$1.99

$

Usually ships in 2-4 days

0

26

Echo P022043430

NUT

$1.99

$

Usually ships in 2-4 days

0

27

Echo P022006290

PLATE, ADAPTOR - UPPER

$31.99

$

Usually ships in 2-4 days

0

28

Echo P022037810

PLATE, ADAPTOR - LOWER

$18.99

$

Usually ships in 2-4 days

0

29

Echo 61032052130

NUT, LOCK - NYLON INSERT

$5.49

$

Usually ships in 2-4 days

0

30

Echo P022043440

ADAPTER, SAW

$13.99

$

Usually ships in 2-4 days

0

31

Echo P022043450

RETAINER, LOWER BLADE

$9.99

$

Usually ships in 2-4 days

0

32

Echo P022043460

SCREW

$1.99

$

Usually ships in 2-4 days

0
